Figure 6-8 Detaching The Processor Fan Power Supply Cable From The Board; Figure 6-9 Removing A Processor - Silicon Graphics 320 Owner's Manual

74 Chapter 6
5. If the processor has a fan attached to it, disconnect the fan power
supply cable from the associated connector on the system board,
as shown in Figure 6-8.

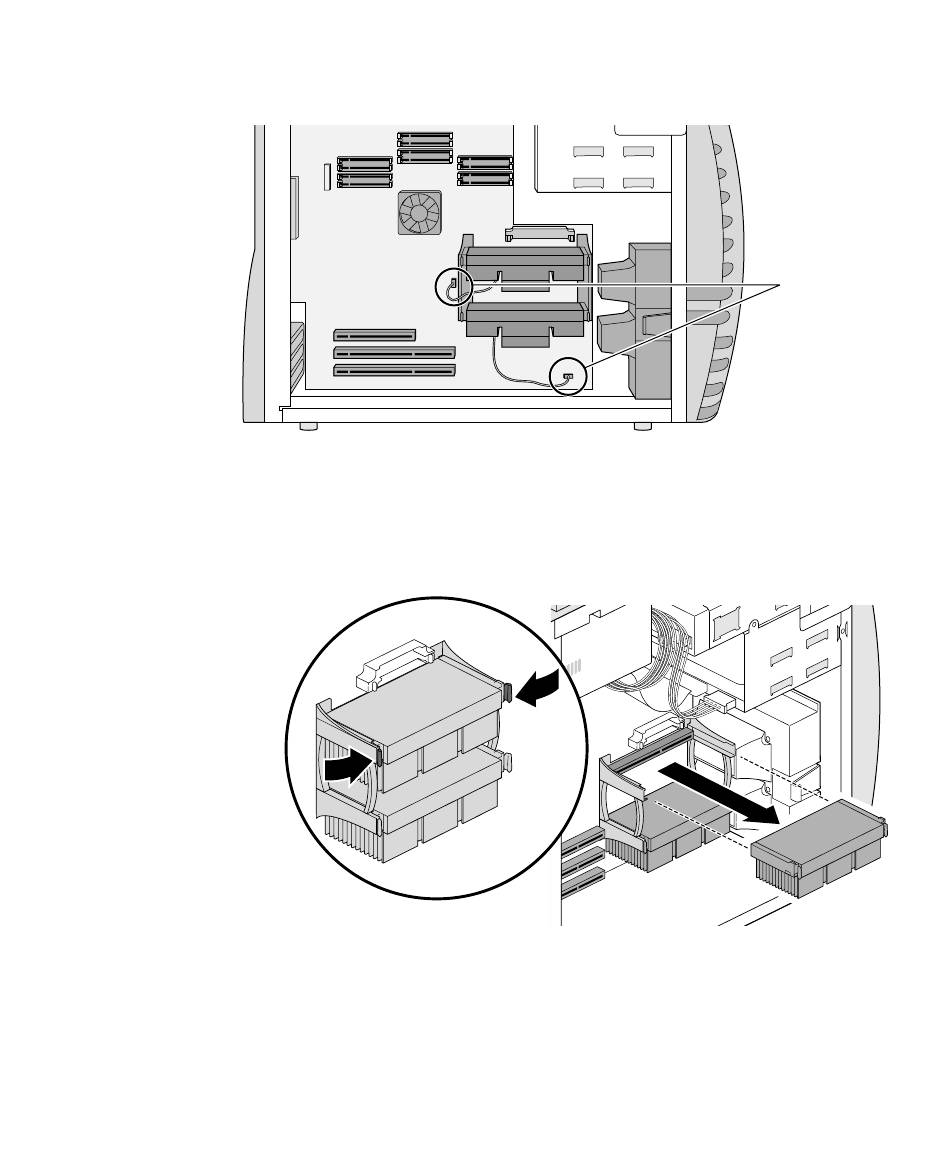

Figure 6-8 Detaching the Processor Fan Power Supply Cable from the
Board
6. Push the latches on the sides of the processor inward and pull the
processor out of the system, as shown in Figure 6-9.
Removing a Processor
Figure 6-9
Processor fan
power cables
