108 Appendix B

Serial Port Pinouts

1
6
2
7
3
8
4
9
5

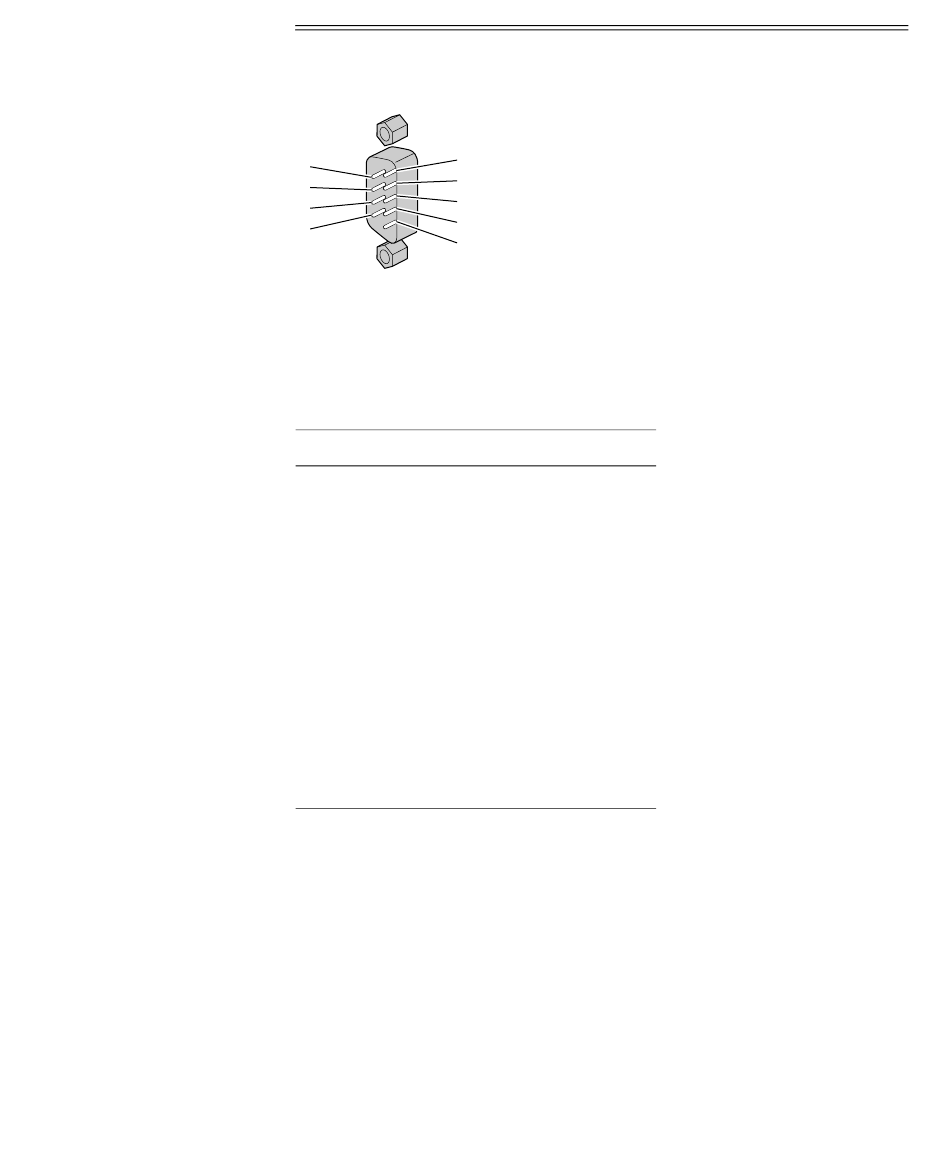

Figure B-5 Serial Port Pinouts
Table B-6 Serial Port Pinouts
Pin Assignment Description
1 DCD Data Carrier Detect
2 RD Receive Data
3 TD Transmit Data
4 DTR Data Terminal Ready
5 SG Signal Ground
6 DSR Data Set Ready
7 RTS Request to Send
8 CTS Clear to Send
9 RI Ring Indicator
