Monitor Port Pinouts

6
11
1
.
12
2
.
13
3
4
14 .
5
15
10
Monitor Port Pinouts

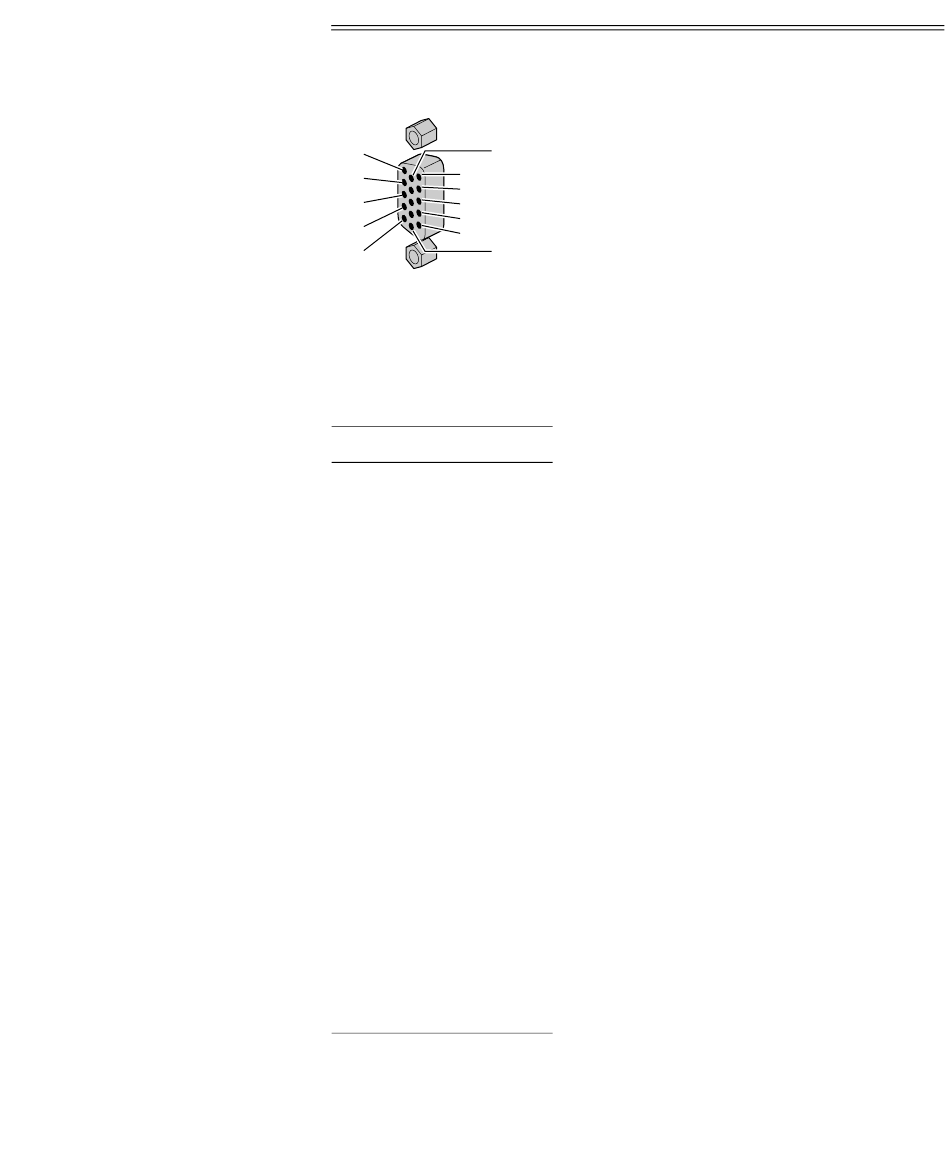

Figure B-6
Table B-7 Monitor Port Pinouts
Pin Assignment
1 Red
2 Green
3 Blue
4 Ground
5 Ground
6 Red Return
7 Green Return
8 Blue Return
9 No Connect
10 Ground
11 Ground
12 IIC Data
13 Horizontal Sync
14 Vertical Sync
15 IIC Clock
Port Information 109
