Replacing the Brake Cable

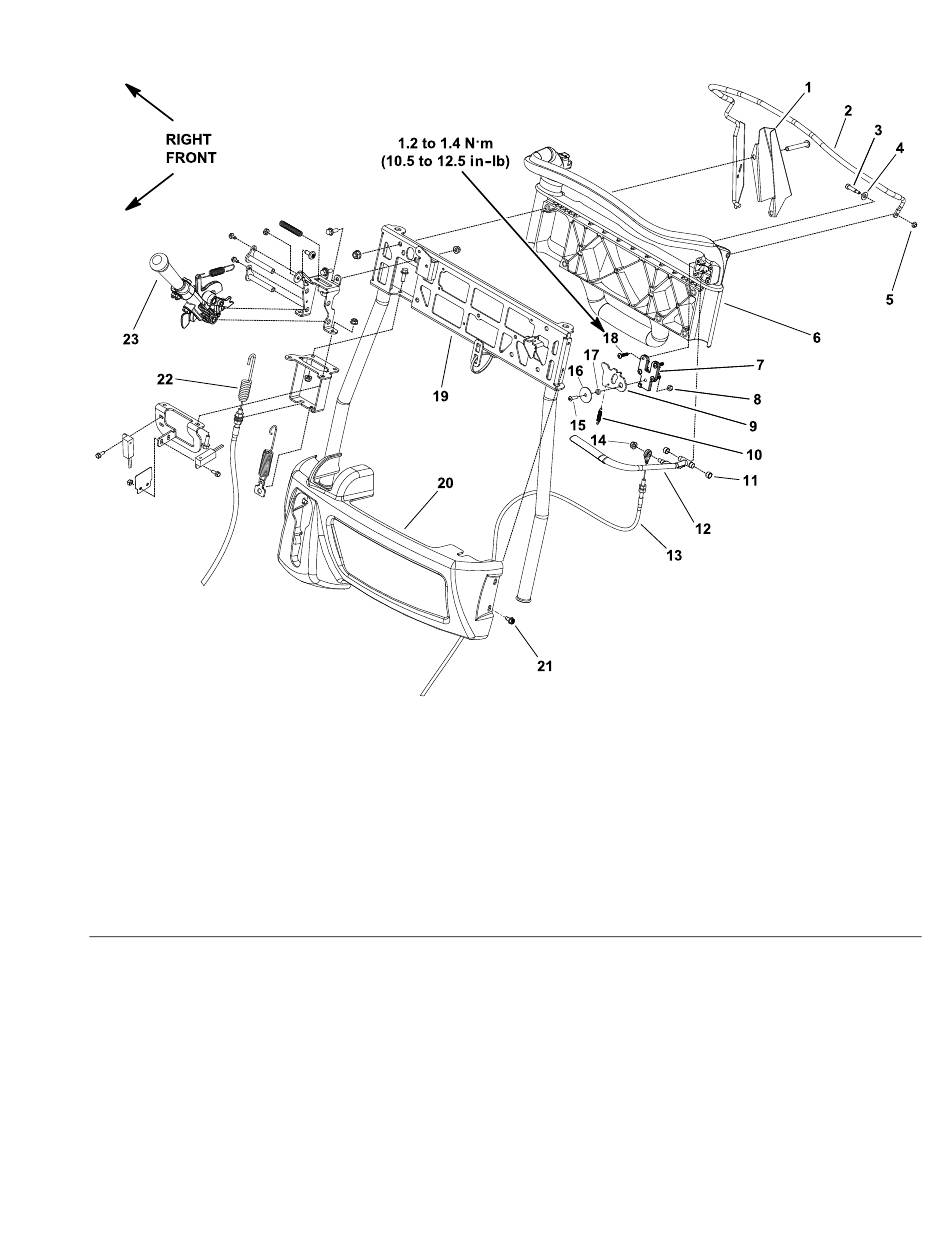

g198894
1. Bail lever cover
2. Lift bail assembly
3. Shoulder screw
4. Flat washer
5. Locknut
6. Upper handle
7. Brake lever keeper
8. Locknut
Removing the Brake Cable
Greensmaster ® eFlex 1800, 2100 and 2120
12189SL Rev E
9. Brake latch
10. Extension spring
11. Bushing (2 each)
12. Brake lever
13. Brake cable
14. Flange nut
15. Button-head screw
16. Washer
1. Park the machine on a level surface, turn the key switch to the O
and remove the key from the key switch. Disconnect the battery pack; refer
to Connecting the Lithium Battery Pack (page
2. Remove the brake cable from the brake lever shaft on the drum drive housing
(Figure 136) as follows:
A. Loosen the front cable jam nut that secures the cable to the casting slot
on the drum drive housing. Separate the cable from the slot.
Figure 135
17.
18.
19.
20.
21.
22.
23.
Page 6–7
Spacer
Screw (4 each)
Lower handle
Console cover
Washer-head screw (4 each)
Reel clutch cable
Traction lever assembly
FF
6–3).
Chassis and Controls: Service and Repairs
position,
