Introduction

1.3 Electrical Wiring - Control Cables

3-phase
power
input
+10 V DC
0 to +10 V DC
0/4-20 mA
0 to +10 V DC
0/4-20 mA

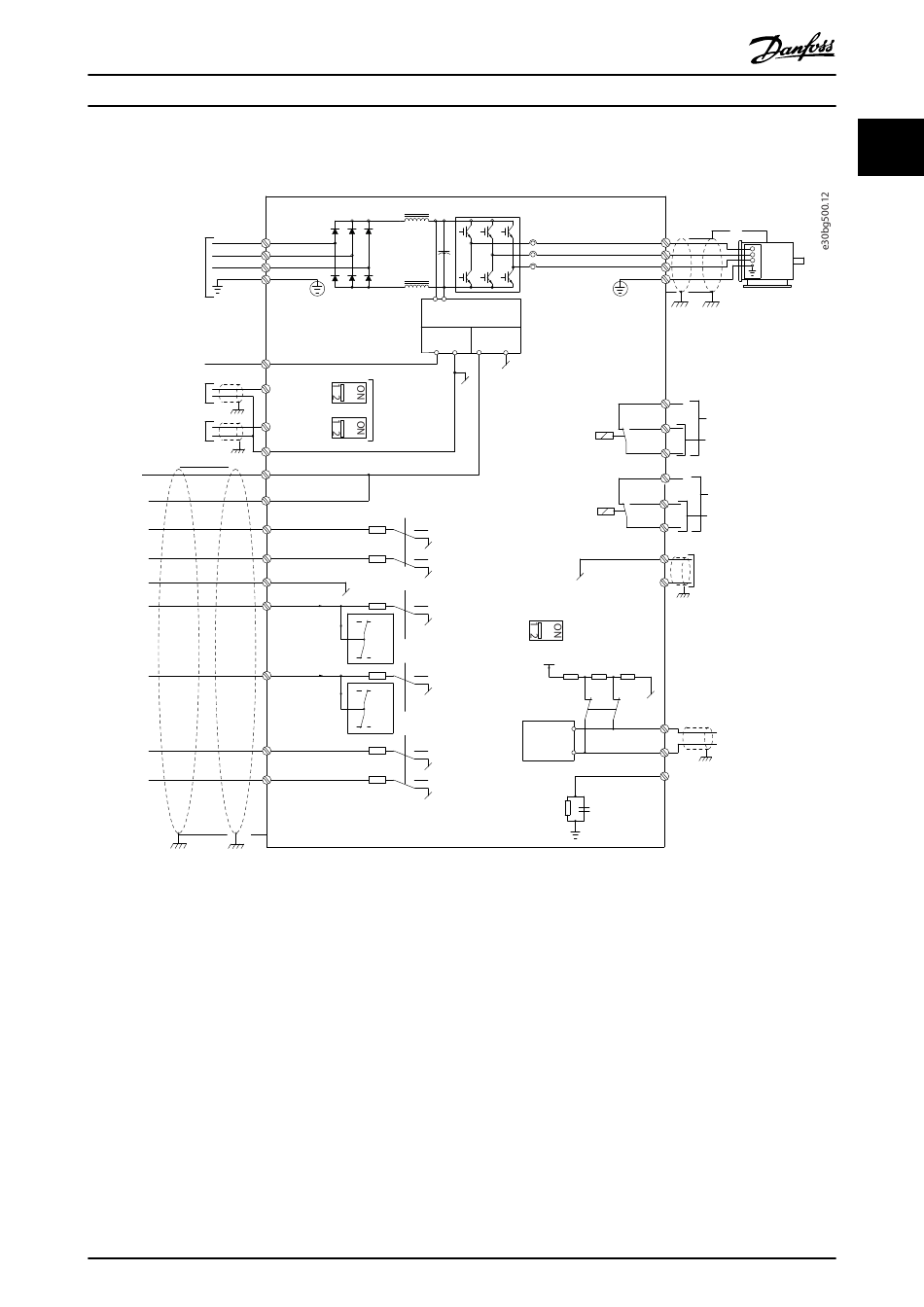

Illustration 1.2 Basic Wiring Schematic Drawing
A=Analog, D=Digital
Very long control cables and analog signals may in rare cases, and depending on installation, result in 50/60 Hz ground
loops due to noise from mains supply cables.
If 50/60 Hz ground loops occur, consider breaking the shield or insert a 100 nF capacitor between shield and enclosure.
To avoid ground currents from both groups to affect other groups, connect the digital and analog inputs and outputs
separately to the common inputs (terminals 20, 55, and 39) of the frequency converter. For example, switching on the digital
input may disturb the analog input signal.
MG06J202
Programming Guide
91 (L1)
92 (L2)
93 (L3)
95
PE
Switch mode
power supply
10 V DC
15 mA
50 (+10 V OUT)
+ -
A53 U-I (S201)
53 (A IN)
ON=0/4-20 mA
A54 U-I (S202)
OFF=0 to ±10 V
54 (A IN)
55 (COM A IN)
12 (+24 V OUT)
13 (+24 V OUT)
P 5-00
24 V (NPN)
18 (D IN)
0 V (PNP)
24 V (NPN)
19 (D IN)
0 V (PNP)
20 (COM D IN)
24 V (NPN)
27 (D IN/OUT)
0 V (PNP)
24V
0V
24 V (NPN)
29
(D IN/OUT)
0 V (PNP)
24V
0V
24 V (NPN)
32 (D IN)
0 V (PNP)
24 V (NPN)
33 (D IN)
0 V (PNP)
Danfoss A/S © 03/2019 All rights reserved.
(U) 96
(V) 97
(W) 98
(PE) 99
24 V DC
200 mA
+ -
Relay1
Relay2
(COM A OUT) 39
(A OUT) 42
S801/Bus Term.
OFF-ON
ON=Terminated
OFF=Open
5V
S801
RS485
(P RS485) 68
interface
(N RS485) 69
(COM RS485) 61
Motor
03
240 V AC, 2A
02
400 V AC, 2A
01
06
240 V AC, 2A
05
400 V AC, 2A
04
Analog output
0/4-20 mA
0V
RS485
(PNP) = Source
(NPN) = Sink
1 1
