Parameter Descriptions
0-20 Display Line 1.1 Small
Option: Function:
[2137] Ext. 2 Reference
[Unit]
[2138] Ext. 2 Feedback
[Unit]
[2139] Ext. 2 Output [%]
[2157] Ext. 3 Reference
[Unit]
[2158] Ext. 3 Feedback
[Unit]
[2159] Ext. 3 Output [%]
0-21 Display Line 1.2 Small
Select a variable for display in line 1, middle position. The
options are the same as those listed for parameter 0-20 Display
Line 1.1 Small.
0-22 Display Line 1.3 Small
Select a variable for display in line 1, right position. The options
are the same as those listed for parameter 0-20 Display Line 1.1
Small.
0-23 Display Line 2 Large
Select a variable for display in line 2. The options are the same
as those listed for parameter 0-20 Display Line 1.1 Small.
0-24 Display Line 3 Large
Select a variable for display in line 3. The options are the same
as those listed for parameter 0-20 Display Line 1.1 Small.
0-25 My Personal Menu
Range: Function:
Size [0 - 9999] Define up to 50 parameters to
related appear in the Q1 Personal Menu,
*
accessible via the [Quick Menu] key
on the LCP. The parameters are
shown in the Q1 Personal Menu in
the order they are programmed
into this array parameter. Delete
parameters by setting the value to
0000.
For example, this can be used to
provide quick, simple access to just
1 or up to 50 parameters, which
require changing on a regular basis
(for example, for plant maintenance
reasons) or by an OEM to enable
simple commissioning of their
equipment.
MG06J202
Programming Guide

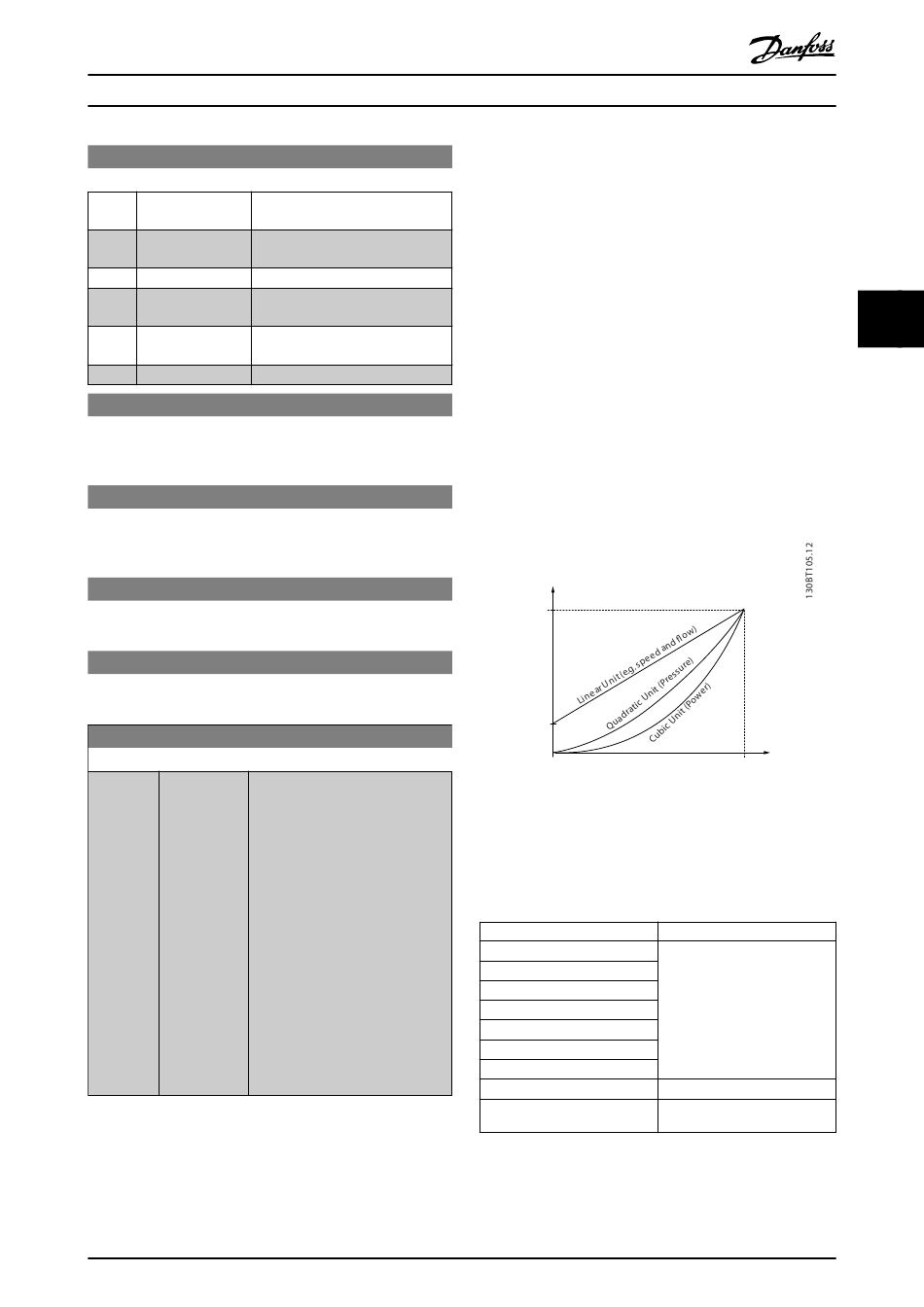

4.1.4 0-3* LCP Custom Readout
It is possible to customize the display elements for various
purposes:
•
•
Custom readout
The calculated value to be shown is based on the settings
in:
•
•
•
•
•
•
Custom Readout (Value)
P 16-09
Custom Readout
Unit P 0-30
Max value
P 0-32
Min value
Linear
units only
P 0-31
Illustration 4.4 Custom Readout
The relation depends on the type of unit selected in
parameter 0-30 Custom Readout Unit:
Unit type
Dimensionless
Speed
Flow, volume
Flow, mass
Velocity
Length
Temperature
Pressure
Power
Table 4.2 Speed Relations for Different Unit Types
Danfoss A/S © 03/2019 All rights reserved.
Custom readout. Value proportional to speed
(linear, squared, or cubed depending on unit
selected in parameter 0-30 Custom Readout Unit).
Display text. Text string stored in a parameter.
Parameter 0-30 Custom Readout Unit.
Parameter 0-31 Custom Readout Min Value (linear
only).
Parameter 0-32 Custom Readout Max Value.
Parameter 4-13 Motor Speed High Limit [RPM].
Parameter 4-14 Motor Speed High Limit [Hz].
Actual speed.
0
Speed relation
Linear
Quadratic
Cubic
4
Motor Speed
Motor Speed
High limit
P 4-13 (RPM)
P 4-14 (Hz)
