How to Programme

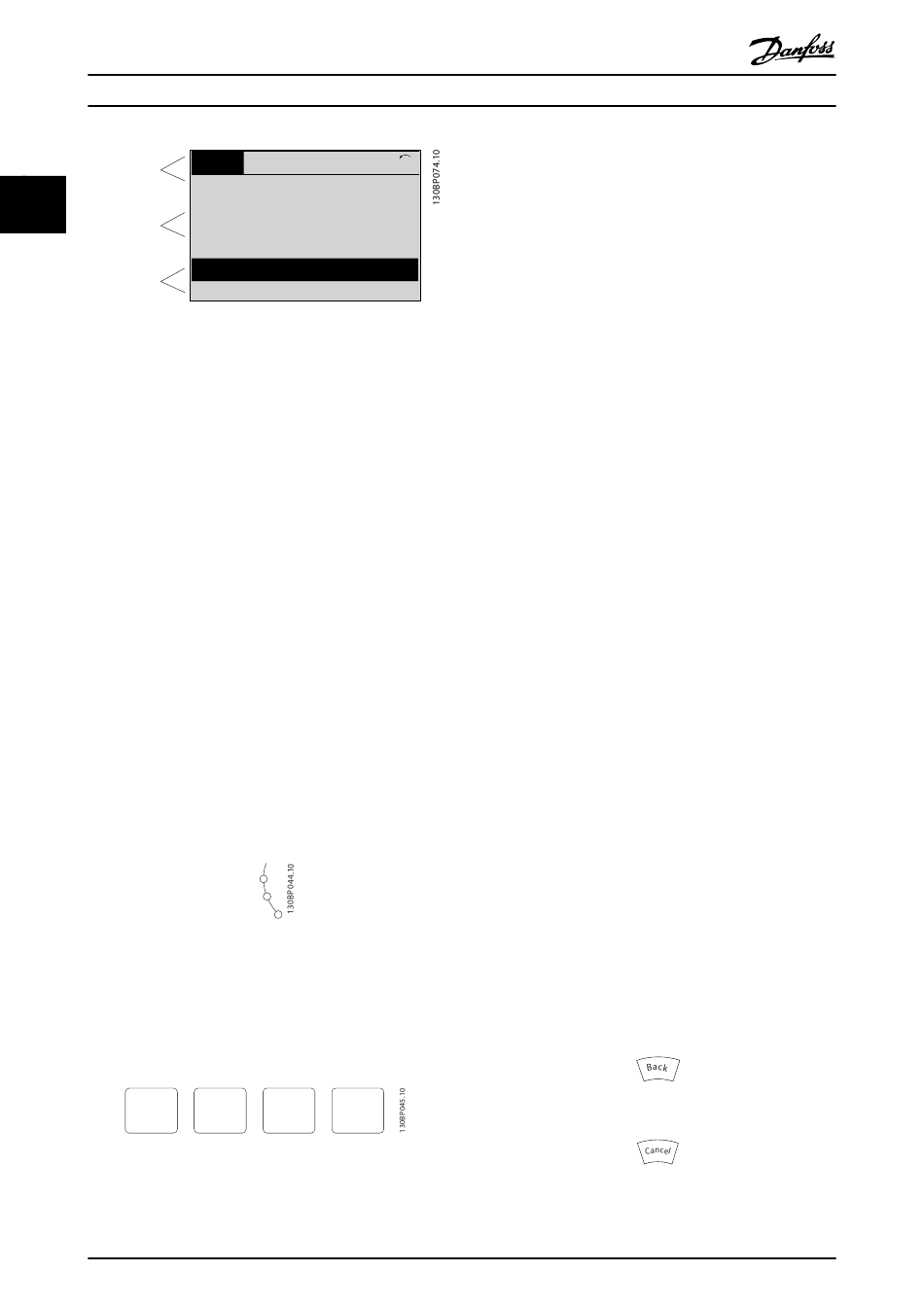

Top section
2 2
Middle section
Bottom section
The Active Set-up (selected as the Active Set-up in 0-10 Active
Set-up) is shown. When programming another Set-up than
the Active Set-up, the number of the programmed Set-up
appears to the right.
Display Contrast Adjustment
Press [status] and [
Press [status] and [
Most parameter set-ups can be changed immediately via the
LCP, unless a password has been created via 0-60 Main Menu
Password or via 0-65 Quick Menu Password.
Indicator lights (LEDs)
If certain threshold values are exceeded, the alarm and/or
warning LED lights up. A status and alarm text appear on the
LCP.
The ON LED is activated when the frequency converter
receives mains voltage or via a DC bus terminal or 24V
external supply. At the same time, the back light is on.
•
Green LED/On: Control section is working.
•
Yellow LED/Warn.: Indicates a warning.
•
Flashing Red LED/Alarm: Indicates an alarm.
LCP Keys
The control keys are divided into functions. The keys below
the display and indicator lamps are used for parameter Set-
up, including choice of display indication during normal
operation.
Status
12
FC 300 Programming Guide
Status
43 RPM 5.44 A 25.3kW
1.4 Hz
2.9%
! Pwr.card temp (W29)
Auto Remote Running
▲
] for darker display
▼
] for brighter display
On
Warn.
Alarm
Quick Main Alarm
Menu Menu Log
MG.33.MB.02 - VLT
[Status] indicates the status of the frequency converter and/
! 1(1)
or the motor. You can choose between 3 different readouts
by pressing the [Status] key
5 line readouts, 4 line readouts or Smart Logic Control.
Use [Status] for selecting the mode of display or for changing
back to Display mode from either the Quick Menu mode, the
Main Menu mode or Alarm mode. Also use the [Status] key to
toggle single or double read-out mode.
[Quick Menu] allows quick access to different Quick Menus
such as
•
My Personal Menu
•
Quick Set-up
•
Changes Made
•
Loggings
Use [Quick Menu] for programming the parameters
belonging to the Quick Menu. It is possible to switch directly
between Quick Menu mode and Main Menu mode.
[Main Menu] is used for programming all parameters.
It is possible to switch directly between Main Menu mode
and Quick Menu mode.
Parameter shortcut can be carried out by pressing down the
[Main Menu] key for 3 seconds. The parameter shortcut
allows direct access to any parameter.
[Alarm Log] displays an Alarm list of the five latest alarms
(numbered A1-A5). To obtain additional details about an
alarm, use the arrow keys to manoeuvre to the alarm
number and press [OK]. You will now receive information
about the condition of your frequency converter right before
entering the alarm mode.
[Back] takes you to the previous step or layer in the
navigation structure.
[Cancel] annuls your last change or command as long as the
display has not been changed.
[Info] supplies information about a command, parameter, or
function in any display window. [Info] provides detailed
information whenever help is needed.
Exit info mode by pressing either [Info], [Back], or [Cancel].
®
