Danfoss VLT AutomationDrive FC 300 Programming Manual page 87

Parameter Descriptions
3.7.7 5-7* 24 V Encoder Input
Connect the 24 V encoder to terminal 12 (24V DC supply),
terminal 32 (Channel A), terminal 33 (Channel B), and
terminal 20 (GND). The digital inputs 32/33 are active for
3 3 encoder inputs when 24V encoder is selected in 1-02 Flux
Motor Feedback Source and 7-00 Speed PID Feedback Source.
The encoder used is a dual channel (A and B) 24V type. Max
input frequency: 110kHz.

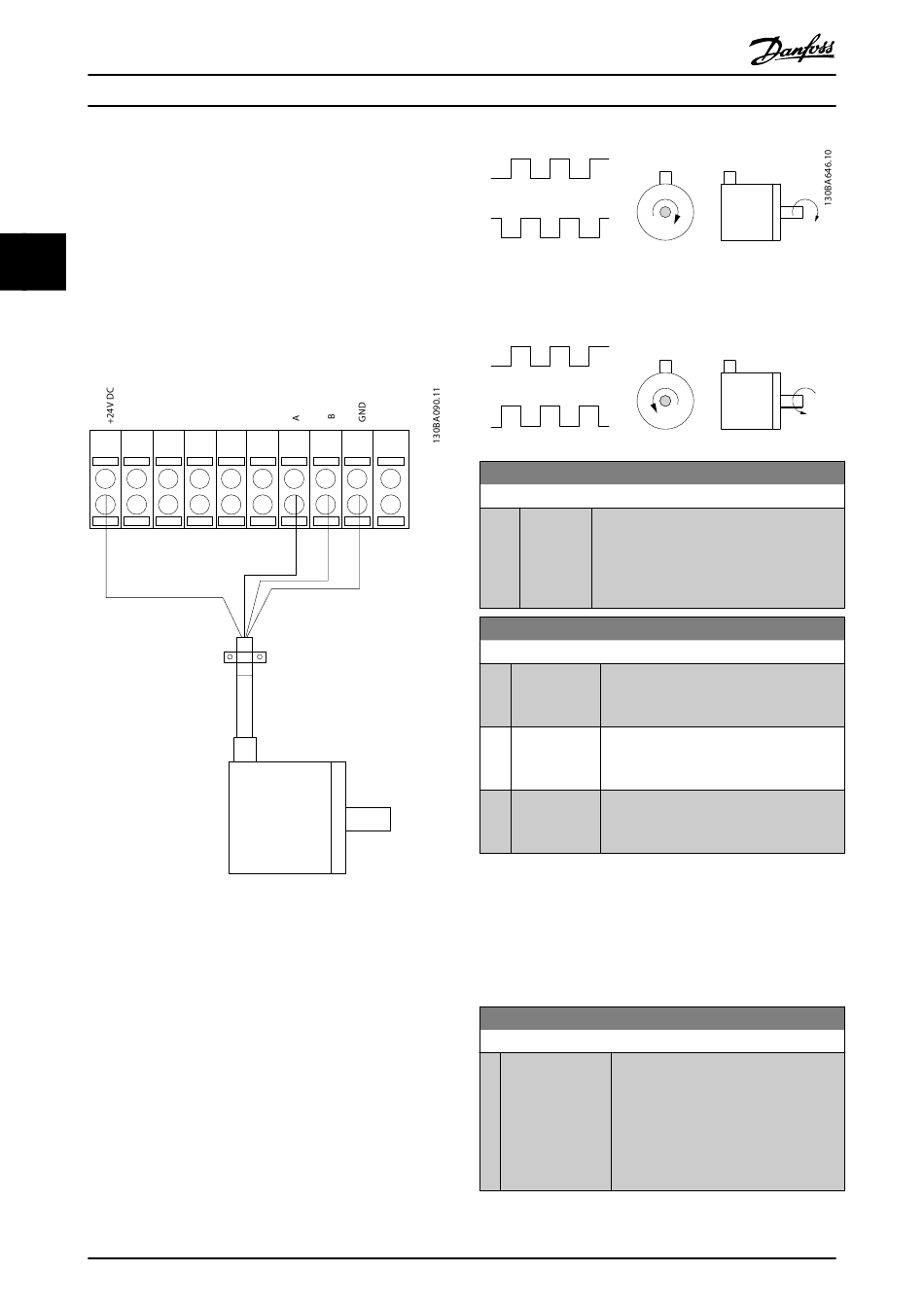

Encoder Connection to the frequency converter
24V incremental encoder. Max. cable length 5m.
12 13 18
86
FC 300 Programming Guide
19 27 29 32 33 20
24V or 10-30V encoder
MG.33.MB.02 - VLT
A
B
A
B
37
5-70 Term 32/33 Pulses per Revolution
Range:
1024 [1 - 4096 ] Set the encoder pulses per revolution on the
*
5-71 Term 32/33 Encoder Direction
Option:
[0] Clockwise
*
[1] Counter
clockwise
This parameter cannot be adjusted while the motor is
running.
3.7.8 5-9* Bus Controlled
This parameter group selects digital and relay outputs via a
fieldbus setting.
5-90 Digital & Relay Bus Control
Range:
0 [0 - 2147483647 ] This parameter holds the state of the
*
®
is a registered Danfoss trademark
CW
CCW
Function:
motor shaft. Read the correct value from the
encoder.
This parameter cannot be adjusted while the
motor is running.
Function:
Change the detected encoder rotation
direction without changing the wiring to the
encoder.
Sets channel A 90° (electrical degrees)
behind channel B upon clockwise rotation of
the encoder shaft.
Sets channel A 90° (electrical degrees) ahead
of channel B upon clockwise rotation of the
encoder shaft.
Function:
digital outputs and relays that is controlled
by bus.
A logical '1' indicates that the output is
high or active.
A logical '0' indicates that the output is
low or inactive.
