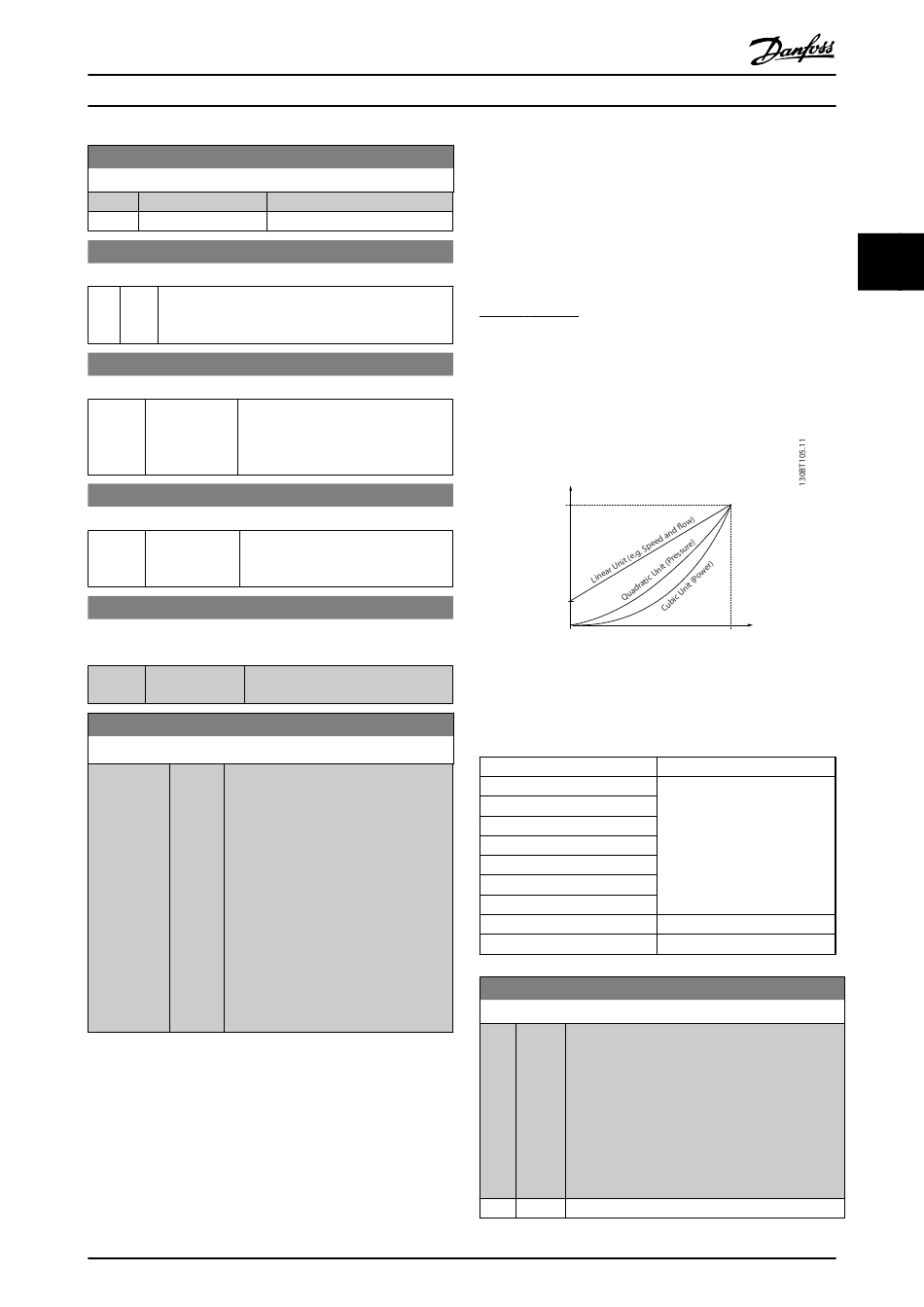

Parameter Descriptions
0-20 Display Line 1.1 Small
Option:
[9926] HS Temp. (PC7)
[9927] HS Temp. (PC8)
0-21 Display Line 1.2 Small
Option: Function:
[0] None Select a variable for display in line 1, middle position.
*
The options are the same as listed for 0-20 Display Line
1.1 Small.
0-22 Display Line 1.3 Small
Option: Function:
[30120] Mains Current Select a variable for display in line 1,
*
[A] right position. The options are the
same as listed for 0-20 Display Line 1.1
Small.
0-23 Display Line 2 Large
Option: Function:
[30100] Output Current Select a variable for display in line 2.
*
[A] The options are the same as listed for
0-20 Display Line 1.1 Small.
0-24 Display Line 3 Large
Select a variable for display in line 3.
Option: Function:
[30121] Mains Frequency The options are the same as those
*
listed in 0-20 Display Line 1.1 Small.
0-25 My Personal Menu
Range: Function:
Application [0 - Define up to 50 parameters to appear in
dependent 9999 ] the Q1 Personal Menu, accessible via the
*
[Quick Menu] key on the LCP. The
parameters will be displayed in the Q1
Personal Menu in the order they are
programmed into this array parameter.
Delete parameters by setting the value to
'0000'.
For example, this can be used to provide
quick, simple access to just one or up to
50 parameters which require changing on
a regular basis (e.g. for plant maintenance
reasons) or by an OEM to enable simple
commissioning of their equipment.
FC 300 Programming Guide
Function:
®
MG.33.MB.02 - VLT is a registered Danfoss trademark
3.2.4 0-3* LCP Custom Readout
It is possible to customize the display elements for various
purposes: *Custom Readout. Value proportional to speed
(Linear, squared or cubed depending on unit selected in
0-30 Custom Readout Unit) *Display Text. Text string stored in
a parameter.
Custom Readout
The calculated value to be displayed is based on settings in
0-30 Custom Readout Unit, 0-31 Custom Readout Min Value
(linear only), 0-32 Custom Readout Max Value, 4-13 Motor
Speed High Limit [RPM], 4-14 Motor Speed High Limit [Hz] and
actual speed.
Custom Readout (Value)
P 16-09
Custom Readout
Unit P 0-30
Max value
P 0-32
Min value
Liniar
units only
P 0-31
0
The relation will depend on the type of unit selected in
0-30 Custom Readout Unit:
Unit Type
Dimensionless
Speed
Flow, volume
Flow, mass
Velocity
Length
Temperature
Pressure
Power
0-30 Unit for User-defined Readout
Option: Function:
It is possible to program a value to be shown in the
display of the LCP. The value will have a linear,
squared or cubed relation to speed. This relation
will depend on the unit selected (see table above).
The actual calculated value can be read in
16-09 Custom Readout, and/or shown in the display
be selecting Custom Readout [16-09] in
0-20 Display Line 1.1 Small to 0-24 Display Line 3
Large.
[0] None
*
Motor Speed
Motor Speed
High limit
P 4-13 (RPM)
P 4-14 (Hz)
Speed Relation
Linear
Quadratic
Cubic
29
3 3
