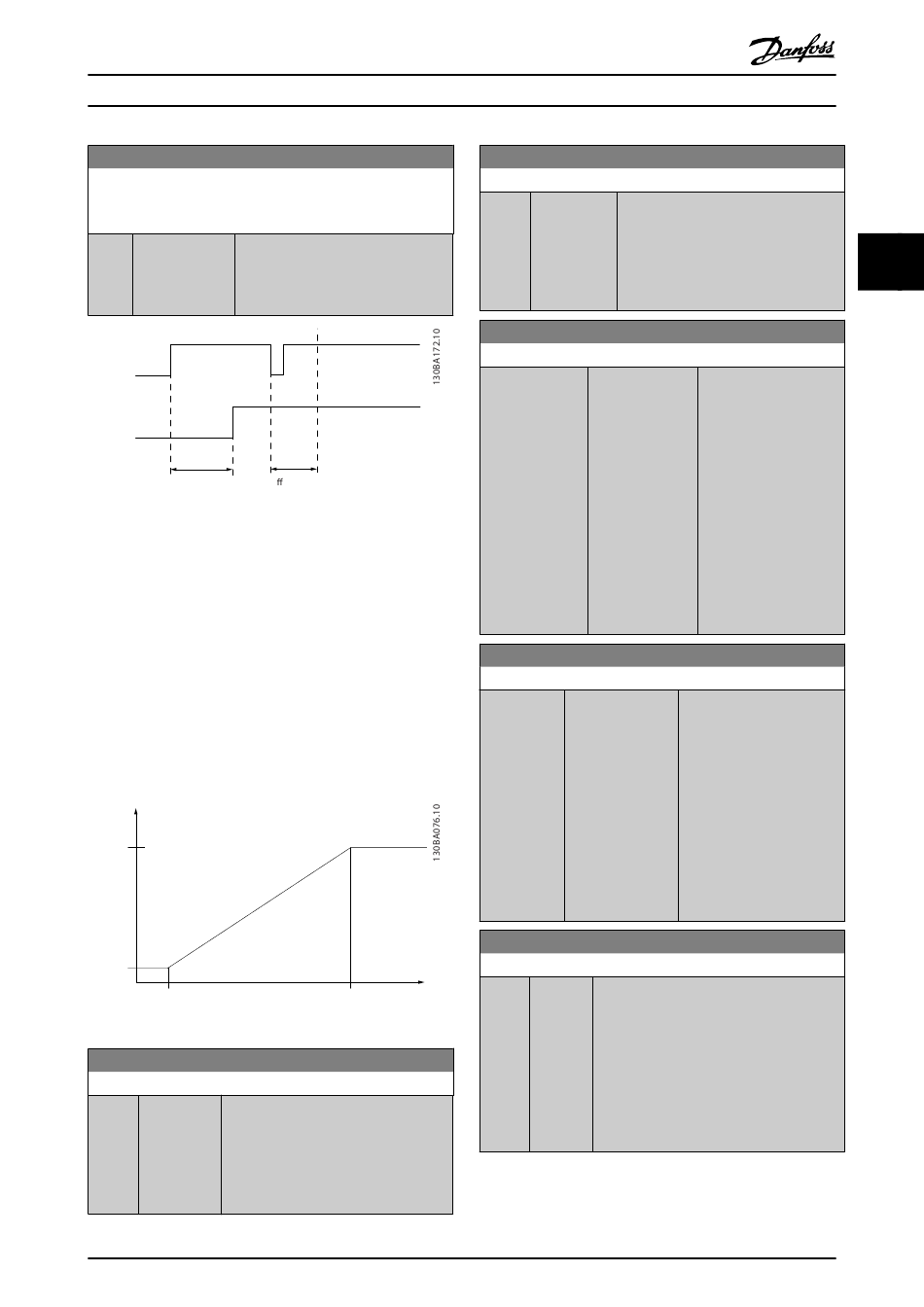

Parameter Descriptions
5-42 Off Delay, Relay
Array [9] (Relay 1 [0], Relay 2 [1], Relay 3 [2], Relay 4 [3], Relay 5 [4],
Relay 6 [5], Relay 7 [6], Relay 8 [7], Relay 9 [8])
Range: Function:
0.01 s [0.01 - 600.00 s] Enter the delay of the relay cut-out
*
time. Select one of available mechanical
relays and MCB 105 in an array
function. See 5-40 Function Relay.
Selected
Event
Relay
output
On Delay
P 5-41
If the selected Event condition changes before the on- or off
delay timer expires, the relay output is unaffected.
3.7.5 5-5* Pulse Input
The pulse input parameters are used to define an
appropriate window for the impulse reference area by
configuring the scaling and filter settings for the pulse
inputs. Input terminals 29 or 33 act as frequency reference
inputs. Set terminal 29 (5-13 Terminal 29 Digital Input) or
terminal 33 (5-15 Terminal 33 Digital Input) to Pulse input [32].
If terminal 29 is used as an input, then set 5-01 Terminal 27
Mode to Input [0].
Ref.
(RPM)
High
ref.
value
P 5-53/
p 5-58
Low
ref.
value
P 5-52/
p 5-57
Low freq.
P 5-50/
P 5-55
5-50 Term. 29 Low Frequency
Range: Function:
100 Hz [0 - 110000 Enter the low frequency limit
*
Hz] corresponding to the low motor shaft
speed (i.e. low reference value) in
5-52 Term. 29 Low Ref./Feedb. Value. Refer
to the diagram in this section.
This parameter is available for FC 302 only.
FC 300 Programming Guide
O Delay
P 5-42
High freq. Input
P 5-51/ (Hz)
P 5-56
®
MG.33.MB.02 - VLT is a registered Danfoss trademark
5-51 Term. 29 High Frequency
Range: Function:
100 Hz [0 - 110000 Enter the high frequency limit
*
Hz] corresponding to the high motor shaft
speed (i.e. high reference value) in
5-53 Term. 29 High Ref./Feedb. Value.
This parameter is available for FC 302
only.
5-52 Term. 29 Low Ref./Feedb. Value
Range:
0.000 Reference- [-999999.999 -
FeedbackUnit 999999.999
*
ReferenceFeed-
backUnit]
5-53 Term. 29 High Ref./Feedb. Value
Range:
Application [-999999.999 -
dependent 999999.999
*
ReferenceFeed-
backUnit]
5-54 Pulse Filter Time Constant #29
Range: Function:
100 [1 - 1000 Enter the pulse filter time constant. The pulse
ms ms] filter dampens oscillations of the feedback
*
signal, which is an advantage if there is a lot
of noise in the system. A high time constant
value results in better dampening but also
increases the time delay through the filter.
This parameter is available for FC 302 only.
This parameter cannot be adjusted while the
motor is running.
Function:
Enter the low reference
value limit for the motor
shaft speed [RPM]. This is
also the lowest feedback
value, see also 5-57 Term.
33 Low Ref./Feedb. Value.
Set terminal 29 to digital
input (5-02 Terminal 29
Mode =input [0] (default)
and 5-13 Terminal 29
Digital Input = applicable
value).
This parameter is
available for FC 302 only.
Function:
Enter the high reference
value [RPM] for the motor
shaft speed and the high
feedback value, see also
5-58 Term. 33 High Ref./Feedb.
Value. Select terminal 29 as a
digital input (5-02 Terminal 29
Mode =input [0] (default) and
5-13 Terminal 29 Digital Input
= applicable value).
This parameter is available for
FC 302 only.
