Parameter Descriptions
NOTE
The motor may start without warning. If the specified
number of AUTOMATIC RESETs is reached within 10 minutes,
the frequency converter enters Manual reset [0] mode. After
the Manual reset is performed, the setting of 14-20 Reset
Mode reverts to the original selection. If the number of
automatic resets is not reached within 10 minutes, or when a
Manual reset is performed, the internal AUTOMATIC RESET
counter returns to zero.
NOTE
Automatic reset will also be active for resetting safe stop
function in firmware version < 4.3x.
14-21 Automatic Restart Time
Range: Function:
10 s [0 - 600 s] Enter the time interval from trip to start of the
*
automatic reset function. This parameter is
active when 14-20 Reset Mode is set to
Automatic reset [1] - [13].
NOTE
Remember to set switches S201 (A53) and S202 (A54) as
specified below when performing a control card test in
14-22 Operation Mode [1]. Otherwise, the test will fail!
14-22 Operation Mode
Option: Function:
Use this parameter to specify normal operation;
to perform tests; or to initialise all parameters
except 15-03 Power Up's, 15-04 Over Temp's and
15-05 Over Volt's. This function is active only
when the power is cycled to the frequency
converter.
Select Normal operation [0] for normal
operation of the frequency converter with the
motor in the selected application.
Select Control card test [1] to test the analog
and digital inputs and outputs and the +10 V
control voltage. The test requires a test
connector with internal connections. Use the
following procedure for the control card test:
1. Select Control card test [1].
2. Disconnect the mains supply and wait
for the light in the display to go out.
3. Set switches S201 (A53) and S202
(A54) = 'ON' / I.
4. Insert the test plug (see below).
5. Connect to mains supply.
6. Carry out various tests.
FC 300 Programming Guide
[0]
[1]
[2]
[3]
®
MG.33.MB.02 - VLT is a registered Danfoss trademark
14-22 Operation Mode
Option: Function:
7. The results are displayed on the LCP
and the frequency converter moves
into an infinite loop.
8. 14-22 Operation Mode is automatically
set to Normal operation. Carry out a
power cycle to start up in Normal
operation after a control card test.
If the test is OK
LCP read-out: Control Card OK.
Disconnect the mains supply and remove the
test plug. The green LED on the Control Card
will light up.
If the test fails
LCP read-out: Control Card I/O failure.
Replace the frequency converter or Control
card. The red LED on the Control Card is turned

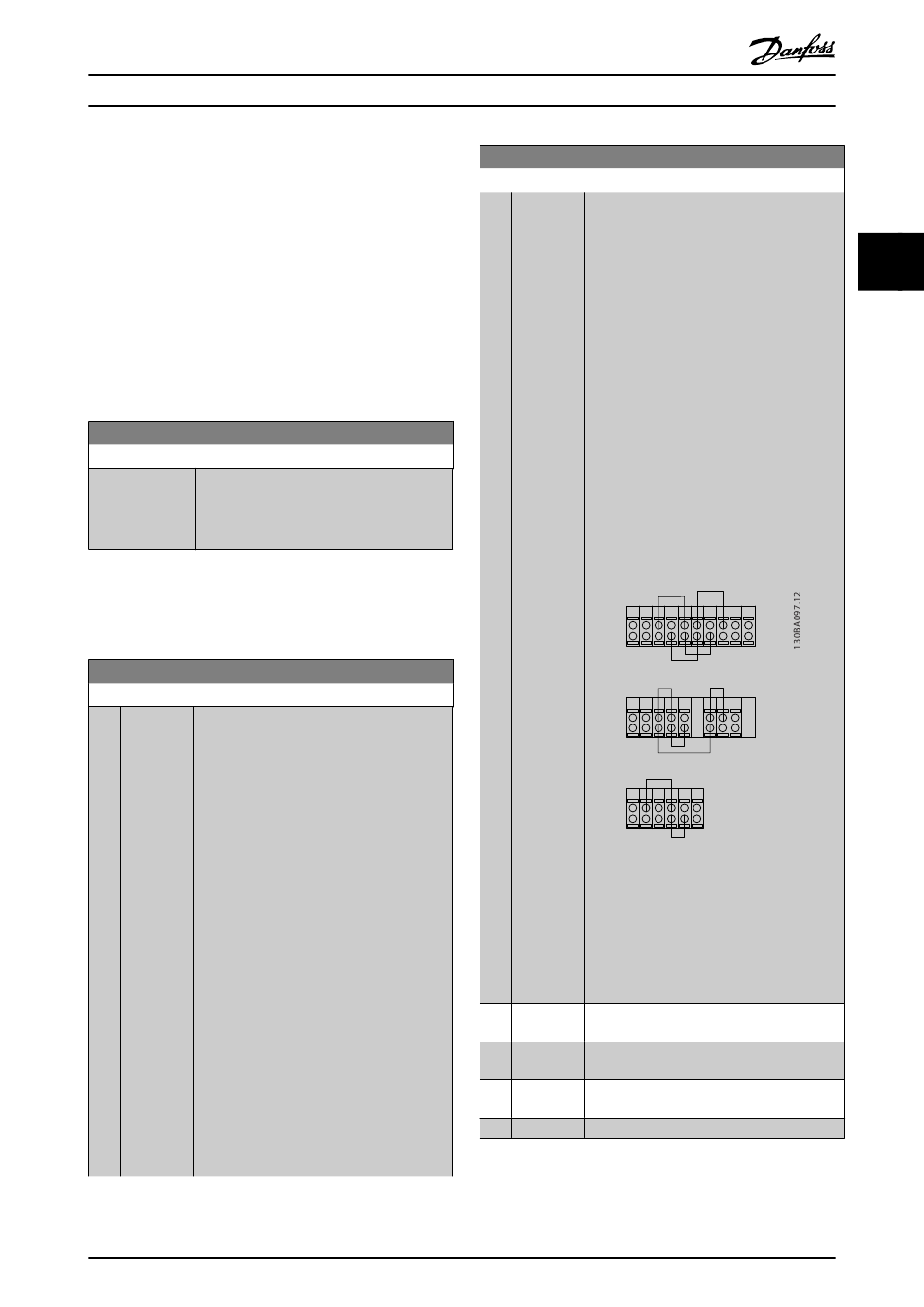

on. Test plugs (connect the following terminals
to each other): 18 - 27 - 32; 19 - 29 - 33; 42 - 53 -
54
12 13 18
12 13 18
39 42 50
Select Initialization [2] to reset all parameter
values to default settings, except for
15-03 Power Up's, 15-04 Over Temp's, and
15-05 Over Volt's. The frequency converter will
reset during the next power-up.
14-22 Operation Mode will also revert to the
default setting Normal operation [0].
Normal
*
operation
Control
card test
Initiali-
sation
Boot mode
19 27 29 32 33 20 37
FC 302
19 27 32 33 20
FC 301
53 54 55
FC 301 &
FC 302
