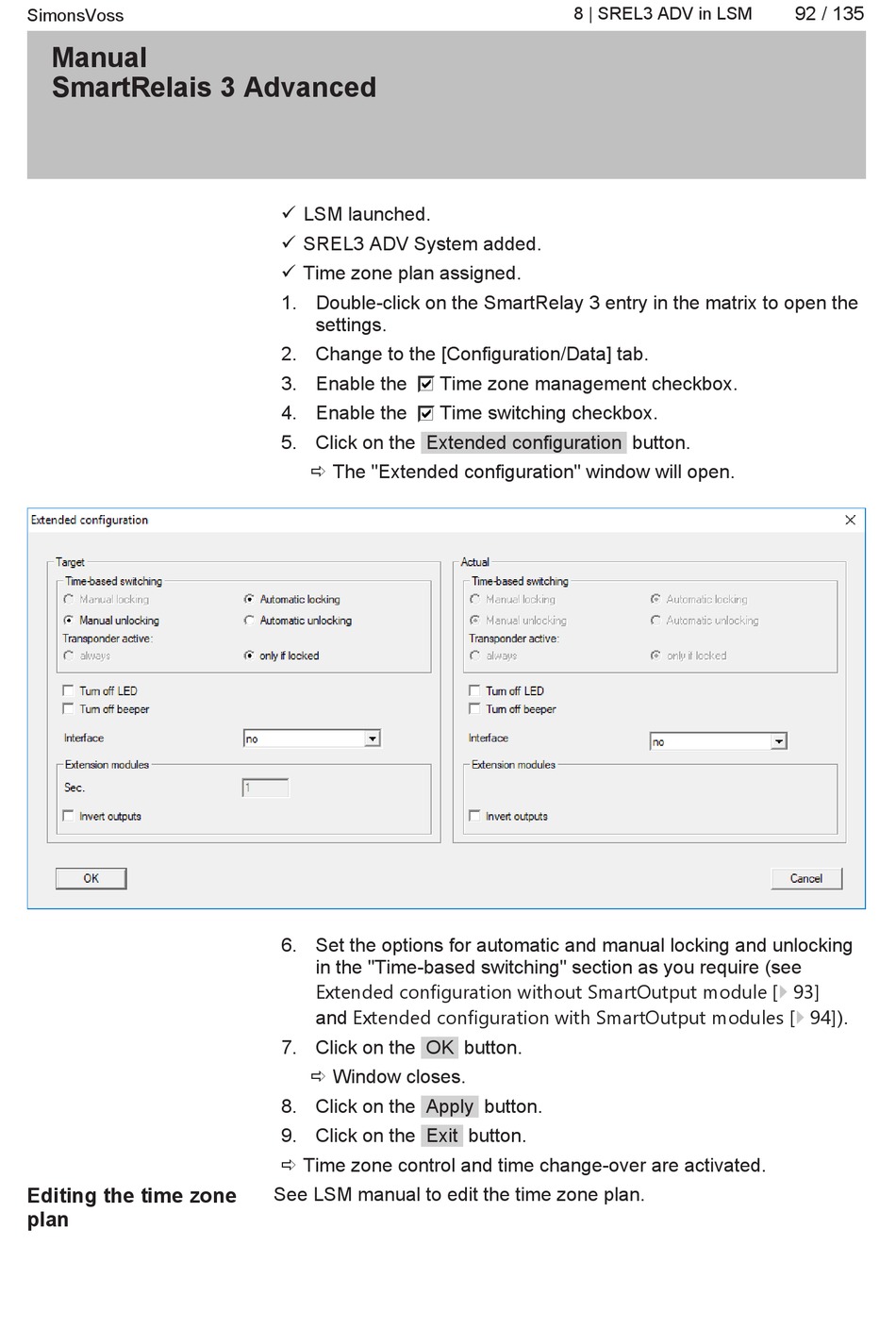

Simons Voss Technologies SmartRelais 3 Advanced Manual page 92

SimonsVoss
Manual
SmartRelais 3 Advanced
Editing the time zone
plan
ü LSM launched.
ü SREL3 ADV System added.
ü Time zone plan assigned.
1. Double-click on the SmartRelay 3 entry in the matrix to open the
settings.
2. Change to the [Configuration/Data] tab.
3. Enable the Time zone management checkbox.
4. Enable the Time switching checkbox.
5. Click on the Extended configuration button.
ð The "Extended configuration" window will open.
6. Set the options for automatic and manual locking and unlocking
in the "Time-based switching" section as you require (see
Extended configuration without SmartOutput module [} 93]
and Extended configuration with SmartOutput modules [} 94]).
7. Click on the OK button.
ð Window closes.
8. Click on the Apply button.
9. Click on the Exit button.
ð Time zone control and time change-over are activated.
See LSM manual to edit the time zone plan.
8 | SREL3 ADV in LSM 92 / 135
