SimonsVoss
Manual
SmartRelais 3 Advanced
-
+
1(1)
<
1(2)
2(1)
<
2(2)
+1
-
B1
A1
+2
-
B2
Controller
A2
+3
-
B3
A3
O4
O3
O2
O1
O+
I3
I2
I1
-
I+

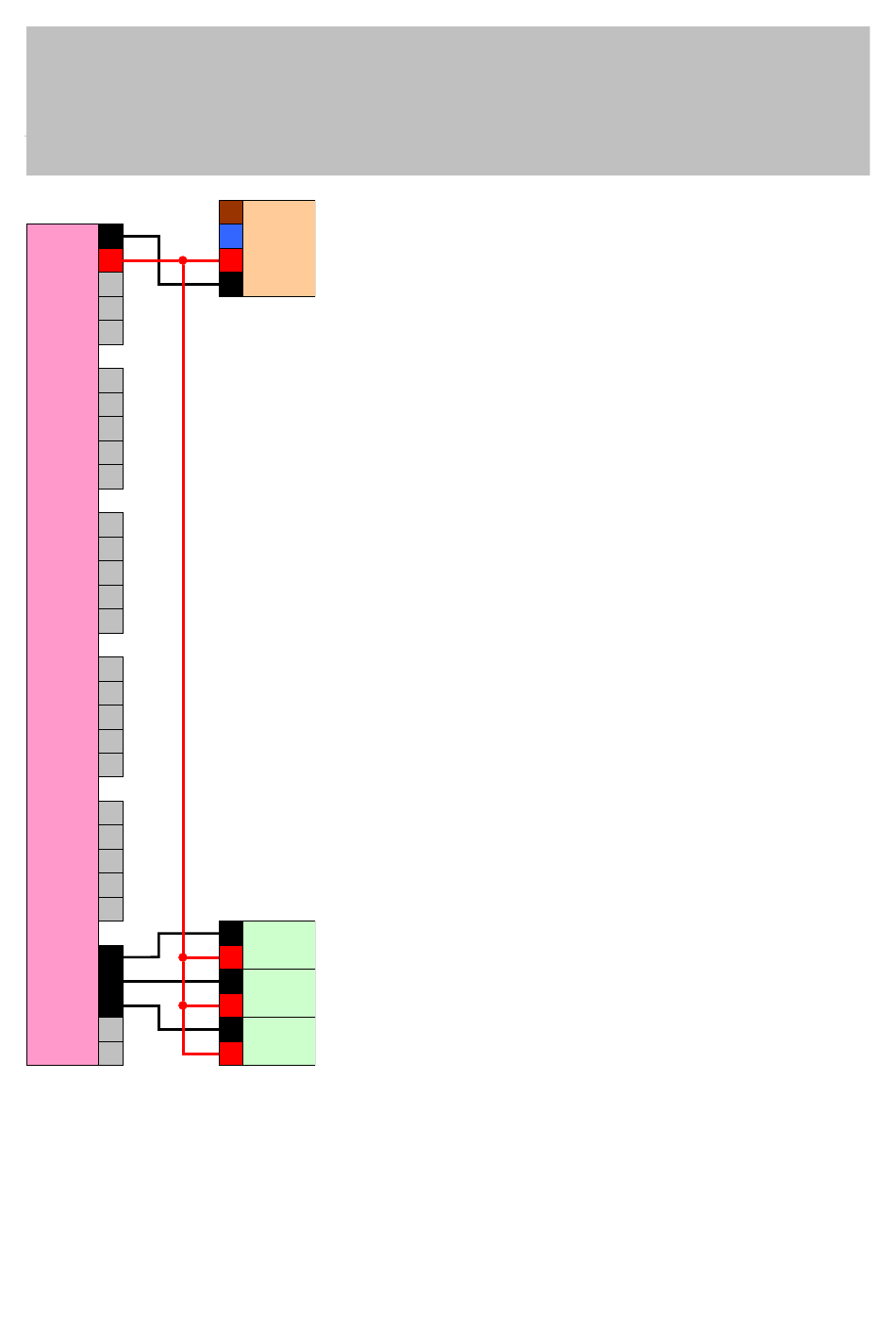

6.4.5.3 Connecting one or more SmartOutput modules
L
N
Power
supply unit
+
-
1
Button
2
1
Button
2
1
Button
2
SmartOutput modules require a supply voltage which may differ from the
controller's supply voltage. For this reason, it is recommended to use their
own power supply unit. SmartOutput modules are connected in parallel on
the bus (A, B). The bus is connected to the controller instead of a third
6 | Setting up 63 / 135
