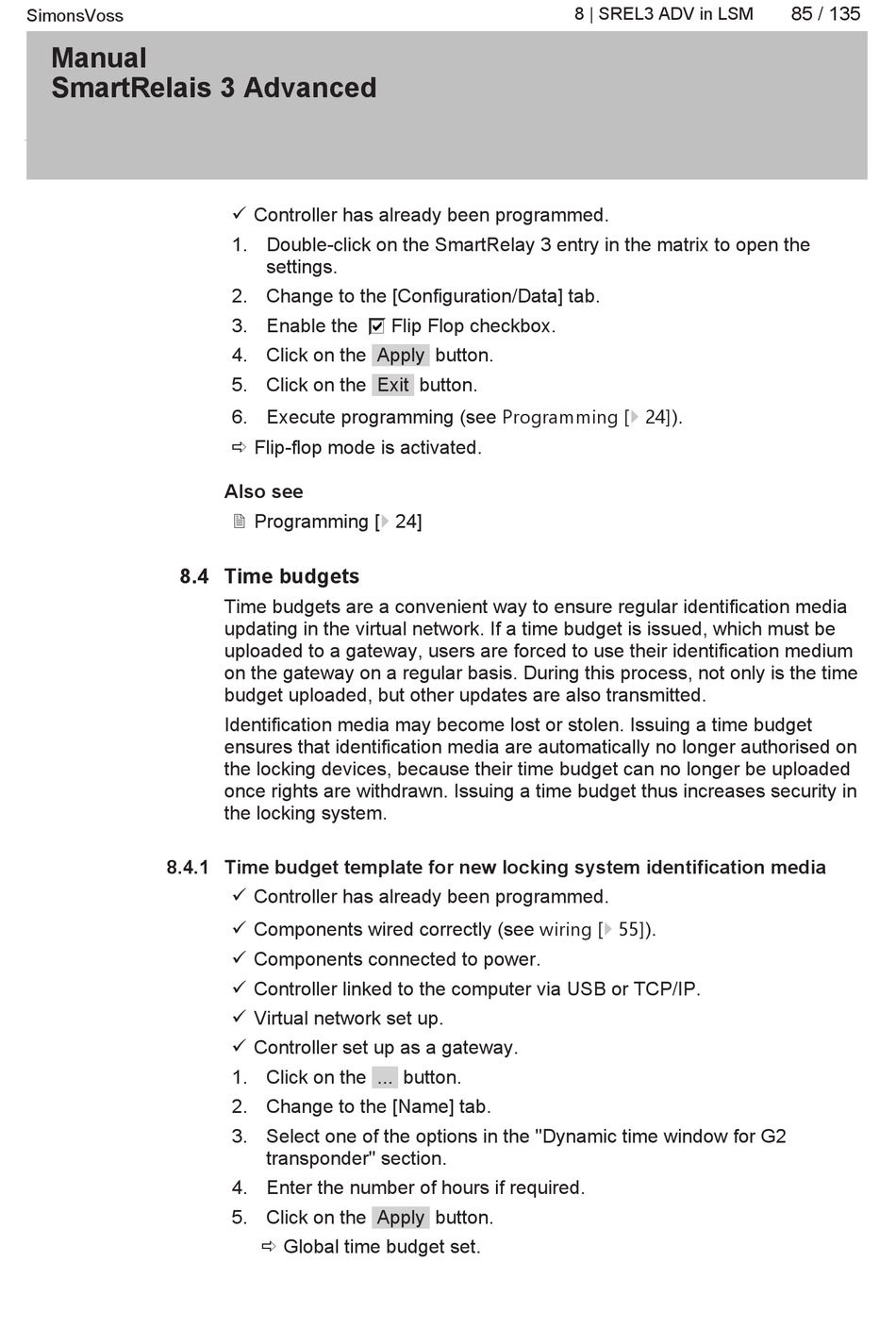

8.4 Time budgets

8.4.1 Time budget template for new locking system identification media

ü Controller has already been programmed.
1. Double-click on the SmartRelay 3 entry in the matrix to open the
settings.
2. Change to the [Configuration/Data] tab.
3. Enable the Flip Flop checkbox.
4. Click on the Apply button.
5. Click on the Exit button.
6. Execute programming (see Programming [} 24]).
ð Flip-flop mode is activated.
Also see
2 Programming [} 24]
Time budgets are a convenient way to ensure regular identification media
updating in the virtual network. If a time budget is issued, which must be
uploaded to a gateway, users are forced to use their identification medium
on the gateway on a regular basis. During this process, not only is the time
budget uploaded, but other updates are also transmitted.
Identification media may become lost or stolen. Issuing a time budget
ensures that identification media are automatically no longer authorised on
the locking devices, because their time budget can no longer be uploaded
once rights are withdrawn. Issuing a time budget thus increases security in
the locking system.
ü Controller has already been programmed.
ü Components wired correctly (see wiring [} 55]).
ü Components connected to power.
ü Controller linked to the computer via USB or TCP/IP.
ü Virtual network set up.
ü Controller set up as a gateway.
1. Click on the ... button.
2. Change to the [Name] tab.
3. Select one of the options in the "Dynamic time window for G2
transponder" section.
4. Enter the number of hours if required.
5. Click on the Apply button.
ð Global time budget set.
8 | SREL3 ADV in LSM 85 / 135
