SimonsVoss
Manual
SmartRelais 3 Advanced
Door drive
Reader in
the unprotected area
Encrypted connection
to the controller
Elec. connection
to the controller

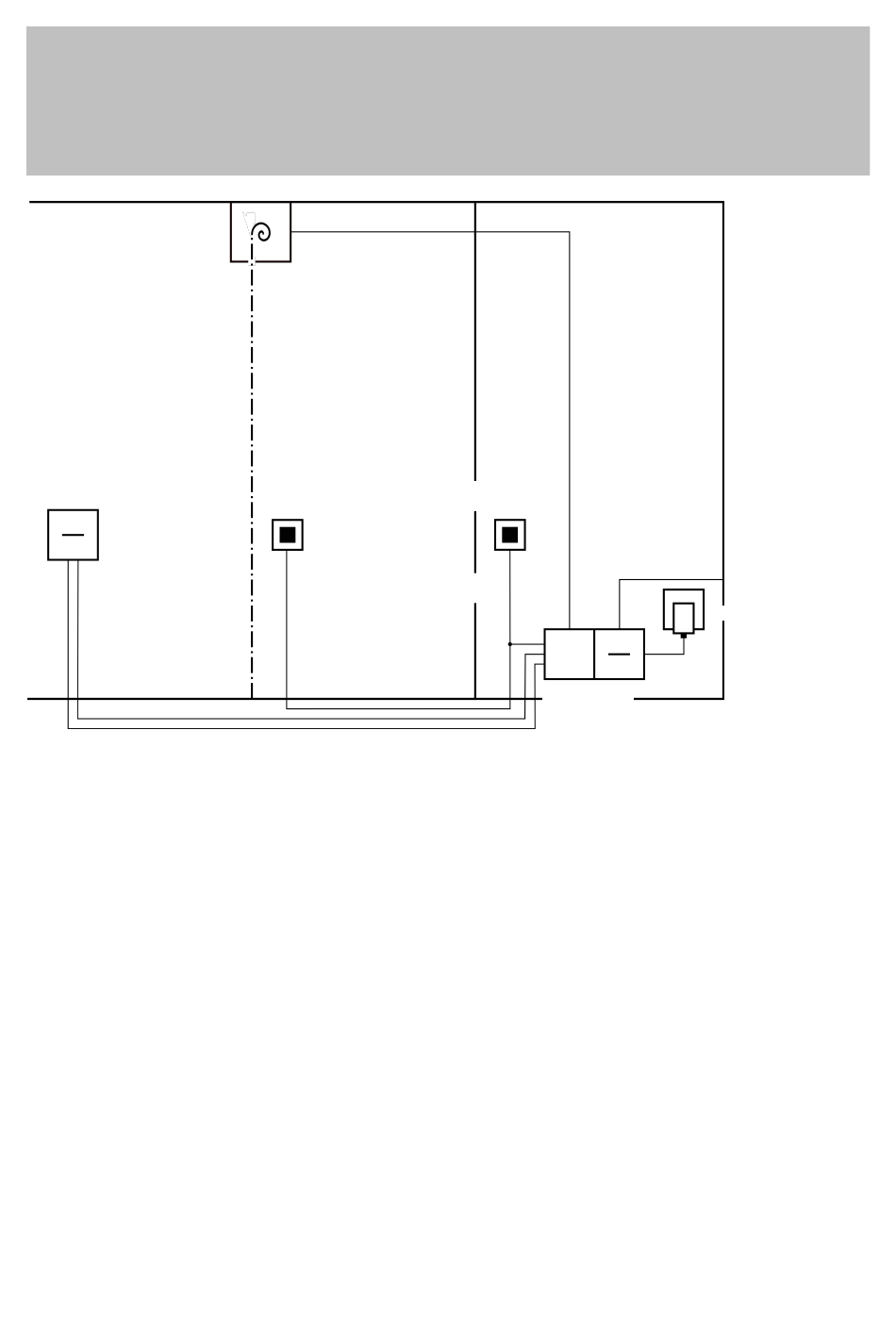

The SREL3 ADV system can be used to provide a convenient underground
car park control. As with all other use cases, the controller is installed in a
protected area, such as the engineering room. A reader is also needed in
front of the roll-up door, close to the entrance:
– The reader is installed in a suitable position in an existing housing – in
an existing intercom housing, for example. This variant is inconspicuous
and offers effective protection against the weather, vandalism and
sabotage.
– The reader is fitted on the wall. This variant is visible on the outside and
makes it easier for users to place their identification medium onto the
reader. The read range is better compared to a reader fitted inside an
existing housing. The protective housing (SREL2.COVER1) ensures
protection against the weather, vandalism and sabotage.
The user can use their identification media to check authorisation while in
the car. If the user does not have an identification medium, but is expected,
they can still announce their arrival, using an intercom, for example.
Another person who is in the protected area can then let the user in by
pressing the connected button. The button can be installed in a gatehouse,
for example, which only allows external customers to enter during business
hours while users with identification media can come in at any time.
Elec. connection to the
relay in the controller
Button in the
protected area
Elec. connection
to the controller
Controller in the
protected area
6 | Setting up 54 / 135
External PSU
