SimonsVoss
Manual
SmartRelais 3 Advanced

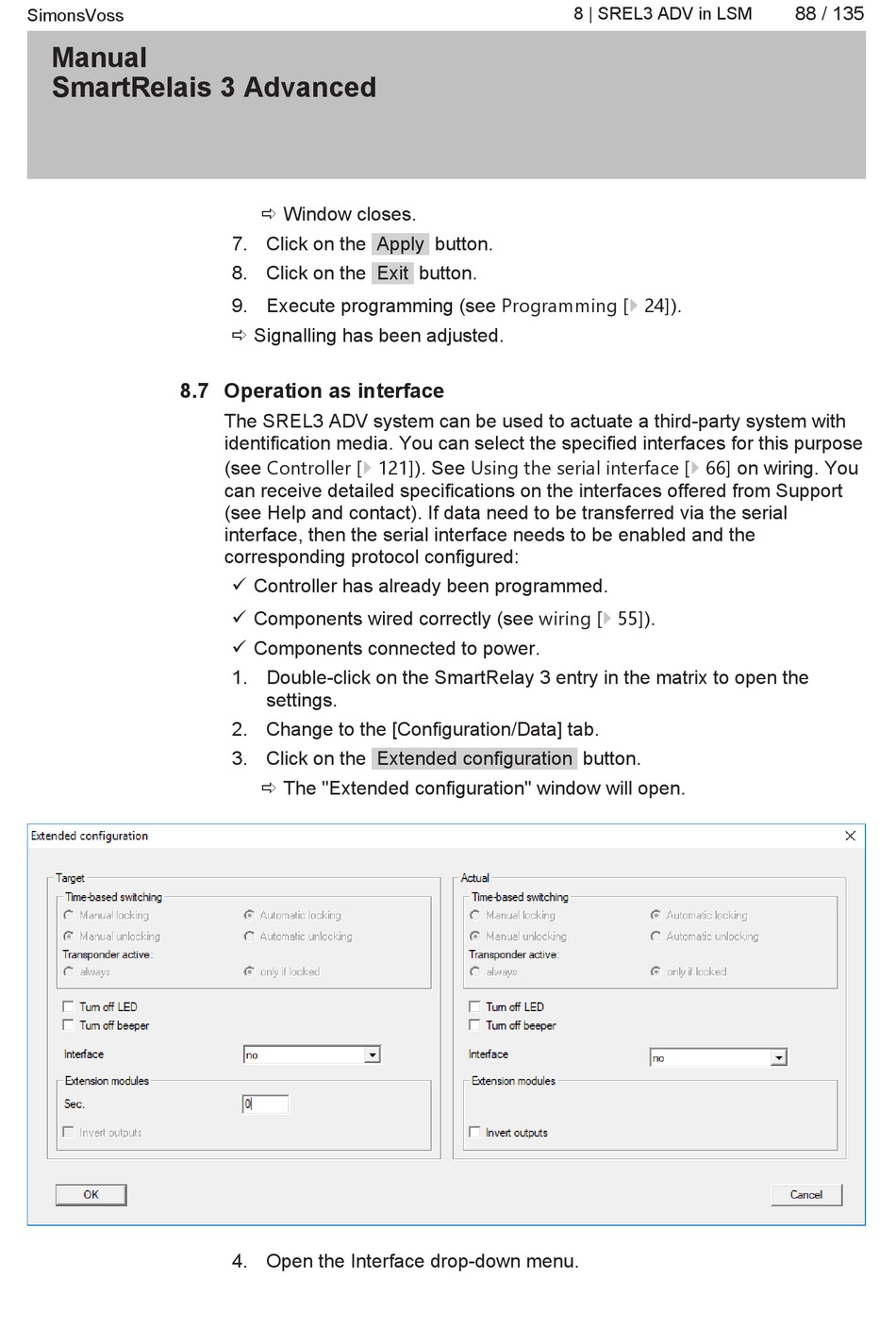

8.7 Operation as interface

ð Window closes.
7. Click on the Apply button.
8. Click on the Exit button.
9. Execute programming (see Programming [} 24]).
ð Signalling has been adjusted.
The SREL3 ADV system can be used to actuate a third-party system with
identification media. You can select the specified interfaces for this purpose
(see Controller [} 121]). See Using the serial interface [} 66] on wiring. You
can receive detailed specifications on the interfaces offered from Support
(see Help and contact). If data need to be transferred via the serial
interface, then the serial interface needs to be enabled and the
corresponding protocol configured:
ü Controller has already been programmed.
ü Components wired correctly (see wiring [} 55]).
ü Components connected to power.
1. Double-click on the SmartRelay 3 entry in the matrix to open the
settings.
2. Change to the [Configuration/Data] tab.
3. Click on the Extended configuration button.
ð The "Extended configuration" window will open.
4. Open the Interface drop-down menu.
8 | SREL3 ADV in LSM 88 / 135
