SimonsVoss
Manual
SmartRelais 3 Advanced
-
+
1(1)
<
1(2)
2(1)
<
2(2)
+1
-
B1
A1
+2
-
B2
Controller
A2
+3
-
B3
A3
O4
O3
O2
O1
O+
I3
I2
I1
-
I+

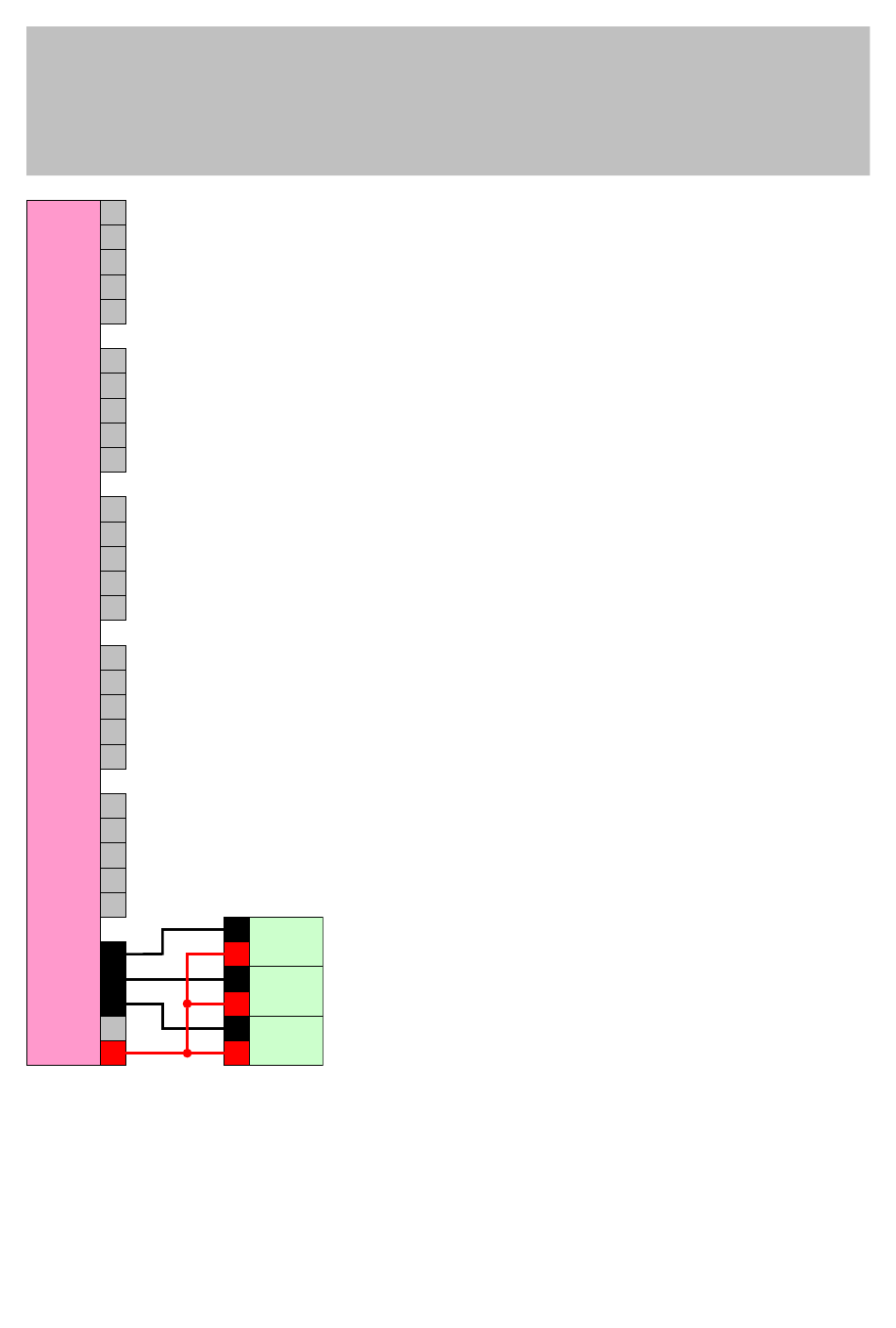

Option 2: Using V
1
Button
2
1
Button
2
1
Button
2
If I+ is not to be used, another voltage can be used with a common
IN
reference potential (same earth) with the controller – from the power
supply unit in this case. This option is recommended if the power
supply unit and buttons are close to one another, but are far from the
controller. There is no need to install another cable (the I+ to be
precise) in this case.
