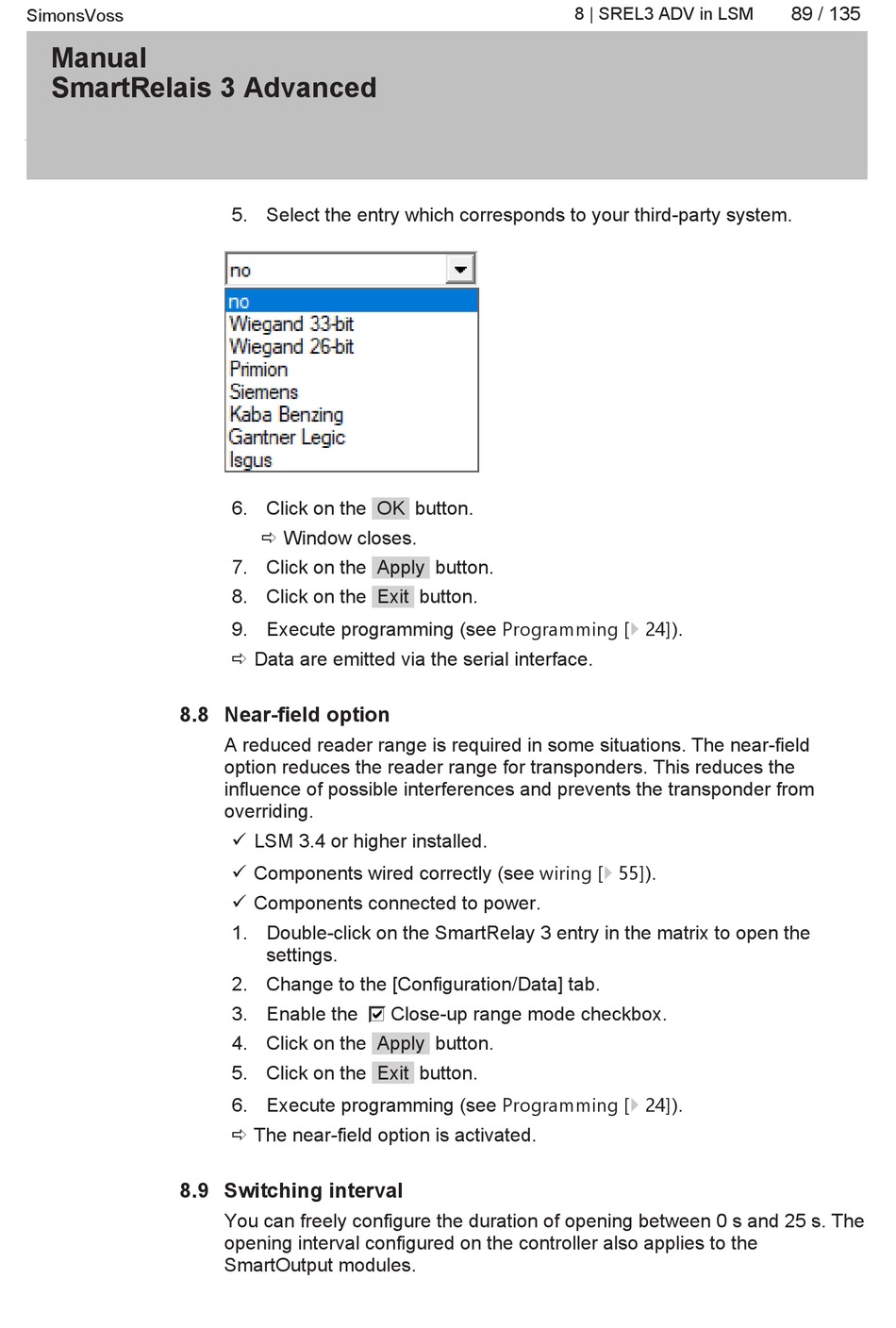

Near-Field Option; Switching Interval - Simons Voss Technologies SmartRelais 3 Advanced Manual

SimonsVoss
Manual
SmartRelais 3 Advanced

8.8 Near-field option

8.9 Switching interval

5. Select the entry which corresponds to your third-party system.
6. Click on the OK button.
ð Window closes.
7. Click on the Apply button.
8. Click on the Exit button.
9. Execute programming (see Programming [} 24]).
ð Data are emitted via the serial interface.
A reduced reader range is required in some situations. The near-field
option reduces the reader range for transponders. This reduces the
influence of possible interferences and prevents the transponder from
overriding.
ü LSM 3.4 or higher installed.
ü Components wired correctly (see wiring [} 55]).
ü Components connected to power.
1. Double-click on the SmartRelay 3 entry in the matrix to open the
settings.
2. Change to the [Configuration/Data] tab.
3. Enable the Close-up range mode checkbox.
4. Click on the Apply button.
5. Click on the Exit button.
6. Execute programming (see Programming [} 24]).
ð The near-field option is activated.
You can freely configure the duration of opening between 0 s and 25 s. The
opening interval configured on the controller also applies to the
SmartOutput modules.
8 | SREL3 ADV in LSM 89 / 135
