The controller can communicate with systems which use one of the
protocols. Once an authorised identification medium is detected, the
data are forwarded to the third-party system via the serial interface.

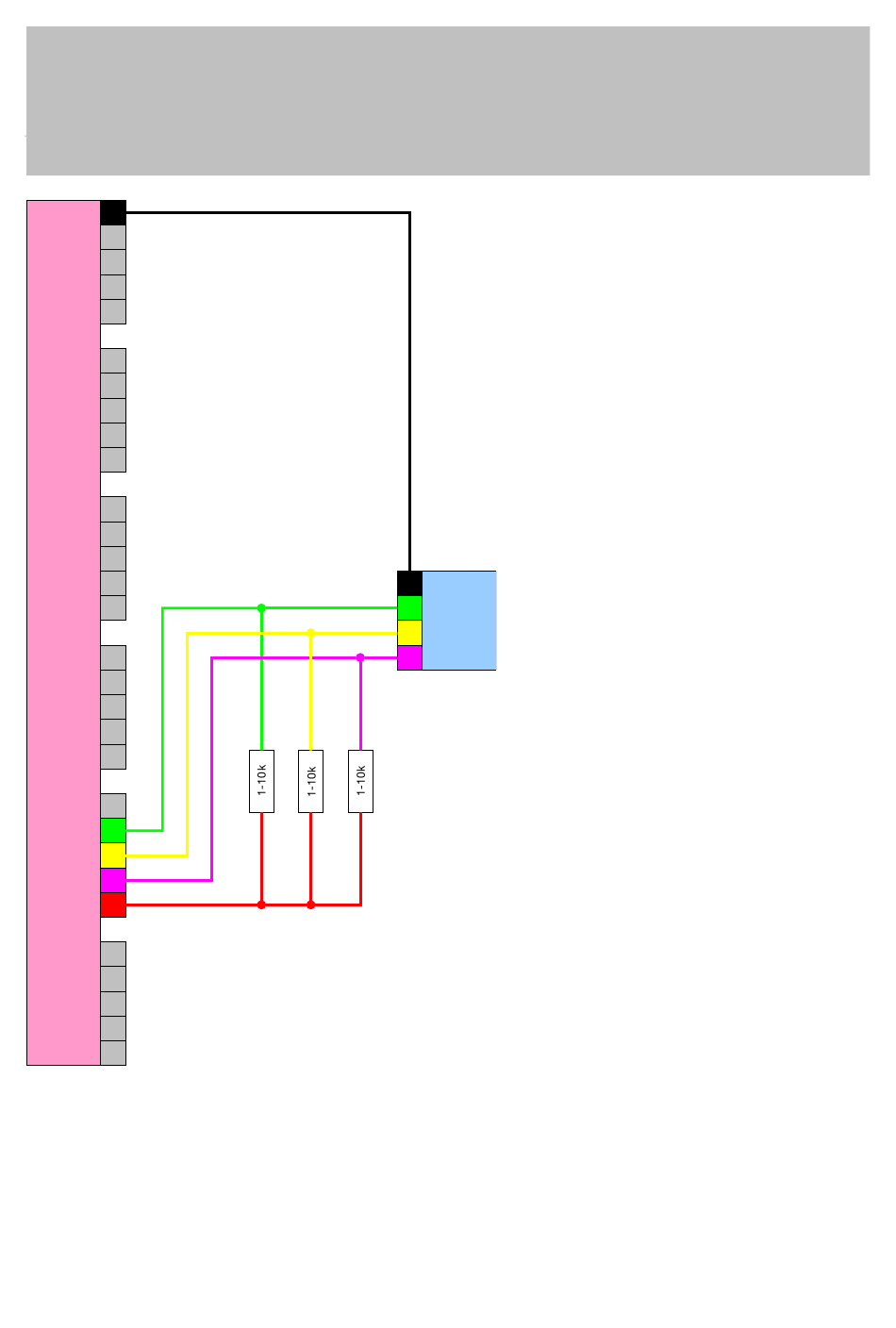

The controller must be wired as follows to make this possible.
