SmartRelais 3 Advanced
SmartOutput module
in cab
Lift
electronics
IMPORTANT
Separate earth connec-
tion
Reader in
the unprotected area
Voltage converter
A common earth connection is required between the controller, reader and
SmartOutput modules. The cab power supply earth connection can be used
to save on lines in the trailing cable. The controller's earth connection
needs to be connected to the cab power supply earth connection in this
case.
See Common earth with power supply [} 69] on wiring.
If a common earth cable cannot be used for the cab power supply
and the components, an additional line needs to be assigned in the
trailing cable. In this specific case, five lines are also needed to
supply power to the cab.

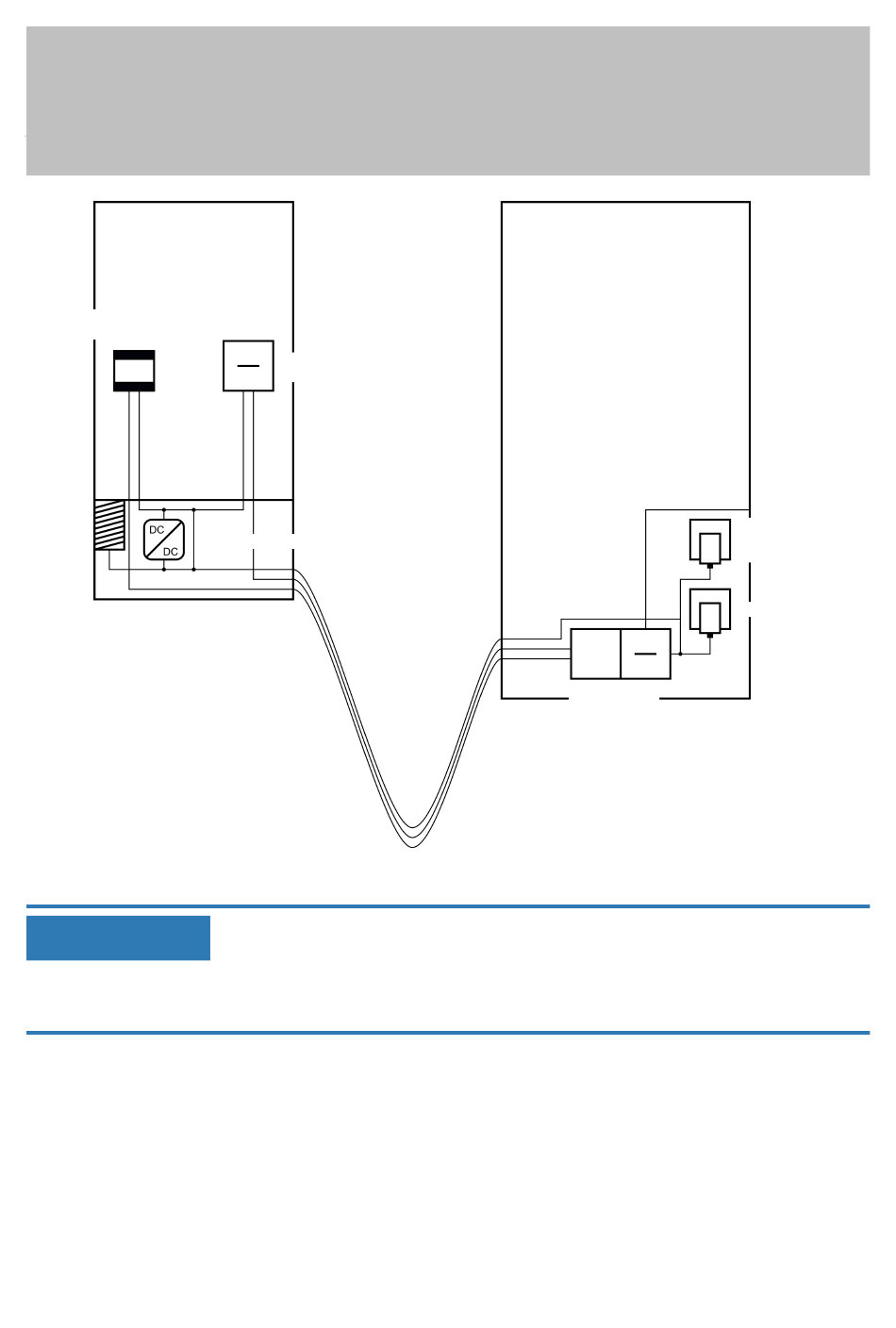

Trailing cable
6 | Setting up
Ethernet connection to LSM
Controller in the
protected area
43 / 135
Power
supply for
lift cab
External PSU
