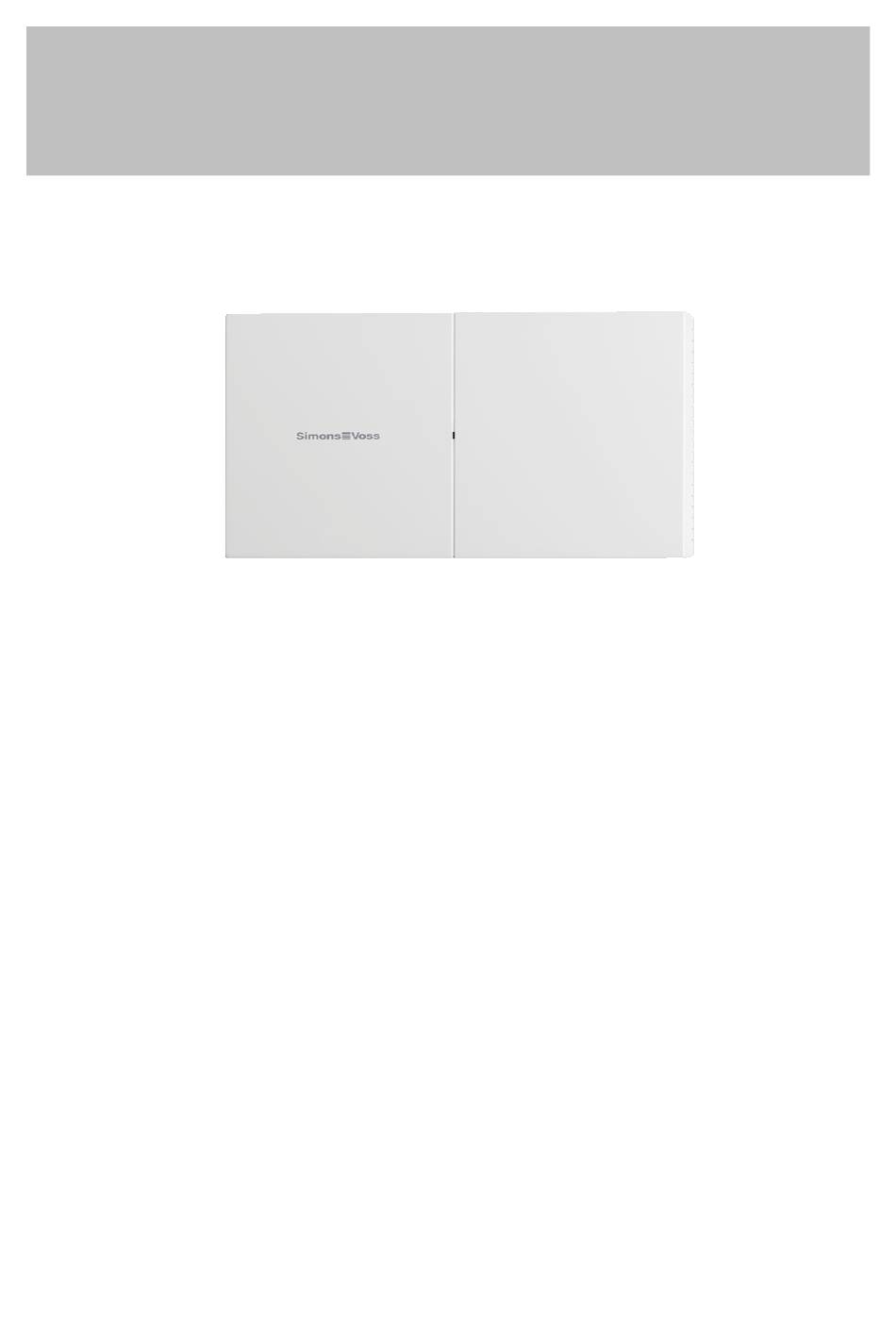

3.1 Controller

3 System description

The SREL3 ADV system is connected to the network via Ethernet. The
Ethernet connection is PoE-capable, so an external power supply unit is not
essential. It is possible to use the system as a gateway in the virtual
network. The controller established a connection to the VN host server to
do so. The VN host server transmits modified authorisations (programming
requirement) and data from the LSM database to the controller. This means
there is no longer a need for the database to be fully loaded, which saves
time. Instead, the controller fetches the provided data when an identification
medium is detected (pull principle). The entire system is programmed via a
single interface – the controller.
The SREL3 ADV is also available in a ZK variant, which extends the
system's functions to include time zone control and event logging (access
lists).
Three available screw terminal inputs ensure that the controller is flexible in
its use.
– Forwarding to LSM (Inputs 1 and 2)
– Push-to-open contact (Input 3)
The built-in screw terminal relay output can activate any system and open
an electric door, for example.
An IP address needs to be issued using USB when the controller is
programmed for the first time. Once the IP address is issued, a USB
connection is no longer needed. The controller's configuration can be
modified over the network instead.
The built-in backup battery ensures that the programmed settings are
maintained after a power failure and guarantees that the controller
continues to function without any limitations once power is restored.
