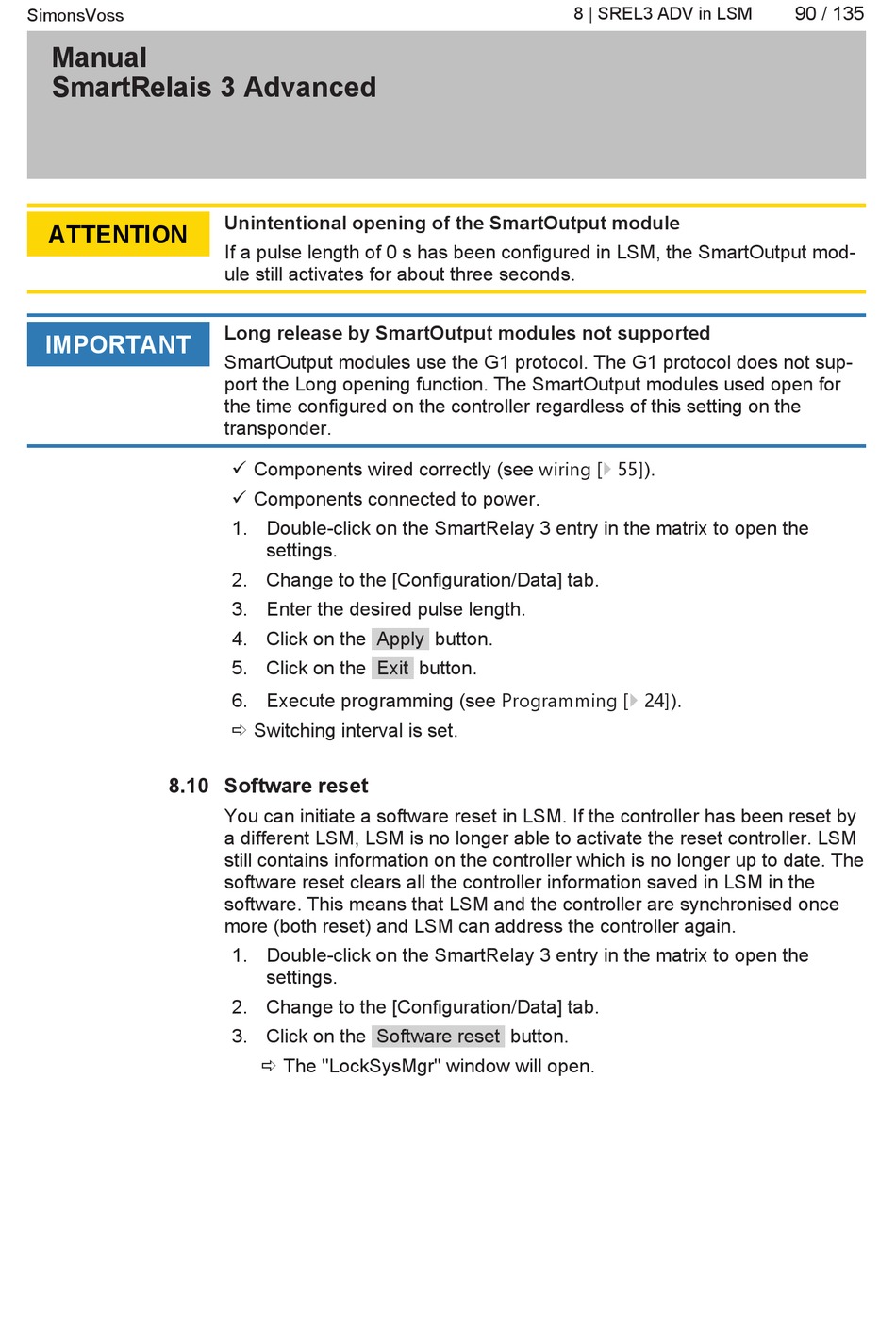

Software Reset - Simons Voss Technologies SmartRelais 3 Advanced Manual

SimonsVoss
Manual
SmartRelais 3 Advanced
ATTENTION
IMPORTANT

8.10 Software reset

Unintentional opening of the SmartOutput module
If a pulse length of 0 s has been configured in LSM, the SmartOutput mod-
ule still activates for about three seconds.
Long release by SmartOutput modules not supported
SmartOutput modules use the G1 protocol. The G1 protocol does not sup-
port the Long opening function. The SmartOutput modules used open for
the time configured on the controller regardless of this setting on the
transponder.
ü Components wired correctly (see wiring [} 55]).
ü Components connected to power.
1. Double-click on the SmartRelay 3 entry in the matrix to open the
settings.
2. Change to the [Configuration/Data] tab.
3. Enter the desired pulse length.
4. Click on the Apply button.
5. Click on the Exit button.
6. Execute programming (see Programming [} 24]).
ð Switching interval is set.
You can initiate a software reset in LSM. If the controller has been reset by
a different LSM, LSM is no longer able to activate the reset controller. LSM
still contains information on the controller which is no longer up to date. The
software reset clears all the controller information saved in LSM in the
software. This means that LSM and the controller are synchronised once
more (both reset) and LSM can address the controller again.
1. Double-click on the SmartRelay 3 entry in the matrix to open the
settings.
2. Change to the [Configuration/Data] tab.
3. Click on the Software reset button.
ð The "LockSysMgr" window will open.
8 | SREL3 ADV in LSM 90 / 135
