- Page 1 Programming device SmartCD2.G2 Manual 05.03.2024...
-
Page 2: Table Of Contents
Programming device SmartCD2.G2 Contents (Manual) 2 / 19 Contents Intended use.............................. 3 General safety instructions ........................ 4 Product-specific safety instructions .................... 6 Unpacking .............................. 7 Connecting.............................. 8 Recharging .............................. 9 Getting started ............................ 10 Programme.............................. 11 Programming with a PC or laptop ...................... 11 Programming with a Windows notebook/tablet ................ -
Page 3: Intended Use

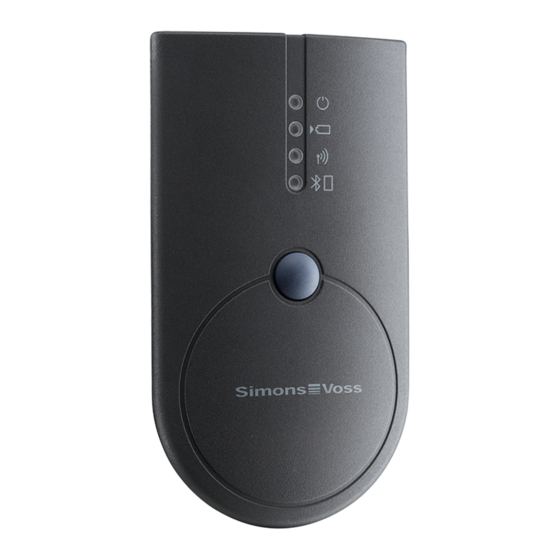

3 / 19 1. Intended use The SmartCD2.G2 is a programming device that has been specially developed for running on a PC/tablet/laptop or for coupling with a smartphone. It is a very convenient way for you to programme and read all digital components in SimonsVoss System 3060 (locking cylinders, transponders, SmartHandles and SmartRelays). -
Page 4: General Safety Instructions
Programming device SmartCD2.G2 2. General safety instructions (Manual) 4 / 19 2. General safety instructions Signal word: Possible immediate effects of non-compliance WARNING: Death or serious injury (possible, but unlikely) IMPORTANT: Property damage or malfunction NOTE: Low or none WARNING... - Page 5 Programming device SmartCD2.G2 2. General safety instructions (Manual) 5 / 19 Operational malfunction due to radio interference This product may be affected by electromagnetic or magnetic interference. Do not mount or place the product directly next to devices that could cause electromagnetic ...
-
Page 6: Product-Specific Safety Instructions
Programming device SmartCD2.G2 3. Product-specific safety instructions (Manual) 6 / 19 3. Product-specific safety instructions WARNING Hazards from built-in lithium batteries The programming device contains lithium batteries. Lithium batteries are dangerous if not handled properly. 1. Do not open the programming device. SimonsVoss can replace used batteries (subject to a charge). -
Page 7: Unpacking
Quick guide You need the LSM software to operate the SmartCD2.G2. For mobile programming on site, the LSM Mobile software or app must also be installed on the mobile device. The LSM Mobile software must be purchased separately. -
Page 8: Connecting
USB and Bluetooth cannot be used simultaneously You must ensure that the Bluetooth connection is not active before connecting SmartCD2.G2 to the USB port. The Bluetooth function switches off automatically after 15 minutes. It can also be switched off manually by pressing a button on the programming device. If this not the case, com- munication cannot be established via the USB port. -
Page 9: Recharging
Like all batteries, the batteries in the SmartCD2.G2 discharge over a long period of time. In this case, you cannot use it until it is charged. Leave the SmartCD2.G2 connected to a suitable USB port if you are not going to use it for a ... -
Page 10: Getting Started
Programming device SmartCD2.G2 7. Getting started (Manual) 10 / 19 7. Getting started 1. Install the LSM software. Required drivers are installed automatically. 2. Connect the programming device to a USB port (see Connecting [ 8] The programming device is ready for use. -
Page 11: Programme
Programming device SmartCD2.G2 8. Programme (Manual) 11 / 19 8. Programme During programming, there should a minimum gap of around 10 cm between SmartCD and the locking device; for SmartRelay it should be around 30 cm and 70 cm for the block lock. -
Page 12: Align The Antenna
To ensure trouble-free programming, the antenna alignment of selected components is shown below. You can achieve the greatest possible read range for programming if the SmartCD2.G2 and locking device antennas are positioned in parallel to one another. As a general rule, the distance between antennas should be at least 10 cm to prevent overshooting. -
Page 13: Replacing The Batteries
Programming device SmartCD2.G2 10. Replacing the batteries (Manual) 13 / 19 10. Replacing the batteries Contact your retail specialist if you should need to replace batteries. The retailer can then have batteries replaced by SimonsVoss Technologies GmbH for a fee. -
Page 14: Signalling
The first LED lights up when connected via USB on the PC/laptop or without USB connection only after the SmartCD2.G2 has been switched on by pressing the button. The device can be switched off again to save power by re-pressing the button. -
Page 15: Technical Specifications
Programming device SmartCD2.G2 12. Technical specifications (Manual) 15 / 19 12. Technical specifications Housing dimensions H x W x D: 112 x 63 x 22 mm Weight (including batteries): 95 g Housing material: Composite Housing colour: Grey Number of LEDs:... - Page 16 Programming device SmartCD2.G2 12. Technical specifications (Manual) 16 / 19 Radio emissions 25 kHz (fL>10 kHz, fH<40 kHz) -28.5 dBµA/m (10 m distance) 2402 MHz - 2480 MHz 0 dBm...
-
Page 17: Declaration Of Conformity
(Manual) 17 / 19 13. Declaration of conformity The company SimonsVoss Technologies GmbH hereby declares that the articles (SMARTCD2.G2) comply with the following guidelines: 2014/53/EU -RED- or for the UK: UK statutory 2017 No. 1206 -Radio equipment- 2011/65/EU -RoHS- ... -
Page 18: Help And Other Information
You will find declarations of conformity and other certificates on the website: https://www.simons-voss.com/en/certificates.html Information on disposal Do not dispose the device (SMARTCD2.G2) in the household waste. Dispose of it at a collection point for electronic waste as per European Directive 2012/19/EU. - Page 19 This is SimonsVoss SimonsVoss, the pioneer in remote-controlled, cable-free locking technology provides system solutions with a wide range of products for SOHOs, SMEs, major companies and public institutions. SimonsVoss locking systems combine intelligent functionality, high quality and award- winning design Made in Germany. As an innovative system provider, SimonsVoss focuses on scalable systems, high security, reliable components, powerful software and simple operation.
