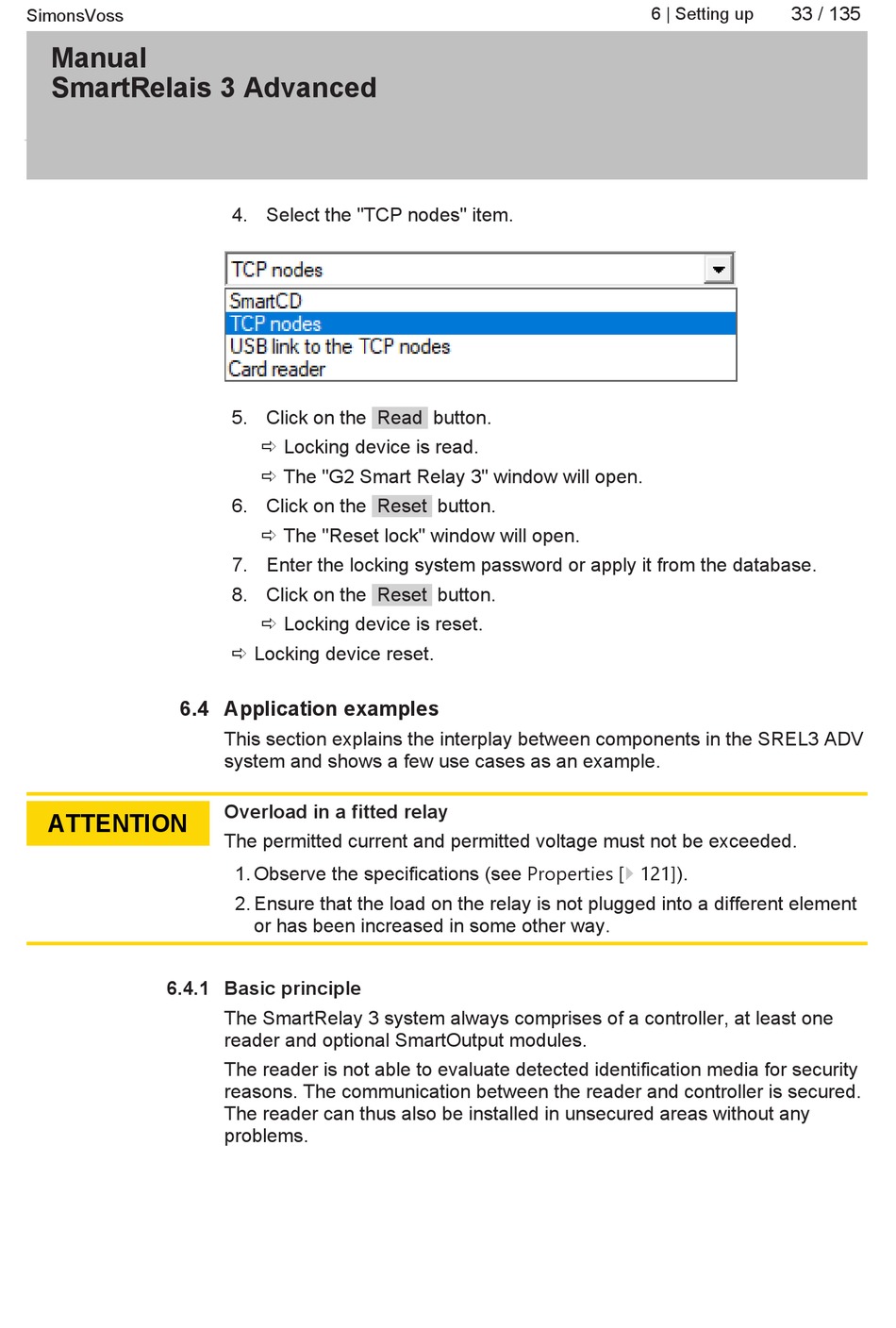

Application Examples; Basic Principle - Simons Voss Technologies SmartRelais 3 Advanced Manual

SimonsVoss
Manual
SmartRelais 3 Advanced

6.4 Application examples

ATTENTION

6.4.1 Basic principle

4. Select the "TCP nodes" item.
5. Click on the Read button.
ð Locking device is read.
ð The "G2 Smart Relay 3" window will open.
6. Click on the Reset button.
ð The "Reset lock" window will open.
7. Enter the locking system password or apply it from the database.
8. Click on the Reset button.
ð Locking device is reset.
ð Locking device reset.
This section explains the interplay between components in the SREL3 ADV
system and shows a few use cases as an example.
Overload in a fitted relay
The permitted current and permitted voltage must not be exceeded.
1. Observe the specifications (see Properties [} 121]).
2. Ensure that the load on the relay is not plugged into a different element
or has been increased in some other way.
The SmartRelay 3 system always comprises of a controller, at least one
reader and optional SmartOutput modules.
The reader is not able to evaluate detected identification media for security
reasons. The communication between the reader and controller is secured.
The reader can thus also be installed in unsecured areas without any
problems.
6 | Setting up 33 / 135
