ATTENTION
No check on authorisation
Any person who has physical access can operate the relay by using the
two buttons.
1. Ensure that no unauthorised persons can access this locking device.
There is no longer a need to use an identification medium. Users only need
to press a button to operate the relay (and open the sliding door in this
example). Compared to a purely electrical connection, this approach brings
the advantage of providing an overview when the relay was actuated and
what its current status is (see SmartSurveil [} 101]).
The relay is not protected against unauthorised operation. This type of
connection is thus only suitable for installing in areas which are already
secured.
See Connecting one or more buttons [} 61] on wiring.

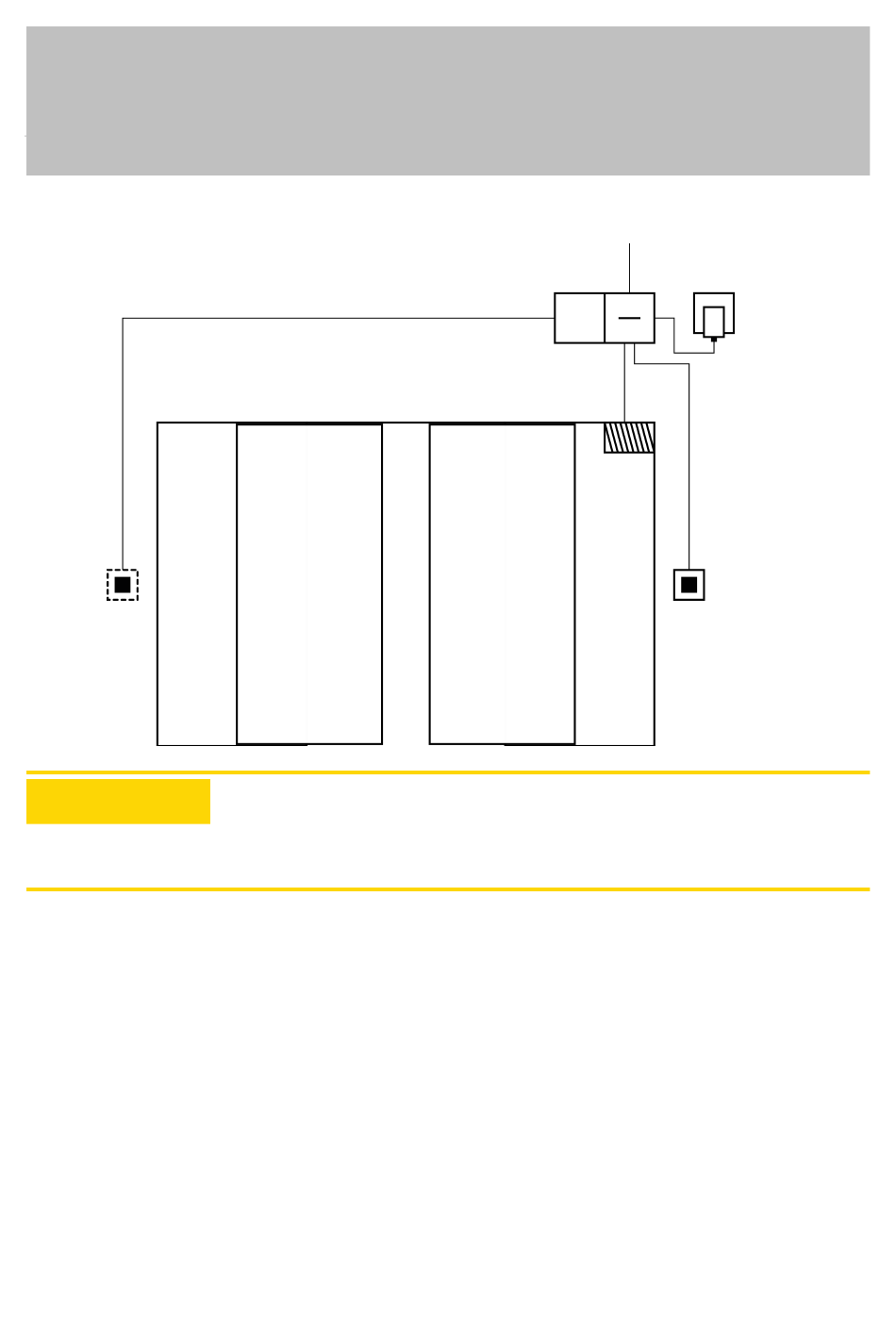

Ethernet connection to LSM
Optional PoE instead of PSU
Controller with relay output
in the protected area
Elec. connection to electric
strike (e.g. sliding door)
