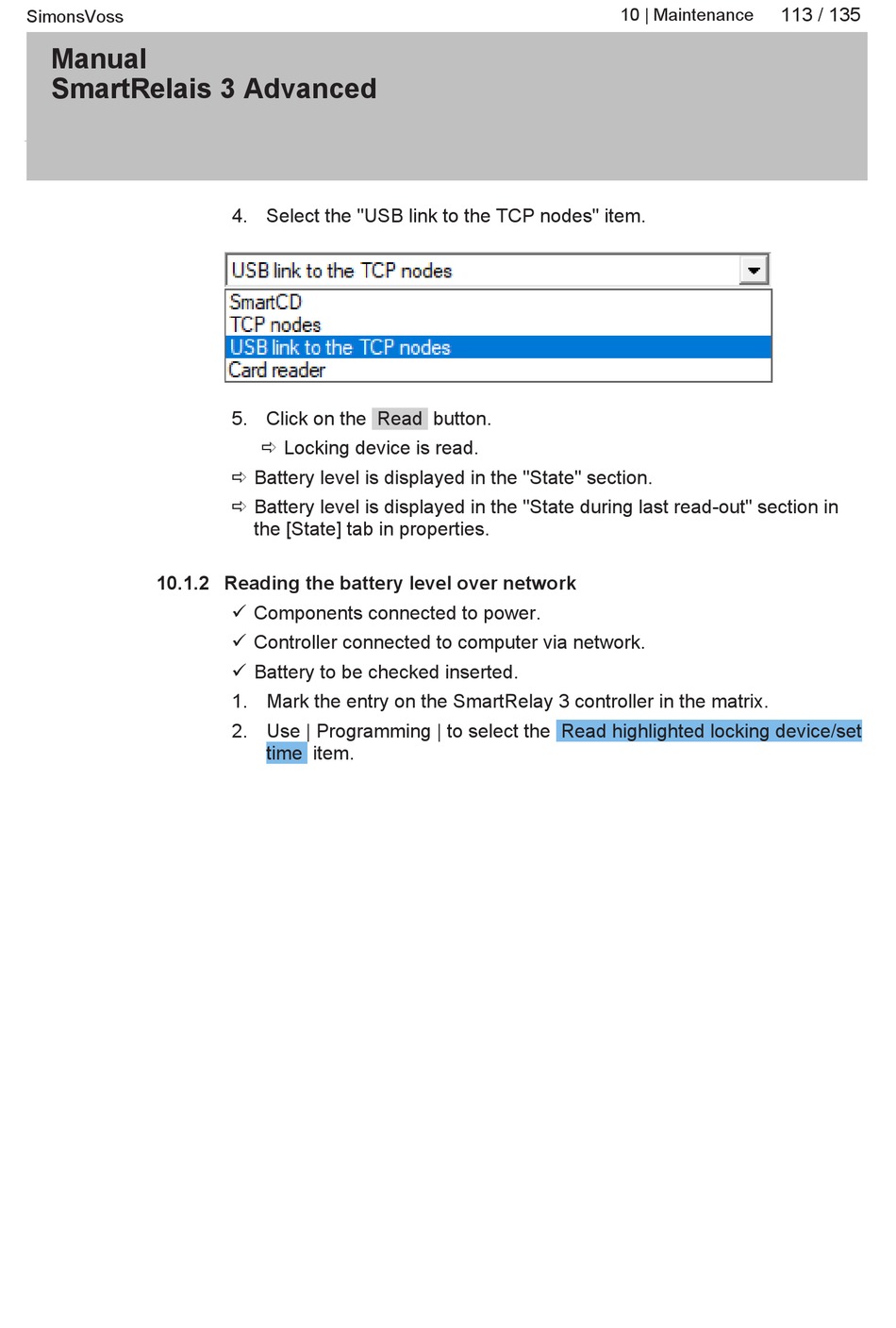

10.1.2 Reading the battery level over network

4. Select the "USB link to the TCP nodes" item.
5. Click on the Read button.
ð Locking device is read.
ð Battery level is displayed in the "State" section.
ð Battery level is displayed in the "State during last read-out" section in
the [State] tab in properties.
ü Components connected to power.
ü Controller connected to computer via network.
ü Battery to be checked inserted.
1. Mark the entry on the SmartRelay 3 controller in the matrix.
2. Use | Programming | to select the Read highlighted locking device/set
time item.
10 | Maintenance 113 / 135
