SimonsVoss
Manual
SmartRelais 3 Advanced

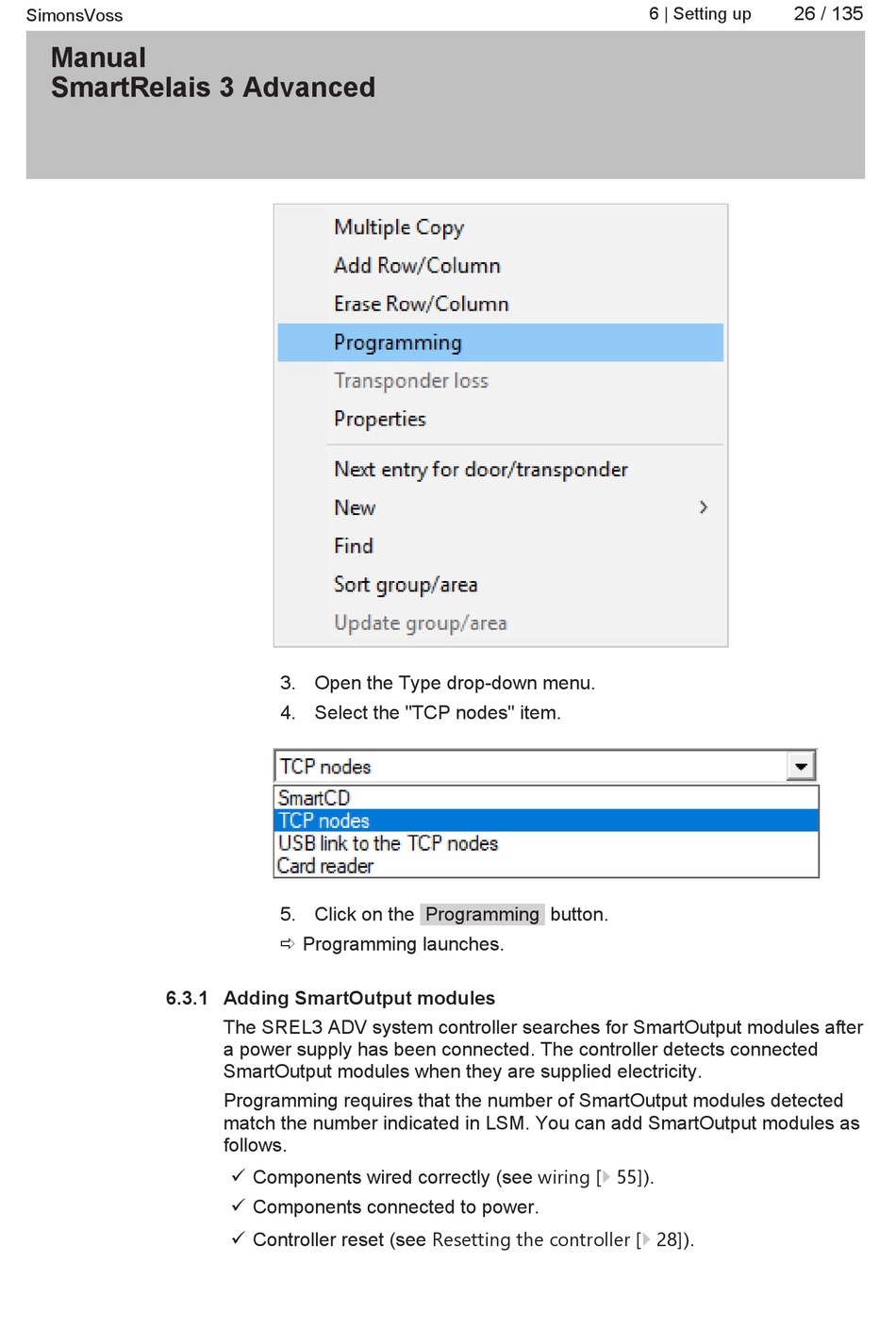

6.3.1 Adding SmartOutput modules

3. Open the Type drop-down menu.
4. Select the "TCP nodes" item.
5. Click on the Programming button.
ð Programming launches.
The SREL3 ADV system controller searches for SmartOutput modules after
a power supply has been connected. The controller detects connected
SmartOutput modules when they are supplied electricity.
Programming requires that the number of SmartOutput modules detected
match the number indicated in LSM. You can add SmartOutput modules as
follows.
ü Components wired correctly (see wiring [} 55]).
ü Components connected to power.
ü Controller reset (see Resetting the controller [} 28]).
6 | Setting up 26 / 135
