SimonsVoss
Manual
SmartRelais 3 Advanced

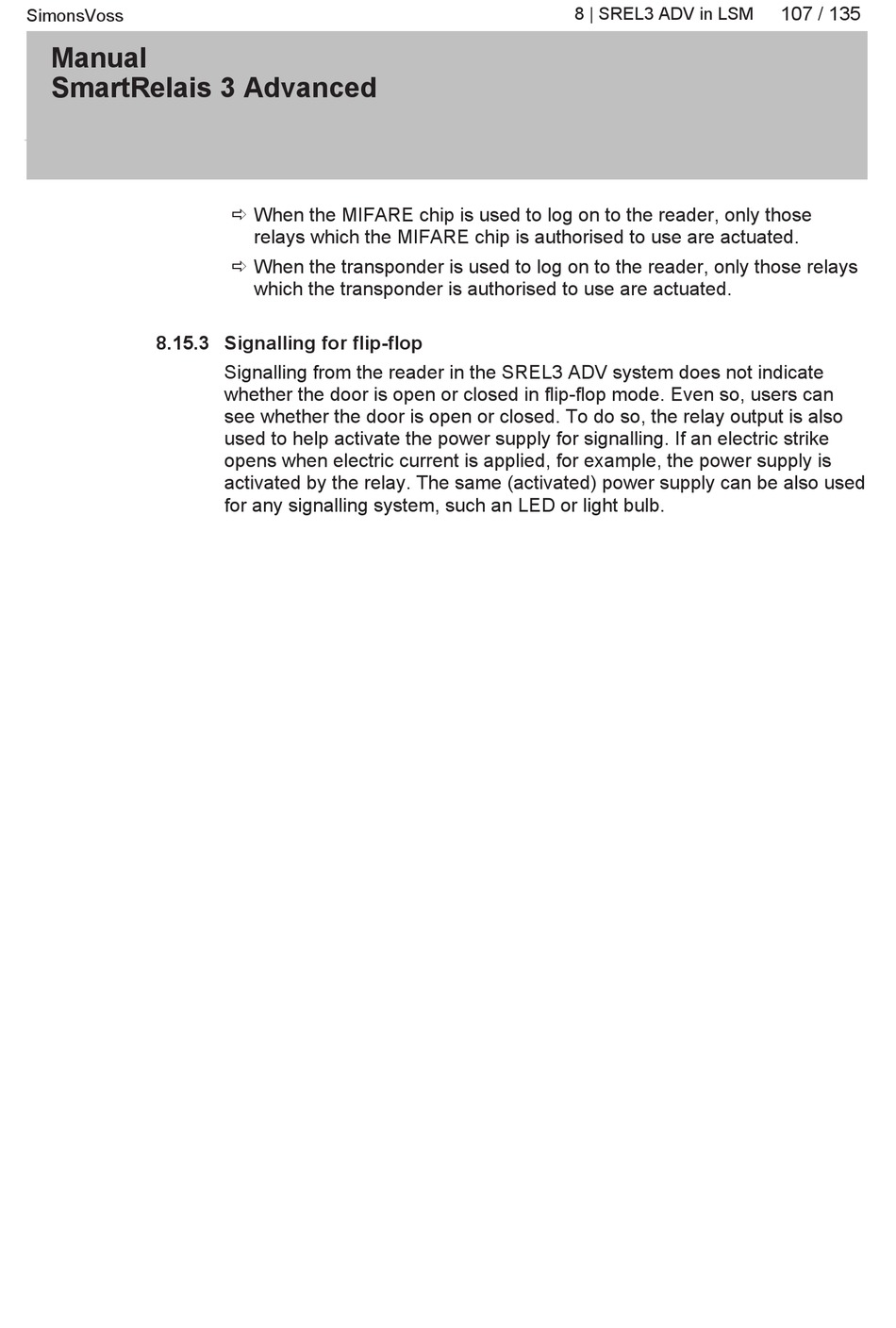

8.15.3 Signalling for flip-flop

ð When the MIFARE chip is used to log on to the reader, only those
relays which the MIFARE chip is authorised to use are actuated.
ð When the transponder is used to log on to the reader, only those relays
which the transponder is authorised to use are actuated.
Signalling from the reader in the SREL3 ADV system does not indicate
whether the door is open or closed in flip-flop mode. Even so, users can
see whether the door is open or closed. To do so, the relay output is also
used to help activate the power supply for signalling. If an electric strike
opens when electric current is applied, for example, the power supply is
activated by the relay. The same (activated) power supply can be also used
for any signalling system, such an LED or light bulb.
8 | SREL3 ADV in LSM 107 / 135
