SimonsVoss
Manual
SmartRelais 3 Advanced
Line
1
2
3
4
Lift
electronics

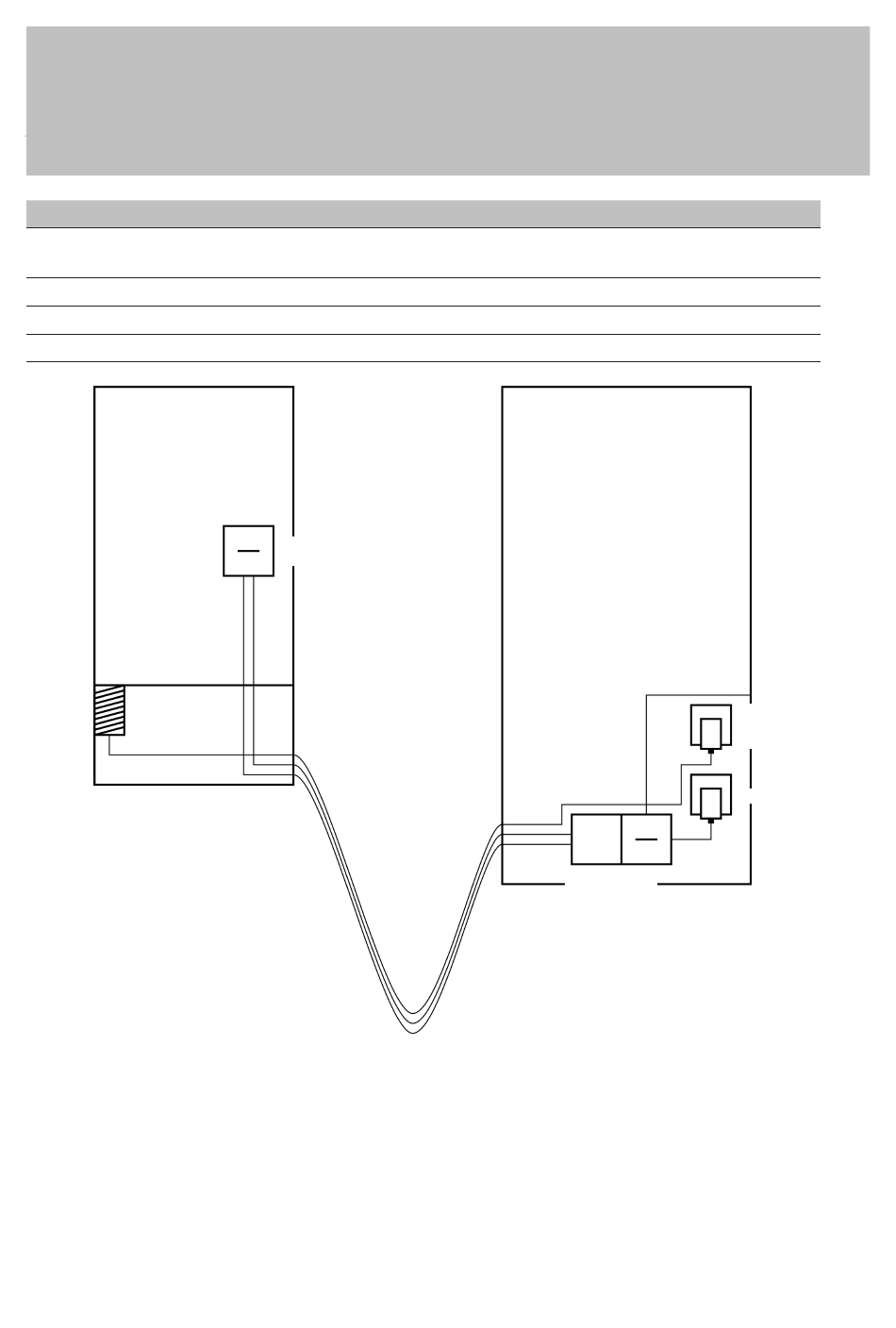

Insert: Controller-fed
reader with SmartOut-
put module
Use
Earth connection between controller and
reader
Positive terminal on the power supply
Controller – reader: Data line A
Controller – reader Data line B
Reader in
the unprotected area
Trailing cable
See Power supply through the controller [} 74] on wiring.
The controller powers the reader. Connected SmartOutput modules
are powered via an additional power supply unit at the other end of
the trailing cable. Nine free lines are required in the trailing cable in
addition to the existing lines.
The reader and its connection to the controller do not need to be
removed. This means it is possible to retrofit SmartOutput modules to
an existing connection.
6 | Setting up
Ethernet connection to LSM
Optional PoE instead of PSU
Controller in the
protected area
47 / 135
Power
supply for
lift cab
External PSU
