Simons Voss Technologies SmartRelais 3 Advanced Manual page 73

SimonsVoss
Manual
SmartRelais 3 Advanced
-
+
1(1)
<
1(2)
2(1)
<
2(2)
+1
-
B1
A1
+2
-
B2
Controller
A2
+3
-
B3
A3
O4
O3
O2
O1
O+
I3
I2
I1
-
I+

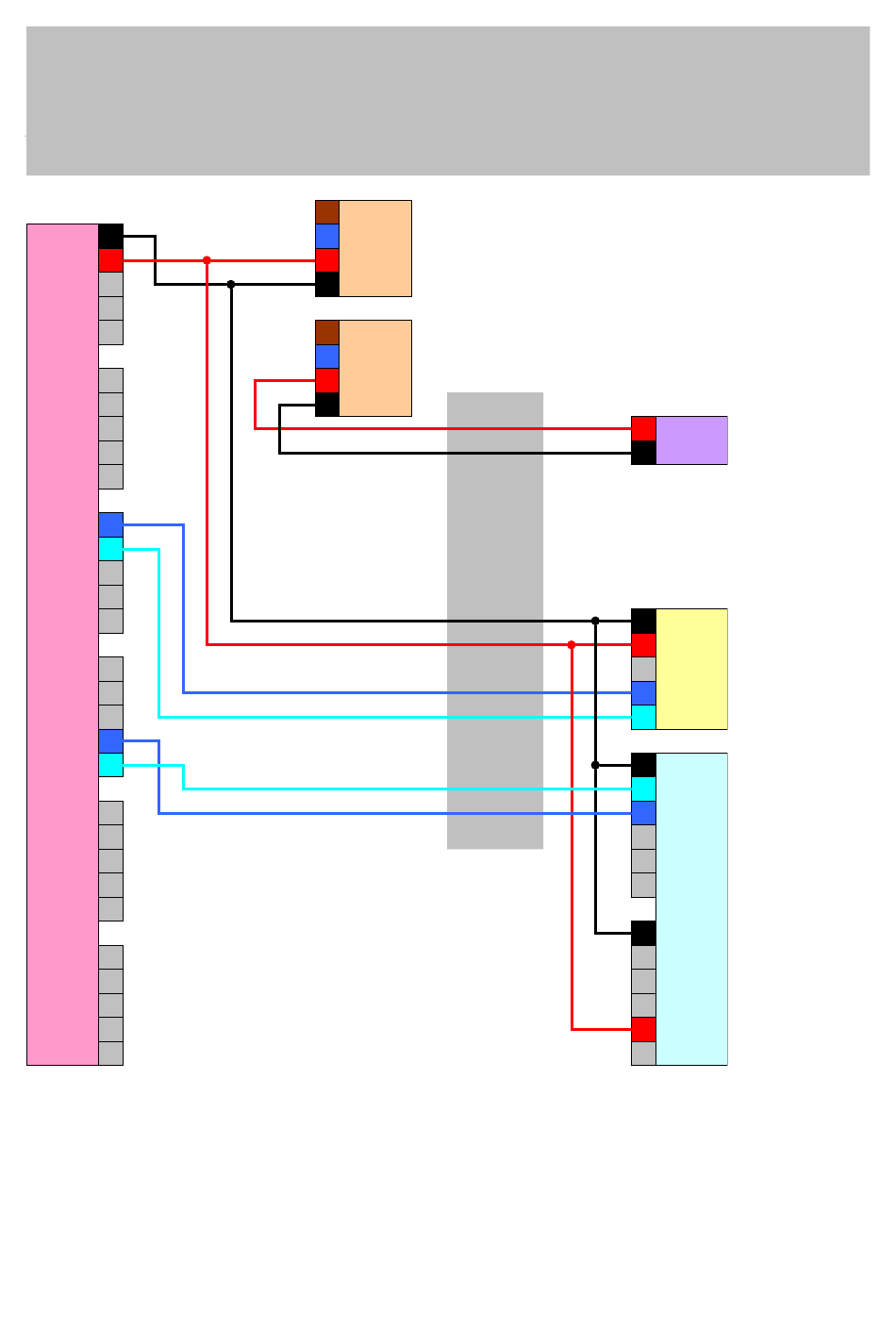

Option 2: Own power
supply unit for reader
and SmartOutput mod-
ule
L
N
Power
supply unit
+
-
L
N
Power
supply unit
+
-
This configuration requires a separate power supply unit for the
reader and SmartOutput modules. The earth systems in the
controller, power supply unit and reader/SmartOutput modules must
be interconnected to establish a common reference potential for data
transmission.
Trailing cable
6 | Setting up 73 / 135
+
Lift
electronics
-
-
+
- Reader
B
A
C
A
B
I+
I-
Out
SOM
-
A-
K1
A+
+
K2
