Reference Arc - Set-
out
Apps
Field Option
None
Equal
Start Arc
Start & End
Arc Length Editable field
Chord Editable field
Length
Angle Editable field
Next step
Press Cont to proceed to measurement mode.
The signs for the distance and angle differences are correction values (required
minus actual). The arrows indicate the direction to move to get to the stake
out point.
☞ To allow a better visibility, for example if the arc is very long and the
target close to the line, the scale for x and y can be different in the
graphic. If the instrument is far off the arc, the instrument in the
graphic is placed in the corner and marked red/grey.

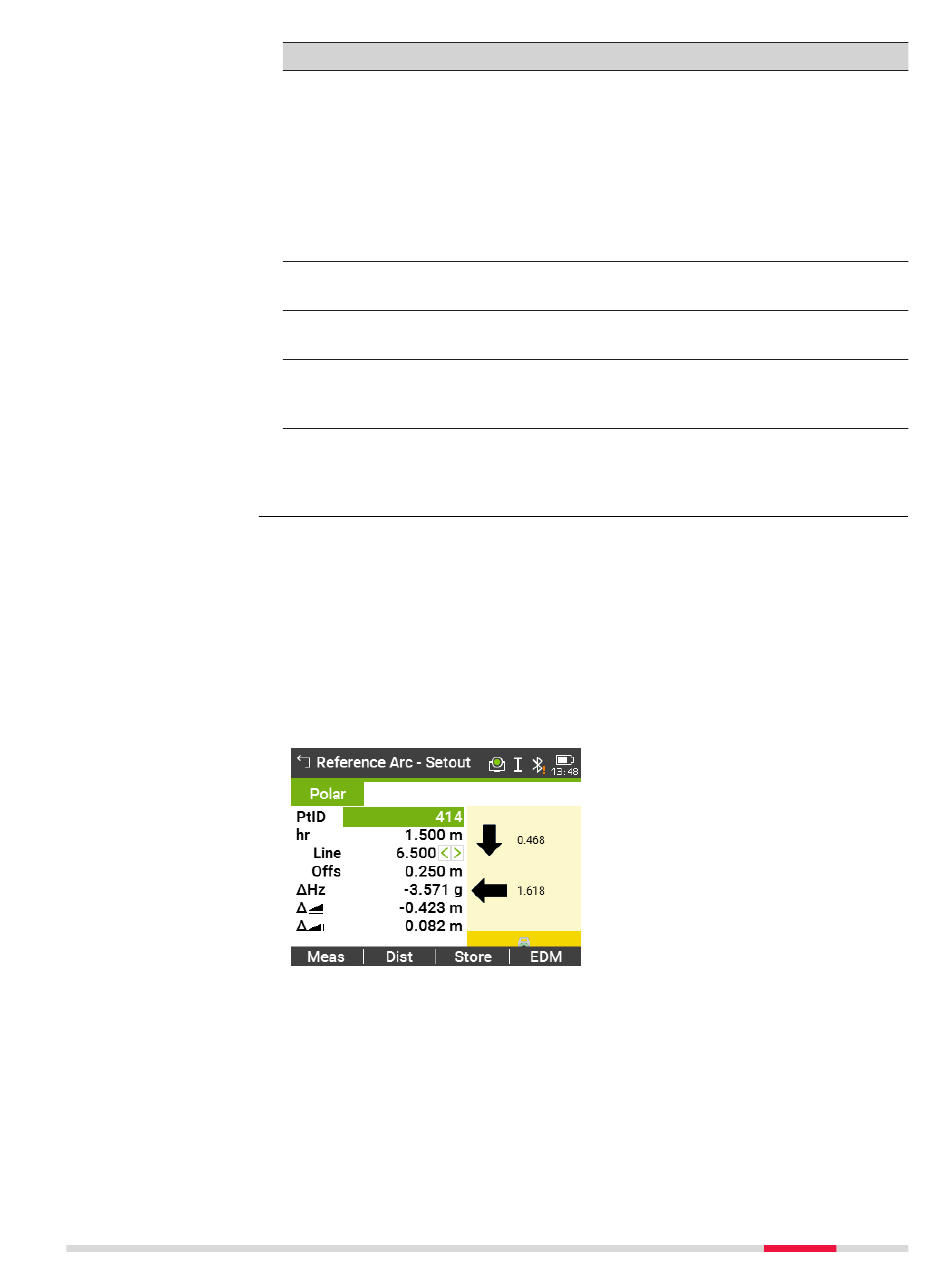

To define the next point to be staked out, type in a point ID, the reflector
height, the distance along the arc and an offset.
Description
All of the misclosure will be added to the last
arc-section.
The misclosure will be equally distributed
between all sections.
All of the misclosure will be added to the
first arc-section.
The misclosure will be added half to the first
arc-section and half to the last arc-section.
For stakeout arc: The length of the arc-seg-
ment to stake out.
For stakeout chord: The length of the chord
to stake out.
For stake out angle: The angle around the
center point of the arc, of the points to be
staked out.
