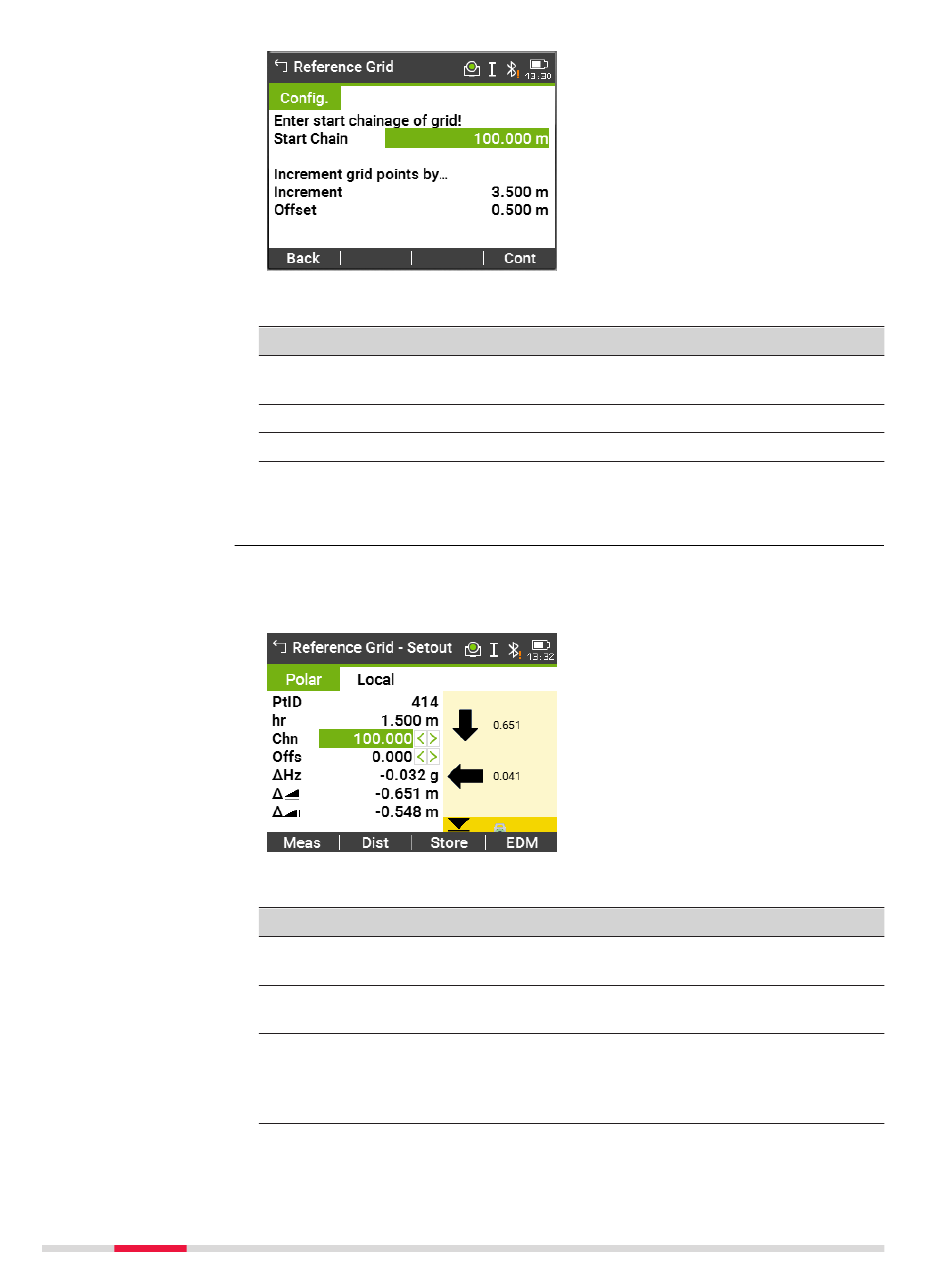

Reference Grid - Set-
out
90
Description of fields
Field Options
Start Chain Editable field
Increment Editable field
Offset Editable field
Next step
Press Cont to proceed to the Reference Grid - Setout screen.
The signs for the distance and angle differences are correction values (required
minus actual). The arrows indicate the direction to move to get to the stake
out point.
Description of fields
Field Option
Chn Selectable
field
Offs Selectable
field
Display only
ΔHz
Description
Distance from the reference line start point
to the beginning grid start point.
Length of incrementation.
Offset distance from the reference line.
Description
The chainage of the grid stakeout point.
Offset increment values. The stake out point
is to the right of the reference line.
Horizontal direction from the measured point
to stake out point. Positive if the telescope
must be turned clockwise to the stake out
point.
