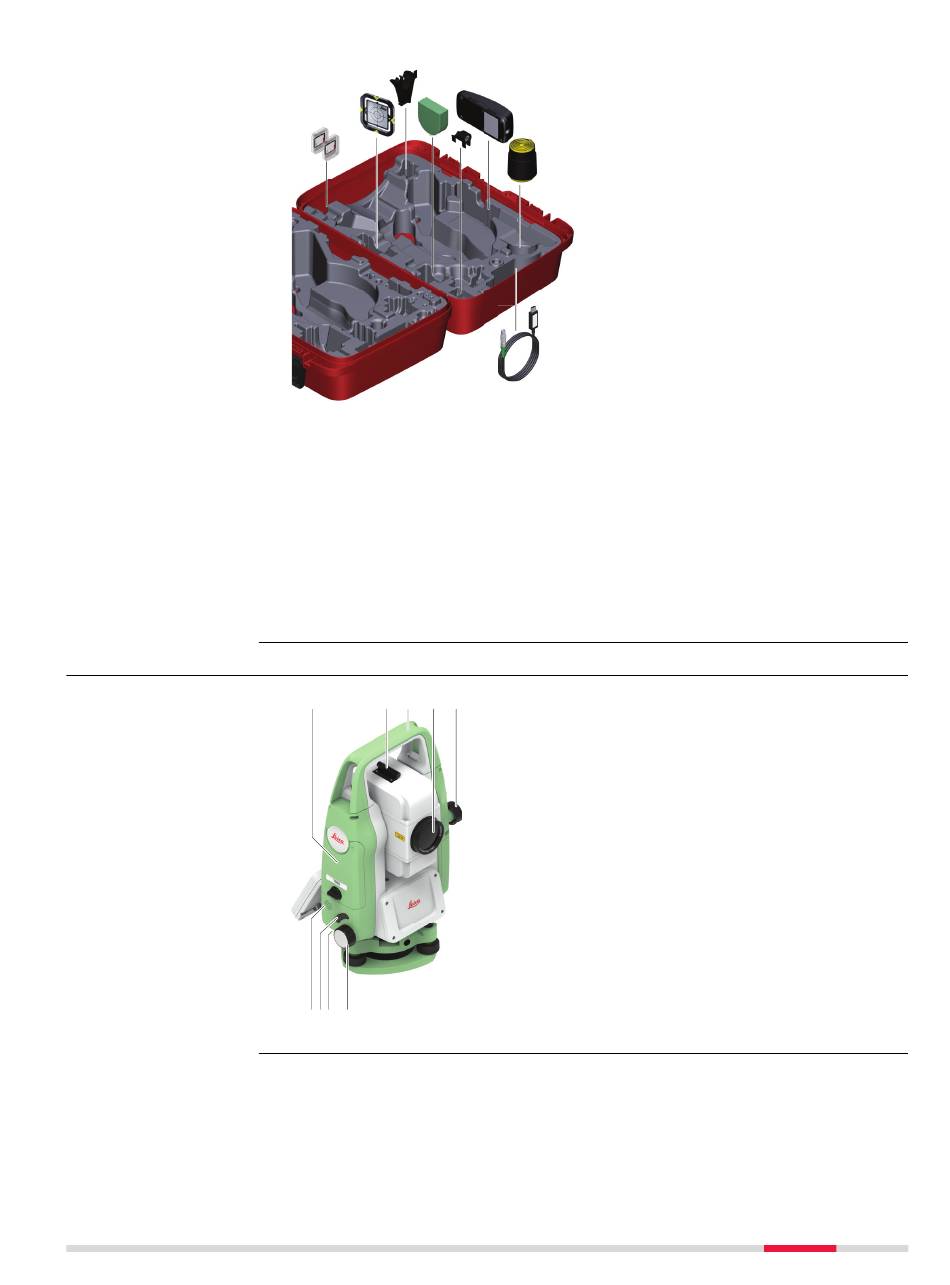

Container contents
part 2 of 2
2.3
TS03
Instrument
components
part 1 of 2
Description of the System
c
b
d
a
e
0016355_001
a SD card
b CPR105 flat prism*
c GHT196 holder for height metre*
d GHM007 height metre*
e GLI115 clip-on bubble*
f GKL311 charger
g Protective cover / Lens hood / Cleaning cloth
h Data cable
* Optional

Instrument Components

a b c d e
f g h i
0016318_001
f
g
h
a Compartment for SD card, USB memory stick
and USB cable ports
b Optical sight
c Detachable carrying handle with mounting
screw
d Objective with integrated Electronic Distance
Measurement (EDM). Exit for EDM laser
beam
e Vertical drive
f Loudspeaker
g Trigger key
h Serial interface RS232, located behind key-
board on rotation part
i Horizontal drive
23
