Front Panel Board

DSA8200 Digital Serial Analyzer and Modules Service Manual
Screwdriver
Screwdriver

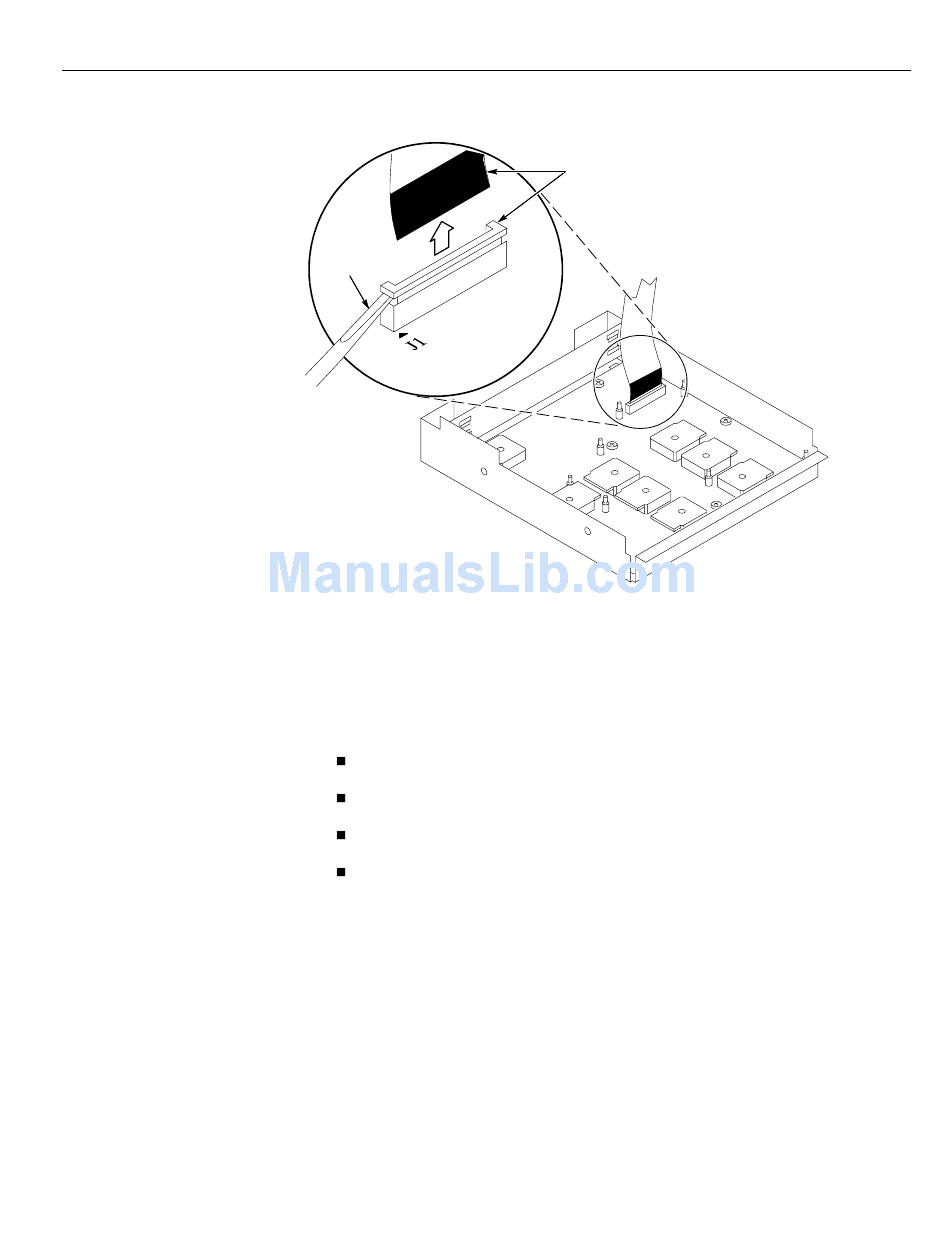

Figure 4- - 11: J1 flex cable connector removal
1. Locate module to be removed: Locate the Front Panel assembly Figure 4- -10,
page 4- -24. Additional modules to be removed:
Front Panel Knobs
Trim (front panel)
CD-RW/DVD drive and trim
Front Panel assembly
2. Remove the Front Panel board: See Figure 4- -12, page 4- -27.
a. Remove the eight T-15 Torxdrive screws that secure the Front panel
board to the Front panel assembly.
b. Pry the board up off the alignment studs. Place a flat bladed screwdriver
in the pry point access holes to pry the board up from the assembly.
c. Remove the board from the assembly.
3. Reinstallation: Do in reverse steps a through c to reinstall the front panel
board.
Removal and Installation Procedures
Black stripe
toward connector
4- - 25
