Tektronix DSA8200 Instructions Manual

Tektronix DSA8200 Instructions Manual

Digital serial analyzer declassification and security
Hide thumbs Also See for DSA8200:

Advertisement

Quick Links

Download this manual See also: Service Manual
xx

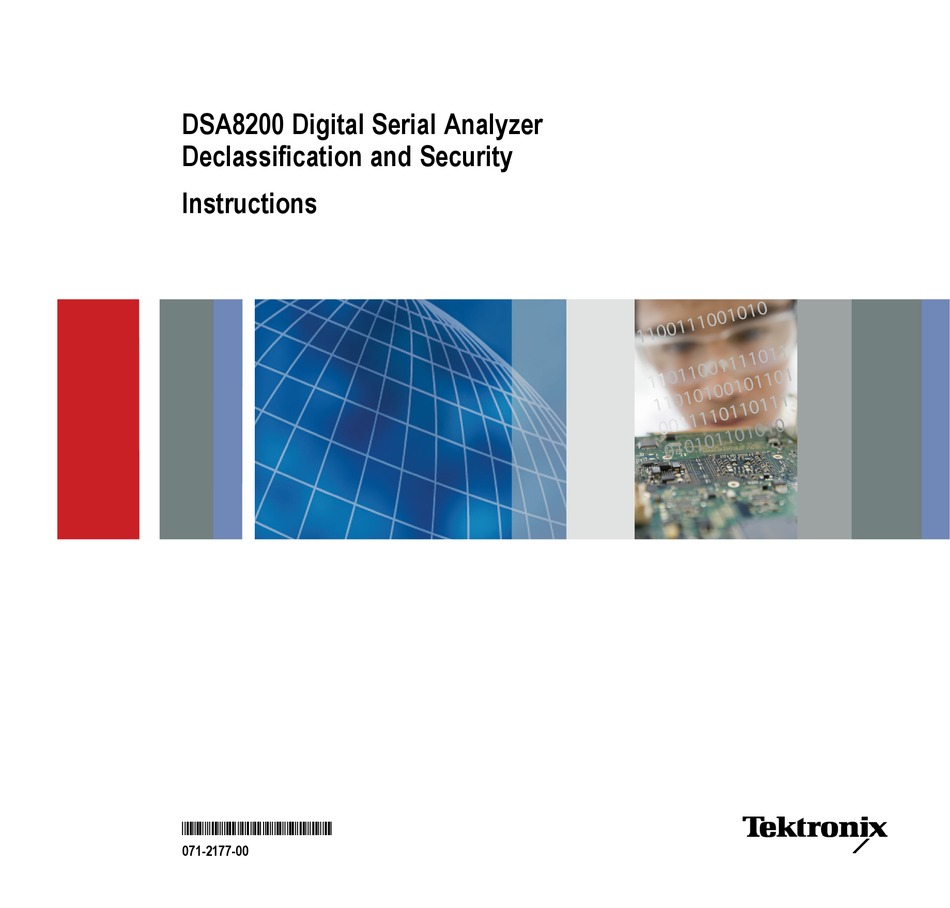

DSA8200 Digital Serial Analyzer
Declassification and Security
ZZZ
Instructions
*P071217700*
071-2177-00

Advertisement

loading

Related Manuals for Tektronix DSA8200

Summary of Contents for Tektronix DSA8200

  • Page 1 DSA8200 Digital Serial Analyzer Declassification and Security Instructions *P071217700* 071-2177-00...
  • Page 3 DSA8200 Digital Serial Analyzer Declassification and Security Instructions www.tektronix.com 071-2177-00...
  • Page 4 Copyright © Tektronix. All rights reserved. Licensed software products are owned by Tektronix or its subsidiaries or suppliers, and are protected by national copyright laws and international treaty provisions. Tektronix products are covered by U.S. and foreign patents, issued and pending. Information in this publication supersedes that in all previously published material.

  • Page 5: Table Of Contents

    Clear and Sanitize Procedures..................Memory Devices....................How to Recover from Clearing 80Cxx Module Settings for User Wavelengths and Scales... Data Export Devices................... Built-In Security Features ..................Troubleshooting....................How to Clear or Sanitize a Non-Functional Instrument ..........DSA8200 Declassification and Security...
  • Page 6 Table of Contents DSA8200 Declassification and Security...

  • Page 7: Preface

    This document helps customers with data security concerns to clear or remove memory devices from the DSA8200 and modules. The DSA8200 mainframes contain an open architecture PC with removable hard drive. All user storable data, such as waveforms, instrument settings, and screen shots, are stored on the removable hard drive.
  • Page 8 Scrub. This is equivalent to sanitize. User-modifiable. The user can write to the memory device during normal instrument operation, using the instrument interface or remote control. Volatile memory. Data is lost when the instrument is powered off. DSA8200 Declassification and Security...

  • Page 9: Clear And Sanitize Procedures

    Windows CD RW / Microsoft Front of Remove all CDs. Rewritable drive 700 MB DVD peripheral Windows DSA8200 CDs can be formatted, stored in a secure area, or destroyed. Non-rewritable CDs can either be stored or destroyed. DSA8200 Declassification and Security...
  • Page 10 EEPROM 4 bytes Temperature sensor Not used 80Cxx Not applicable – no user data sampler boards DSA8200 Declassification and Security...
  • Page 11 For recovery at a later time, first write down the User Wavelength(s) and User Wavelength Scale(s), and store in a secure location. Perform the procedure Sanitize 80Cxx Module to Factory Default Settings for User Wavelength(s) and Scale(s). DSA8200 Declassification and Security...
  • Page 12 This procedure requires the use of one of the programmable interfaces to the instrument (such as GPIB) and the use of programmable interface commands. Connectivity and programmability information is provided within the online help of the oscilloscope application. DSA8200 Declassification and Security...
  • Page 13 TEKPHW:CH1:DOUBLE “OPTSCALE”,2,18 80C02 TEKPHW:CH1:LONG “OPTWAVEL”,2,1000 TEKPHW:CH1:DOUBLE “OPTSCALE”,2,18 80C07B TEKPHW:CH1:LONG “OPTWAVEL”,4,1550 TEKPHW:CH1:DOUBLE “OPTSCALE”,4,780 80C08C TEKPHW:CH1:LONG “OPTWAVEL”,4,1550 TEKPHW:CH1:DOUBLE “OPTSCALE”,4,315 80C10 TEKPHW:CH1:LONG “OPTWAVEL”,1,1550 TEKPHW:CH1:DOUBLE “OPTSCALE”,1,15 TEKPHW:CH1:LONG “OPTWAVEL”,3,1310 TEKPHW:CH1:DOUBLE “OPTSCALE”,3,10 80C11 TEKPHW:CH1:LONG “OPTWAVEL”,2,1550 TEKPHW:CH1:DOUBLE “OPTSCALE”,2,30 80C12 TEKPHW:CH1:LONG “OPTWAVEL”,3,1550 TEKPHW:CH1:DOUBLE “OPTSCALE”,3,315 DSA8200 Declassification and Security...

  • Page 14: How To Recover From Clearing 80Cxx Module Settings For User Wavelengths And Scales

    80C01 TEKPHW:CH1:LONG “OPTWAVEL”,2,<pre-recorded wavelength value> TEKPHW:CH1:DOUBLE “OPTSCALE”,2,<pre-recorded scale value> 80C02 TEKPHW:CH1:LONG “OPTWAVEL”,2,<pre-recorded wavelength value> TEKPHW:CH1:DOUBLE “OPTSCALE”,2,<pre-recorded scale value> 80C07B TEKPHW:CH1:LONG “OPTWAVEL”,4,<pre-recorded wavelength value> TEKPHW:CH1:DOUBLE “OPTSCALE”,4,<pre-recorded scale value> 80C08C TEKPHW:CH1:LONG “OPTWAVEL”,4,<pre-recorded wavelength value> TEKPHW:CH1:DOUBLE “OPTSCALE”,4,<pre-recorded scale value> DSA8200 Declassification and Security...
  • Page 15 Programmable interface commands 80C10 TEKPHW:CH1:LONG “OPTWAVEL”,1,<pre-recorded wavelength value> TEKPHW:CH1:DOUBLE “OPTSCALE”,1,<pre-recorded scale value> TEKPHW:CH1:LONG “OPTWAVEL”,3,<pre-recorded wavelength value> TEKPHW:CH1:DOUBLE “OPTSCALE”,3,<pre-recorded scale value> 80C11 TEKPHW:CH1:LONG “OPTWAVEL”,2,<pre-recorded wavelength value> TEKPHW:CH1:DOUBLE “OPTSCALE”,2,<pre-recorded scale value> 80C12 TEKPHW:CH1:LONG “OPTWAVEL”,3,<pre-recorded wavelength value> TEKPHW:CH1:DOUBLE “OPTSCALE”,3,<pre-recorded scale value> DSA8200 Declassification and Security...

  • Page 16: Data Export Devices

    Mouse Interfaces (2 each) Second Windows second monitor port Rear panel monitor out Scope out Scope VGA out Rear panel External Windows line out audio Rear panel audio port GPIB Transfer data Rear panel connector DSA8200 Declassification and Security...
  • Page 17 (2 Communications will stop if probe is probe host each, except 80E01, removed. interfaces which is 1 each) (6 slots, 1 or 2 each) During normal instrument operation. Future software releases may support this feature. DSA8200 Declassification and Security...
  • Page 18 Clear and Sanitize Procedures DSA8200 Declassification and Security...

  • Page 19: Built-In Security Features

    Built-In Security Features Neither the DSA8200 nor any of the modules covered in this document contain any built-in security features. DSA8200 Declassification and Security...
  • Page 20 Built-In Security Features DSA8200 Declassification and Security...

  • Page 21: Troubleshooting

    Sanitize 80Cxx Module to Factory Default Settings for User Wavelength(s) and Scale(s) located under the Clear and Sanitize Procedures to sanitize user wavelength(s) and scale factor(s). Turn off the power for at least 20 seconds to clear volatile memory. DSA8200 Declassification and Security...
