Figure 4- -34: Processor Board Removal 4 - Tektronix DSA8200 Service Manual

Digital serial analyzer and modules
Hide thumbs Also See for DSA8200:
Table of Contents

Advertisement

DSA8200 Digital Serial Analyzer and Modules Service Manual
Memory board
T-15 Torxdrive screw (7)
To J182
Front power
distribution board
Rear power
distribution board
To J611

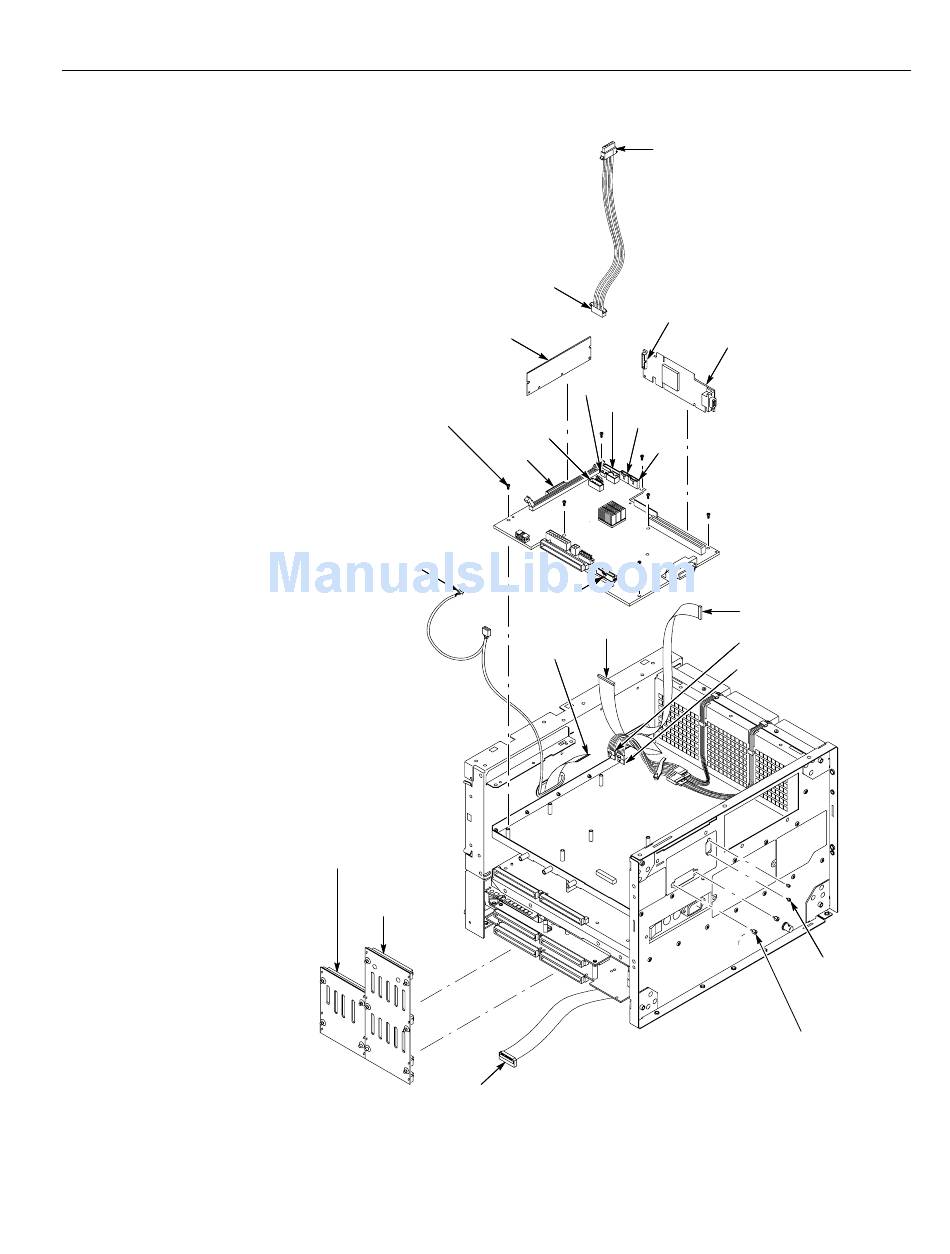

Figure 4- - 34: Processor board removal
Removal and Installation Procedures
To P1 on drive
interface board
To J180
J205
J182
J290
J291
J180
J390
J150
J611
To J290
To J150
Bridge board
To J205
To J291
To J390
VGA securing
nut (2)
GPIB securing
nut (2)
4- - 57
