Tektronix DSA8200 Service Manual page 157

80A02 Block Diagram
To
oscilloscope
To DUT
RF
Relay
GND
Probe pressure
sense input
Automated test
control login

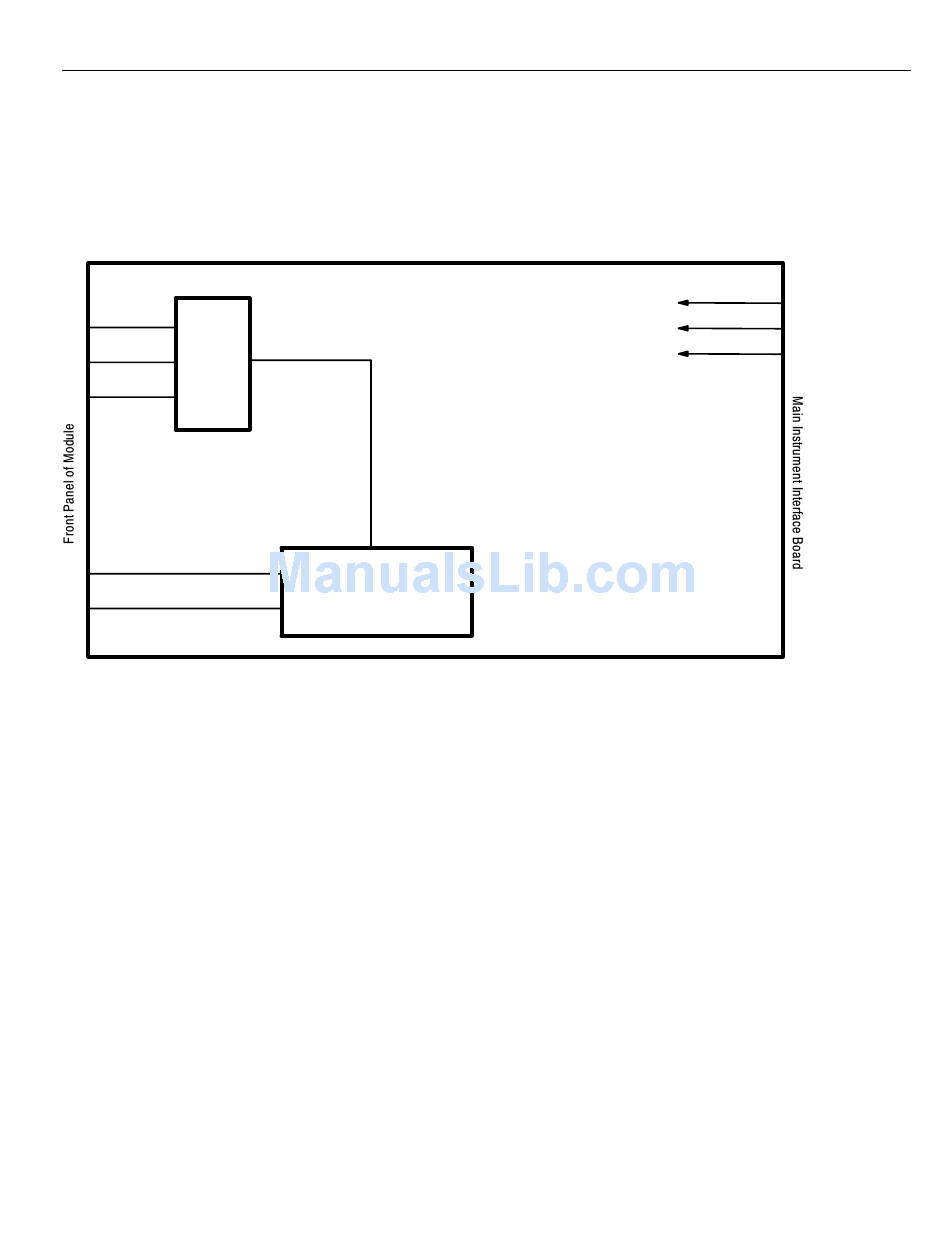

Figure 5- 4: 80A02 block diagram
DSA8200 Digital Serial Analyzer and Modules Service Manual
Figure 5- -4 shows the interconnections between major circuit blocks of the
80A02 module.
RF relay engaging
command detecting circuit
Diagrams
+15 V
+5 V
GND
5- 5
