USB Assembly

DSA8200 Digital Serial Analyzer and Modules Service Manual
1. Locate module to be removed: Locate the USB assembly in the locator
diagram Internal Modules, Figure 4- -8, page 4- -20.
2. Orient the instrument: Set the instrument so its bottom is down on the work
surface and its front panel is facing you.
3. Remove the USB assembly: See Figure 4- -18, page 4- -33.
a. Detach the J1 cable.
b. Remove the T-15 Torxdrive screw.
c. Pull the USB assembly toward you to detach it from the instrument.
4. Reinstallation: Do in reverse steps 3a through 3 to reinstall the USB
assembly.

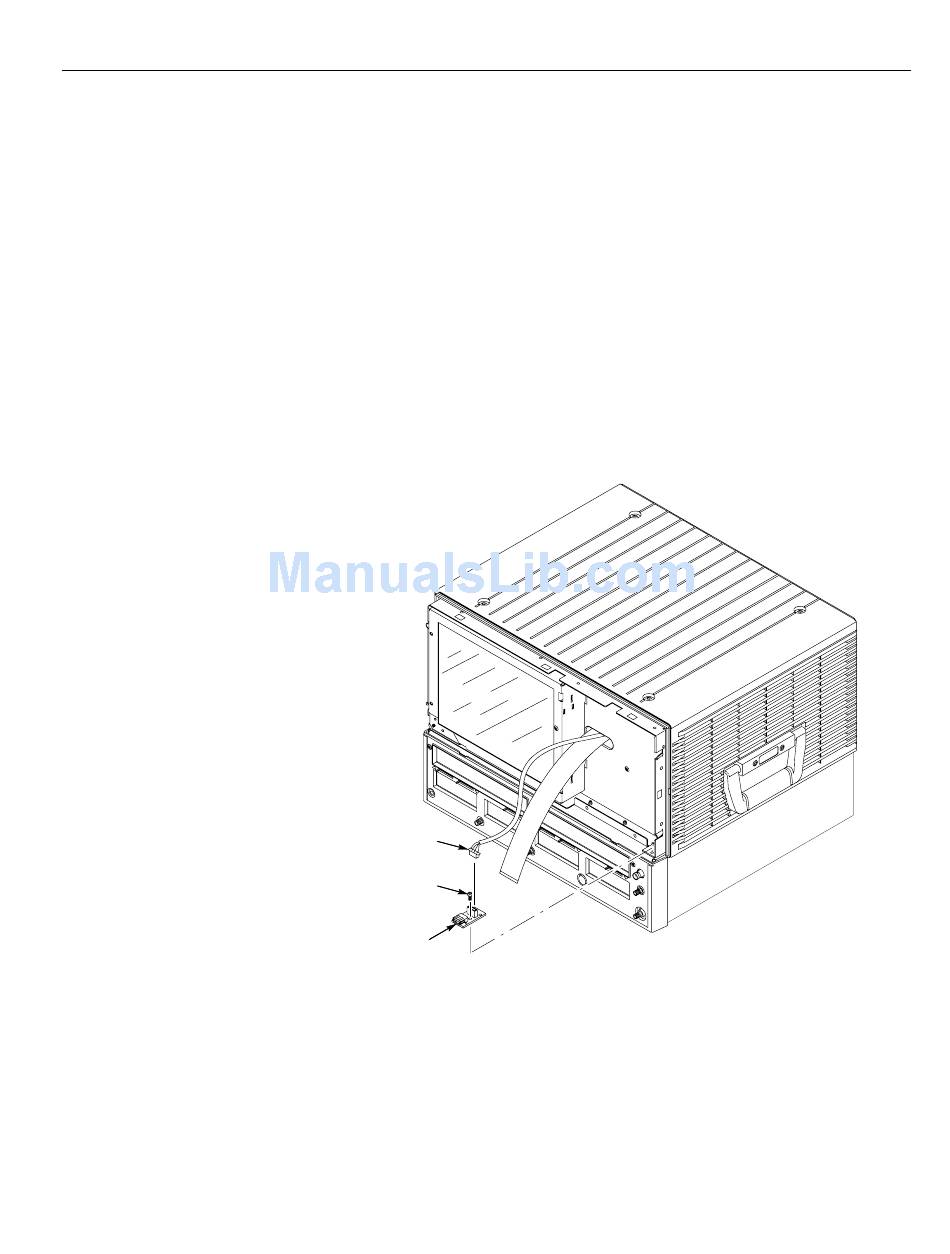

J1 cable
T--15 Torxdrive screw
USB assembly
Figure 4- - 18: USB assembly removal
Removal and Installation Procedures
4- - 33
