Summary of Contents for Tektronix 82A00

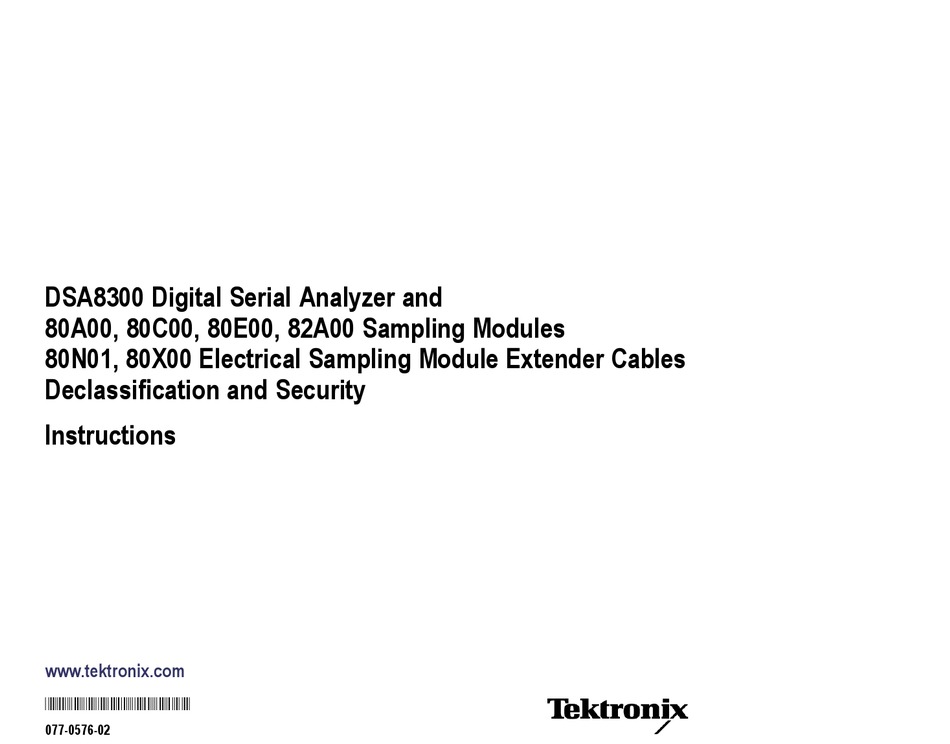

- Page 1 DSA8300 Digital Serial Analyzer and 80A00, 80C00, 80E00, 82A00 Sampling Modules 80N01, 80X00 Electrical Sampling Module Extender Cables Declassification and Security Instructions www.tektronix.com *P077057602* 077-0576-02...
- Page 2 Copyright © Tektronix. All rights reserved. Licensed software products are owned by Tektronix or its subsidiaries or suppliers, and are protected by national copyright laws and international treaty provisions. Tektronix products are covered by U.S. and foreign patents, issued and pending. Information in this publication supersedes that in all previously published material.
-
Page 3: Table Of Contents
Table of Contents Preface ................................Clear and sanitize procedures ............................. Memory devices ............................... Media and data export devices ..........................Troubleshooting..............................How to clear or sanitize a nonfunctional instrument...................... How to clear or sanitize a working 80C00 series module ....................How to clear or sanitize a nonfunctional module ......................How to clear or sanitize unlisted modules ......................... - Page 4 Table of Contents DSA8300 Instrument, Sampling Modules Declassification and Security Instructions...
-
Page 5: Preface
NISPOM, DoD 5220.22–M, Chapter 8 ISFO Process Manual for Certification & Accreditation of Classified Systems under NISPOM Products The following Tektronix products are covered by this document: DSA8300 Digital Serial Analyzer 80A00 series Accessory plug-in modules 80C00 series Optical plug-in sampling modules... - Page 6 Preface Terms The following terms may be used in this document: Clear. This removes data on media/memory before reusing it in a secured area. All reusable memory is cleared to deny access to previously stored information by standard means of access. Erase.
-
Page 7: Clear And Sanitize Procedures
Clear and sanitize procedures Memory devices The following tables list the volatile and nonvolatile memory devices in the standard instrument and listed options. Detailed procedures to clear or sanitize these devices, if any, are shown following each table. Terminology The following terms are used in the tables in this section: User data –... - Page 8 Clear and sanitize procedures Table 1: Volatile memory devices: DSA8300 Type and Type of user Backed-up Method of Data Input User min. size Function info stored by battery modification method Location accessible To clear Process to sanitize PPC board: SDRAM Embedded Acquisition Indirectly...
- Page 9 To clear Process to sanitize All 80C00 Optical plug-in sampling modules, 80E00 Electrical plug-in sampling modules, 82A00 Phase Reference sampling modules, 80A00 Accessory plug-in modules, and 80N01 and 80X00 electrical sampling module extender cables None Table 3: Nonvolatile memory devices: DSA8300...
- Page 10 Clear and sanitize procedures Table 3: Nonvolatile memory devices: DSA8300 (cont.) Type of Type and user info Method of Data Input User min. size Function stored modification method Location accessible To clear To sanitize Temperature Temperature sense None Indirect Purchased Not applicable, does not contain Not applicable, does not contain PPC board U300,...
- Page 11 Clear and sanitize procedures Table 3: Nonvolatile memory devices: DSA8300 (cont.) Type of Type and user info Method of Data Input User min. size Function stored modification method Location accessible To clear To sanitize None Indirect Firmware EFE board Not applicable, does not contain Not applicable, does not contain Bootstrap ROM operations...
- Page 12 Clear and sanitize procedures Table 3: Nonvolatile memory devices: DSA8300 (cont.) Type of Type and user info Method of Data Input User min. size Function stored modification method Location accessible To clear To sanitize Display adapter: None None Display Adapter Not applicable, does not contain Not applicable, does not contain COACh3...
- Page 13 2 KB or serial number m24C64 EEPROM, 8 KB All 80C00 Optical plug-in sampling modules; 80E00 Electrical plug-in sampling modules; 80A06 Trigger Module; and 82A00 Phase Reference sampling modules Temperature Temperature sense None Indirect Purchased Not applicable, does contain user...
-
Page 14: Media And Data Export Devices
Clear and sanitize procedures Media and data export devices Table 5: Media and data export devices Type and min. Method of size Function modification Data Input method Location User accessible Process to disable Read - write Store and transport data directly User writeable Front panel. - Page 15 Tektronix. Alternately, there are DOD-approved scrubbing software packages available for the hard drive. Tektronix has no recommendations regarding the available packages. After the hard drive has been sanitized (scrubbed), reinstall the operating system and instrument software (in that order) using the DSA8300 Operating System Restore and Product Software restore media that came with the instrument.
- Page 16 Clear and sanitize procedures 3. Set USB Functions and USB Port Configure to Disabled. 4. Press Esc once to return to the main BIOS configuration menu. 5. Go to Security > Set Supervisor Password. 6. Press Enter. 7. Enter a password. Confirm the password by entering it again. Record the password and store it in a safe place for future use.
- Page 17 Clear and sanitize procedures 9. Repeat steps 6 through 8 for each USB Root Hub shown in the Device Manager window. Ignore the other USB-related items in this list. 10. Exit the Device Manager window. 11. Restart the instrument to implement the changes. NOTE.
- Page 18 Clear and sanitize procedures 4. Press Esc once to return to the main BIOS configuration menu. NOTE. If you do not use a BIOS password, the LAN can be reactivated by any user. 5. Press F10 and select OK to save changes and exit. The LAN system will be disabled and will no longer allow data traffic in or out.
-
Page 19: Troubleshooting
How to clear or sanitize a nonfunctional instrument If your instrument is not functioning, perform the following actions and return the instrument to Tektronix for repair. Describe the initial problem with the product. Tektronix will install replacement parts and then repair and return the instrument. -
Page 20: How To Clear Or Sanitize A Working 80C00 Series Module
Troubleshooting How to clear or sanitize a working 80C00 series module This section covers how to clear or sanitize a 80C01, 80C02, 80C07B, 80C08/B/C/D, 80C10/B/C, 80C11/B, 80C12/B, 80C14, 80C15, or 80C25GBE Optical Sampling Module nonvolatile memory. The nonvolatile memory in these products contains a single user storable instrument parameter (User Wavelength), composed of both a wavelength value and an associated scale factor value. - Page 21 Troubleshooting Table 6: Optical module user wavelength factory default values (cont.) Factory user Factory user wavelength wavelength Module Command setting scale setting 80C08/B/C 1550 TEKPHW:CH1:LONG? “OPTWAVEL”,4 TEKPHW:CH1:DOUBLE? “OPTSCALE”,4 80C08D 1550 TEKPHW:CH1:LONG? “OPTWAVEL”,3 TEKPHW:CH1:DOUBLE? “OPTSCALE”,3 1550 80C10/B, TEKPHW:CH1:LONG? “OPTWAVEL”,1 80C25GBE TEKPHW:CH1:DOUBLE? “OPTSCALE”,1 1310 TEKPHW:CH1:LONG? “OPTWAVEL”,3 TEKPHW:CH1:DOUBLE? “OPTSCALE”,3...
- Page 22 Troubleshooting To restore the user 1. Power down the instrument and insert the optical module into the upper left (CH1) or right (CH3) large slot. Use the appropriate channel number when sending commands to a module. wavelength factory default values 2.
-
Page 23: How To Clear Or Sanitize A Nonfunctional Module
The module can then be sent to a Tektronix Service Center for repair and recalibration. 80N01, or 80X00 80A06, 80N01, and 80X00 The 80A06, 80N01, and 80X00 modules do not contain any user data. Send the module to a Tektronix Service Center for repair and calibration. modules... -
Page 24: How To Clear Or Sanitize Unlisted Modules
Troubleshooting How to clear or sanitize unlisted modules Contact Tektronix Customer Support (www.tek.com) for help on clearing or sanitizing a supported DSA8300 sampling module that is not covered in this document. Hardware replacement charges Replacement of any missing hardware will be charged according to the rate at the time of replacement. -
Page 25: Change Log
Change log Change log Document part number Revision date Change description 077-0576-00 20110727 First release. Covers just the main DSA8300 instrument. 077-0576-00 20111114 Updated to verify/add information for new modules. Revision A 077-0576-01 20120828 Updated to verify/add information for new modules. Roll part number. Revision A 077-0576-02 20121219...
