80A00 And 82A00 Series Modules - Tektronix DSA8200 Service Manual

Removal and Installation Procedures
80A00 and 82A00 Series
Modules
4- - 78
1. Orient the module: Set the module so that its left side is down on the work
surface and its right side is facing you.
CAUTION. Static discharge can damage any semiconductor in the instrument or
sampling module. To prevent damage from static discharge wear wrist and foot
grounding straps while handling the module chassis. Service should be per-
formed in a static-free work station by a qualified service technician. Minimize
handling of static-sensitive components.
2. Remove the front panel: See Figure 4- -48, page 4- -78.
a. Remove two coaxial terminators on the front panel connectors.
b. Remove two Phillips screws that secure the front panel to the cover.
Remove the front panel.
Antistatic label
Front panel
Label

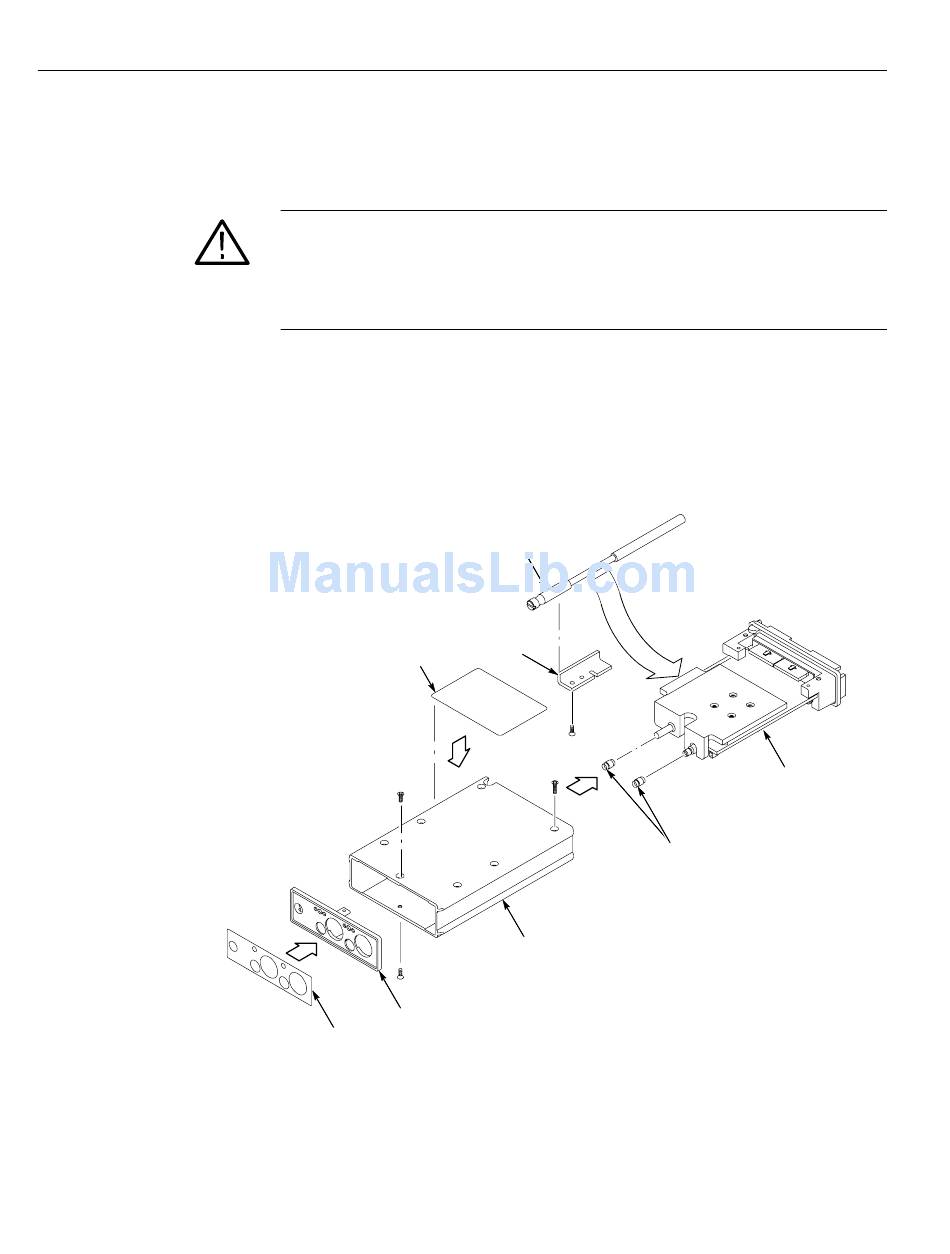

Figure 4- - 48: 80A00 and 82A00 series parts removal (80A01 shown)
DSA8200 Digital Serial Analyzer and Modules Service Manual
Lock-down shaft
Shaft bracket
Terminators
Cover
Chassis
