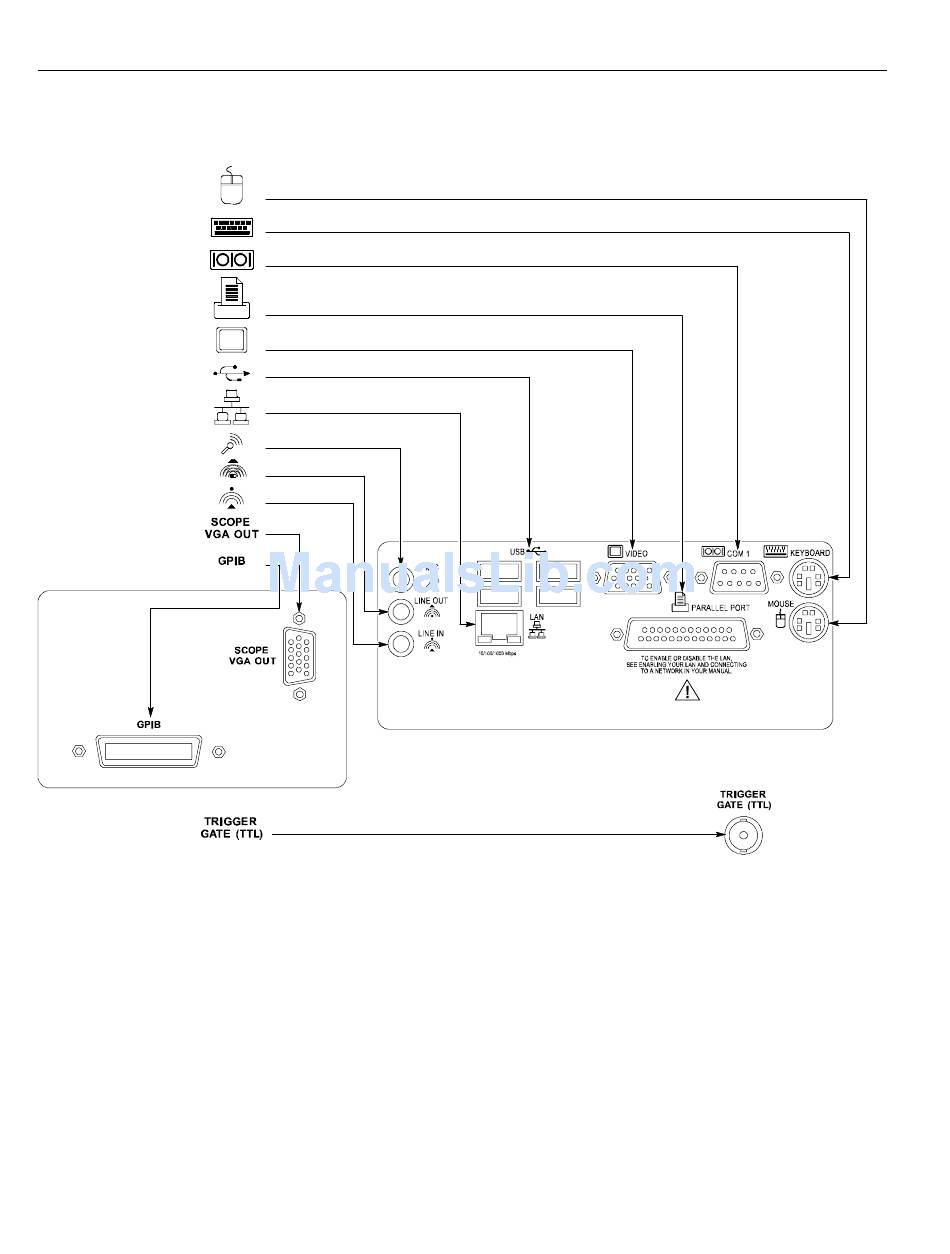

Figure 1- 2: Locations Of Peripheral Connectors On Rear Panel - Tektronix DSA8200 Service Manual

Installation
Description Icon/Label
1,2
PS2 mouse .................
1,2
PS2 keyboard ............
RS-232............................
Printer..............................
Monitor.............................
USB.................................
Network...........................
Audio line in....................
Audio line out..................
Audio line out..................
Monitor............................
GPIB................................
Gated trigger..................
1
Product ships with a USB keyboard that plugs into the USB port, and a USB mouse that plugs into the back of the keyboard.
2
Some instruments ship with the keyboard and mouse ports reversed.

Figure 1- 2: Locations of peripheral connectors on rear panel
