Optical Modules

DSA8200 Digital Serial Analyzer and Modules Service Manual
NOTE. For a 2 channel sampling module either channel can be specified in
step b. For an 80E01 sampling module use only the lower numbered channel
number such as CH1 or CH3.
c. SYSTem:PROTect ON
5. Verify the serial number change: Pull down the Utility menu and then select
System Properties, Sampling Modules. Click on the channel you want to
verify, such as C3 or C4. This display will confirm the sampling module
serial number.
1. Orient the optical sampling module: Set the optical sampling module so its
left side is down on the work surface and its right side is facing you.
2. Remove the cover: See Figure 4- -47.
a. Remove the seven T-10 Torxdrive screws (80C02 has eleven T-10
Torxdrive screws, four T-10 Torxdrive screws on the top cover) that
secure the cover to the module chassis.
b. Lift the rear of the cover up and slide back about
non-optical connector side up toward the optical connector side.
c. Remove the cover from the chassis.
3. Reinstallation: Do in reverse steps a through f to reinstall the front panel
assembly.
Locking tab
Optical connector

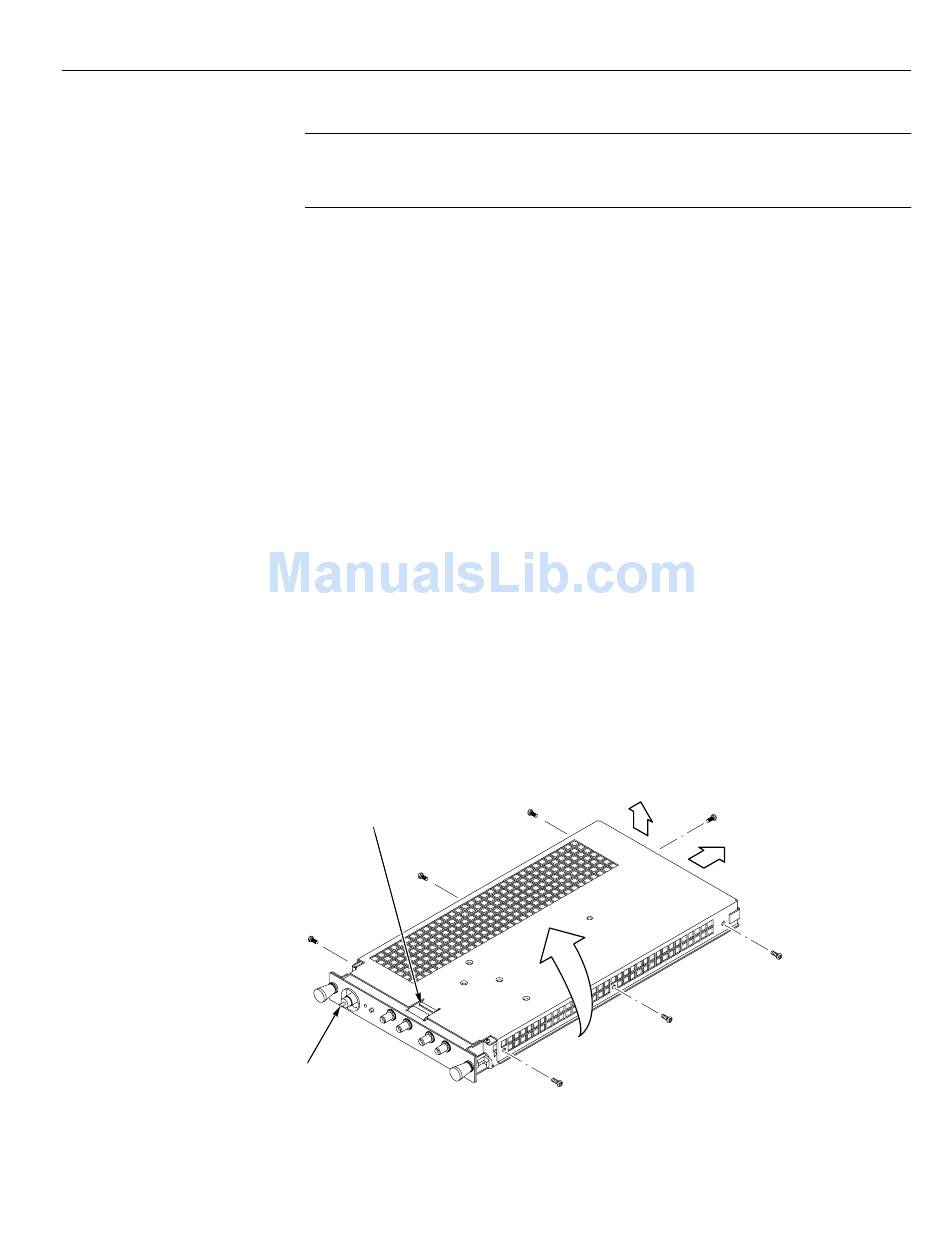

Figure 4- - 47: Optical module cover removal
Removal and Installation Procedures
1
/
2
1: Lift back edge of
the cover to clear
the rear connector
2: Slide the cover back to
free the locking tab at the
front edge of the cover
3: Rotate and lift
cover from module
inch, then lift the
4- - 77
