Removal and Installation Procedures
4- - 30
a. Disconnect J1, J6, and J7 cables from the Display Adapter board.
b. Slide the clip off the connector (at J4).
c. Disconnect J4 cable from the Display Adapter board.
d. Remove the two T-15 Torxdrive screws that secure the Display Adapter
circuit board to the Display assembly. Remove the Display Adapter from
the assembly.
3. Reinstallation: Do in reverse steps 2a through 2d to reinstall the board.
Display module
To CN2
Back view
Display
inverter
board

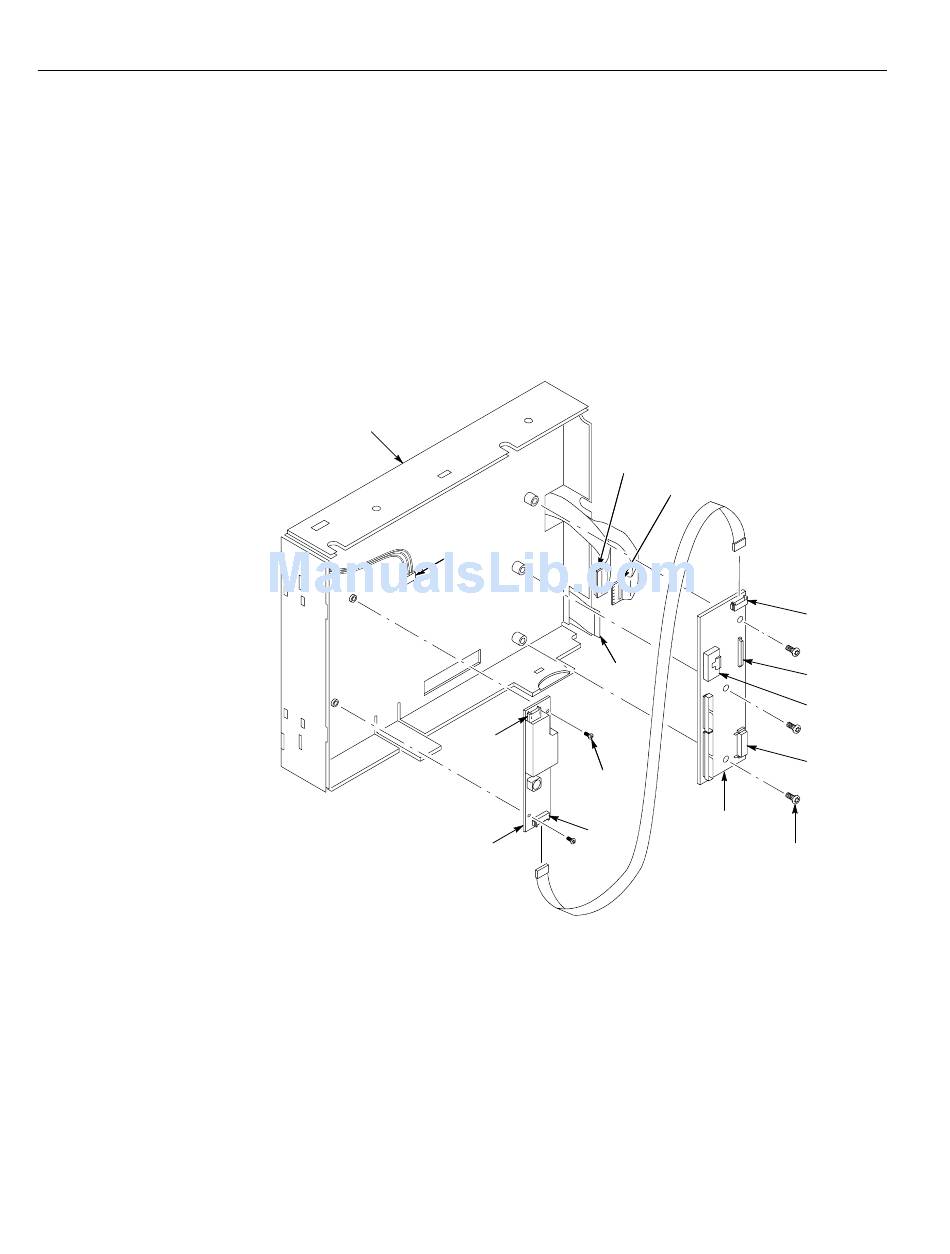

Figure 4- - 15: Display adaptor board removal
DSA8200 Digital Serial Analyzer and Modules Service Manual
To J4
To J7
CN2
Phillips
screw (2)
CN1
To J1
J6
J4
J1
J7
Display
adaptor
T--15
board
Torxdrive
screw (3)
