Low-Voltage Power Supply - Tektronix DSA8200 Service Manual

Low-Voltage Power
Supply
DSA8200 Digital Serial Analyzer and Modules Service Manual
To J291 extender cable
To J390 extender cable
Plastic cable retainers (2)

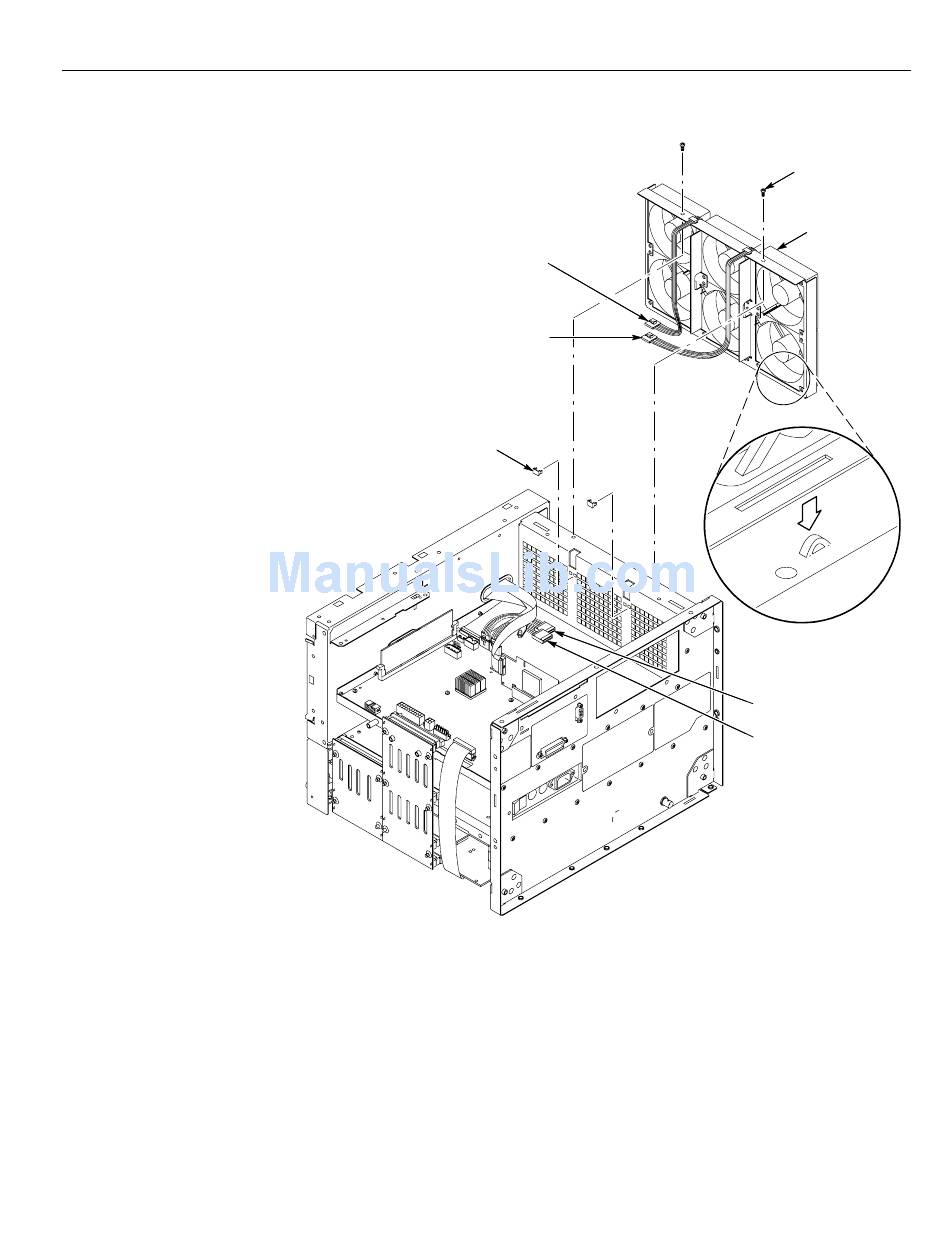

Figure 4- - 35: Fan assembly removal
1. Assemble equipment and locate modules to be removed: Locate the modules
to be removed in the locator diagram Internal Modules, Figure 4- -8,
page 4- -20. Additional modules to be removed:
Removal and Installation Procedures
T--15 Torxdrive
screw (2)
Fan assembly
J291 extender cable
J390 extender cable
4- - 59
