Figure 4- -19: Hard Drive Disk Removal - Tektronix DSA8200 Service Manual

DSA8200 Digital Serial Analyzer and Modules Service Manual

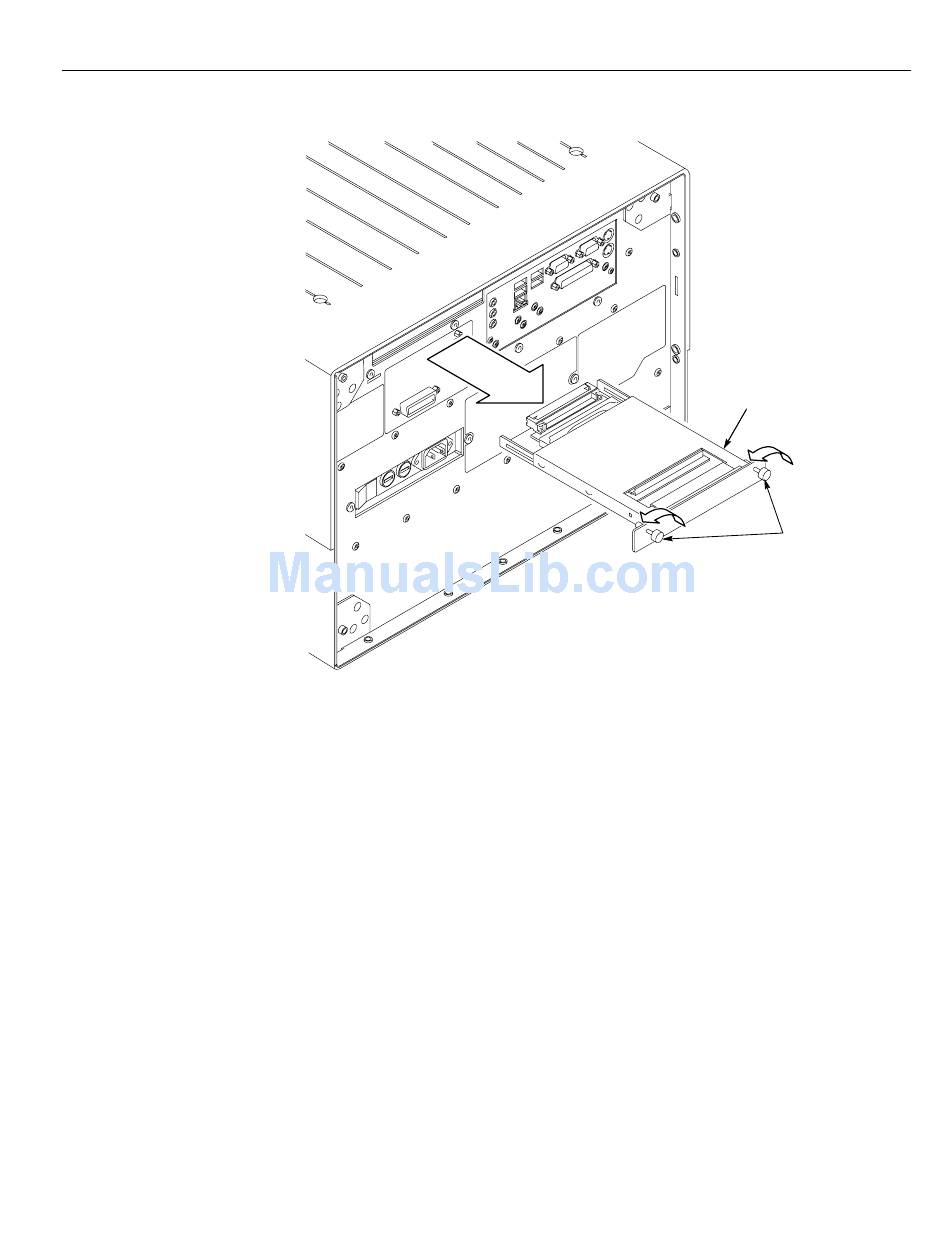

Figure 4- - 19: Hard drive disk removal
5. Remove the hard disk drive from the cartridge: See Figure 4- -20, page 4- -36
for instruments serial numbered B029999 and below. See Figure 4- -21,
page 4- -37 for instruments serial numbered B030000 and above.
a. Remove the four #0 Phillips screws that fasten the hard disk drive to the
cartridge.
b. Carefully remove the hard disk drive from the cartridge.
Removal and Installation Procedures
Hard disk drive assembly
(serial number B029999
and below is shown)
Thumbscrews
4- - 35
