Electrical Modules

DSA8200 Digital Serial Analyzer and Modules Service Manual
1. Orient the sampling module: Set the sampling module so its left side is down
on the work surface and its right side is facing you.
NOTE. The 80E07, 80E08, 80E09, and 80E10 Electrical Remote Sampling
modules need to have the entire module assembly returned to a Tektronix service
center.
CAUTION. Static discharge can damage any semiconductor in the instrument or
sampling module. Wear wrist and foot grounding straps while handling sampling
modules. Service should be performed in a static-free work station by a qualified
service technician. Minimize handling of static-sensitive components.
NOTE. Refer to the exploded views located in the Replaceable Parts chapter for
details of specific electrical modules assemblies.
2. Remove the cover: See Figure 4- -46, page 4- -75.
a. Remove the Phillips screws that secure the front panel to the cover.
Remove the front panel.
b. Remove the Phillips screws that secure the cover to the chassis and slide
the chassis out toward the rear of the cover.
Front panel

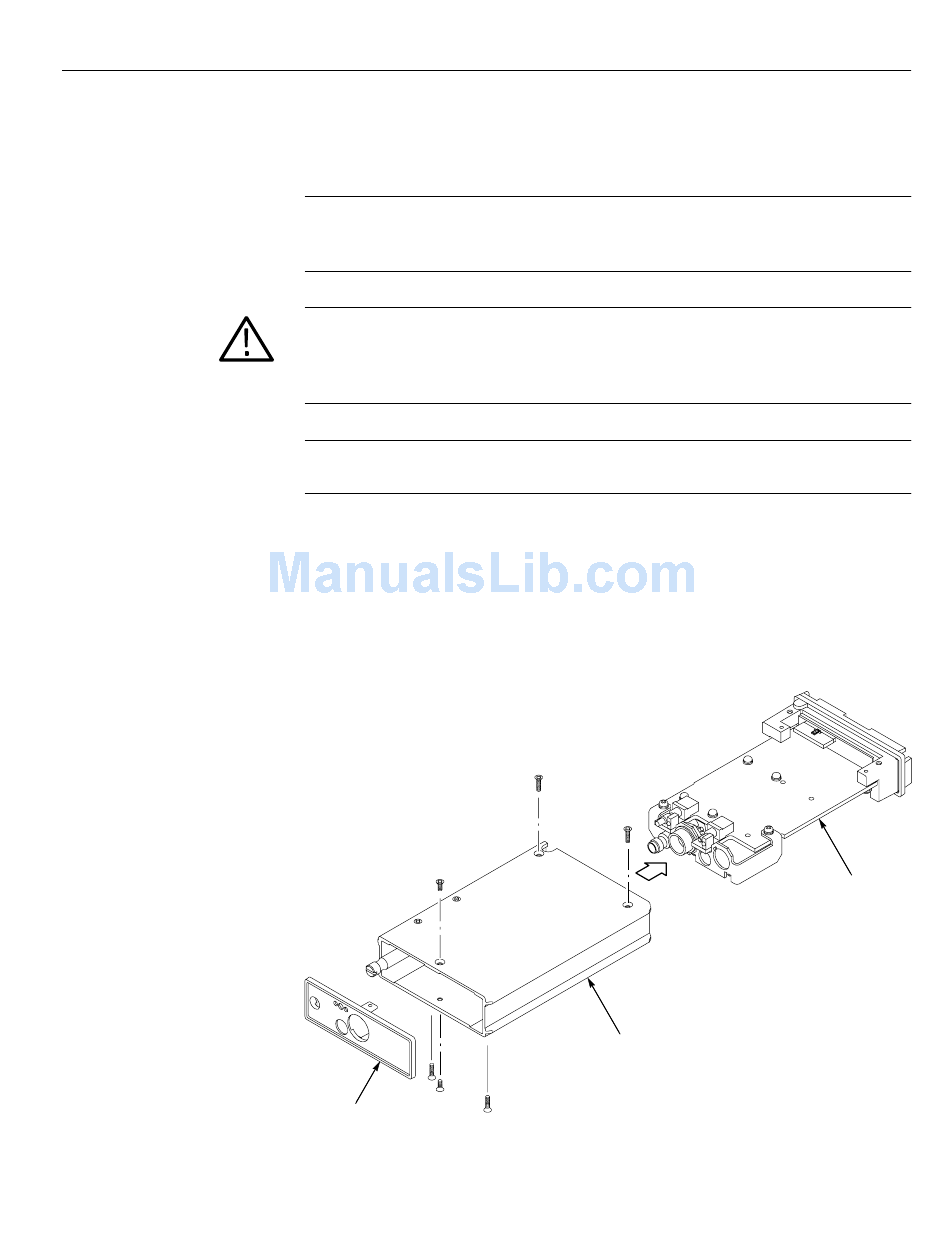

Figure 4- - 46: Sample of electrical module hardware removal
Removal and Installation Procedures
Cover
Chassis
4- - 75
