Removal and Installation Procedures
4- - 28
CAUTION. To avoid damage to the front panel Standby/On switch assembly, do
not set the Display module assembly on a work surface. Sliding the instrument
over the edge of the work surface could break off the Standby/On switch
assembly.
3. Remove the Display assembly: See Figure 4- -13, page 4- -28.
a. Remove the four T-15 Torxdrive screws that secure the Display assembly
to the chassis.
b. Grasp the top and bottom edges of the Display assembly and pull
forward far enough to allow access to the ribbon cable connector.
c. Disconnect the J2 and J3 ribbon cables from the display assembly.
Remove the display module assembly from the instrument. See Figure
4- -13, page 4- -28.
T-15 Torxdrive
screw (4)
J3 ribbon cable
J2 ribbon cable

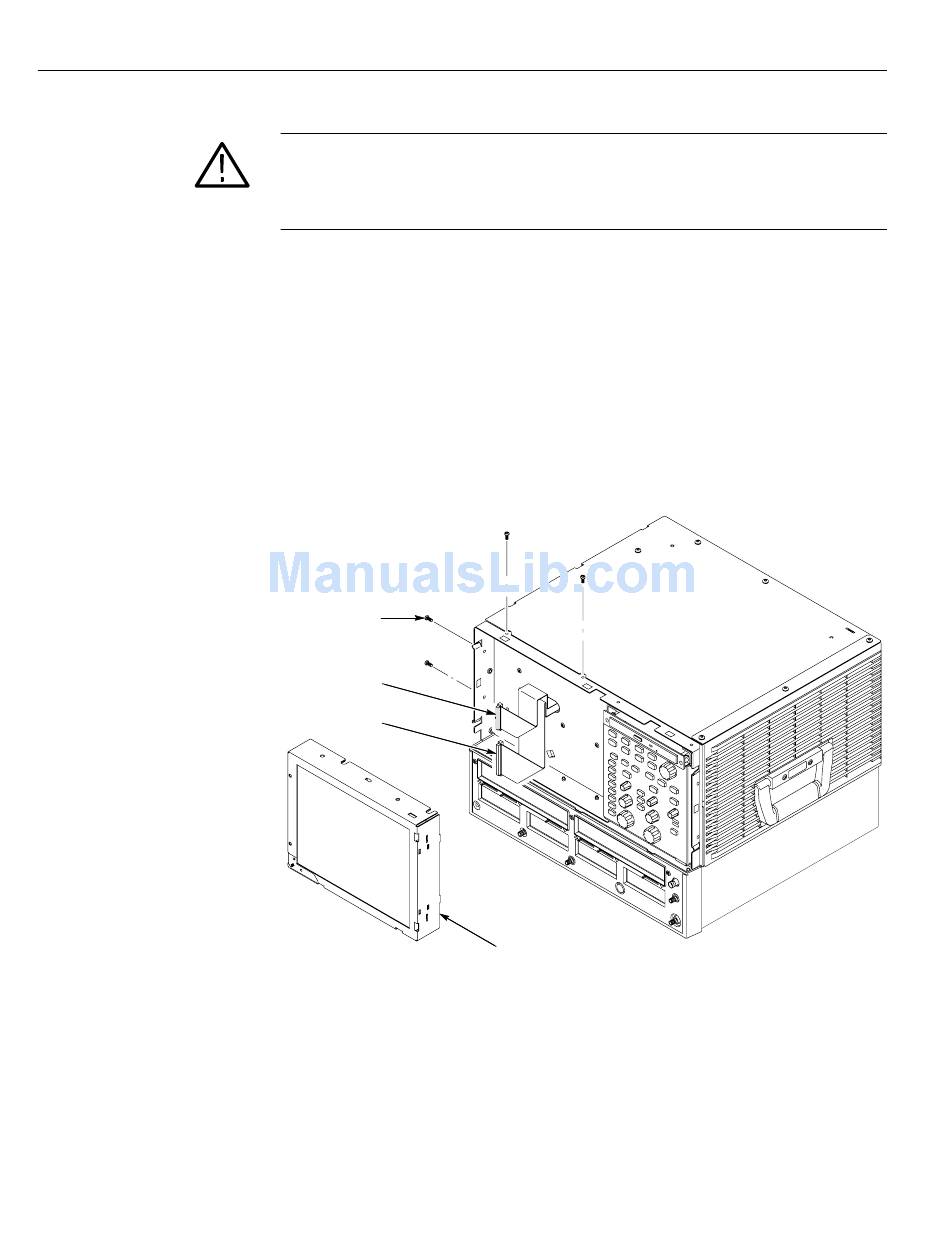

Figure 4- - 13: Display removal
4. Remove the Touch panel from the Display assembly: See Figures 4- -14
and 4- -15, pages 4- -29 and 4- -30.
DSA8200 Digital Serial Analyzer and Modules Service Manual
Display assembly
