B030000 And Above); Cd-Rw/Dvd Drive 4 - Tektronix DSA8200 Service Manual

CD-RW/DVD Drive
DSA8200 Digital Serial Analyzer and Modules Service Manual
Hard drive
Phillips screw (4)

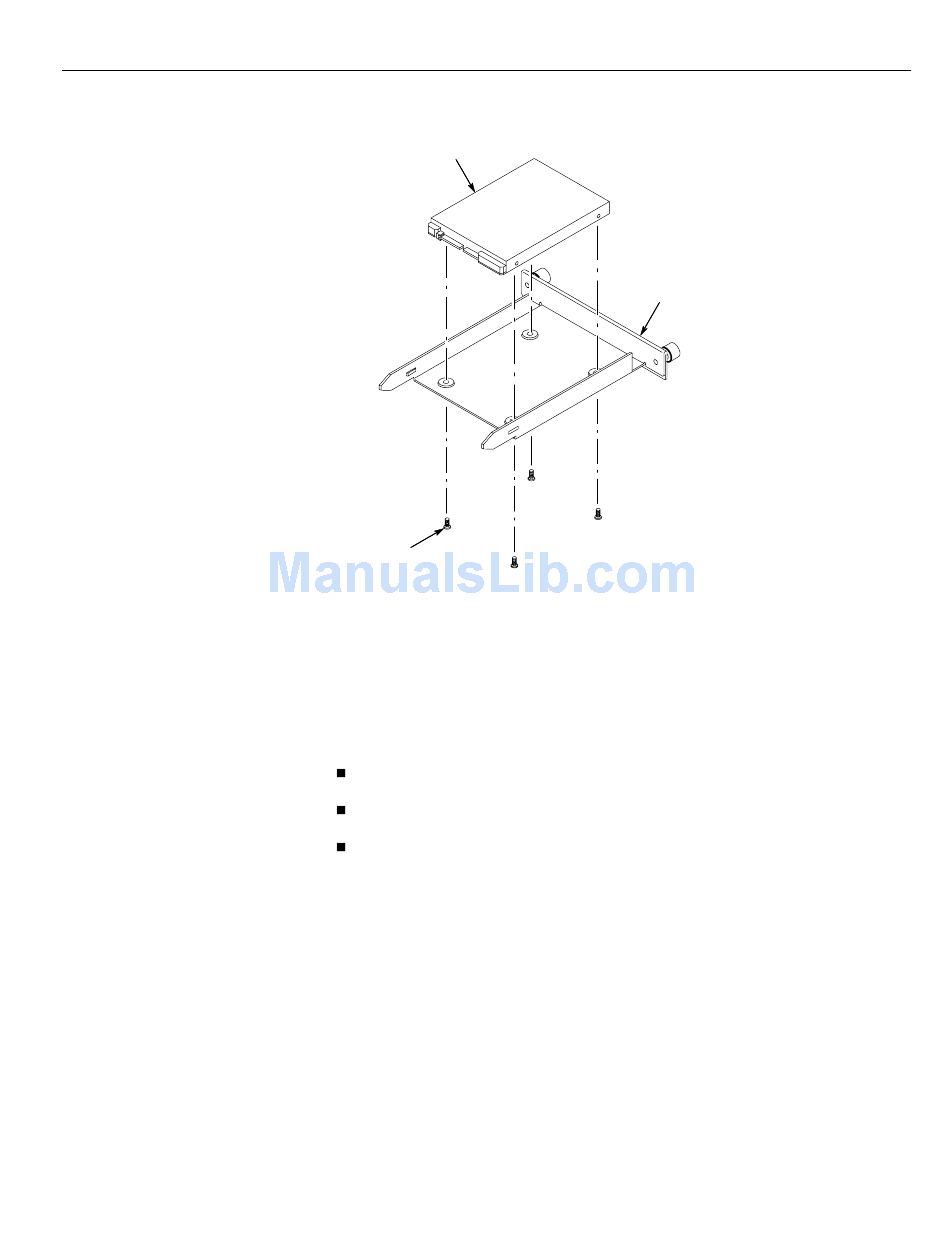

Figure 4- - 21: Removing the hard disk drive from the cartridge (serial number

B030000 and above)

1. Locate module to be removed: Locate the CD-RW/DVD drive in the locator
diagram Internal Modules, Figure 4- -8, page 4- -20. Additional modules to be
removed:
Trim (all)
Bottom cover
Left and Right covers
2. Orient the instrument: Set the instrument so its bottom is down on the work
surface and its front panel is facing you.
3. Remove the CD-RW/DVD drive trim. See Figure 4- -22, page 4- -38 for serial
numbered instruments B029999 and below. See Figure 4- -23, page 4- -39 for
serial numbered instruments B030000 and above. Remove the two Phillips
screws that hold the trim to the mounting frame and remove the trim.
4. Remove the CD-RW/DVD drive. See Figure 4- -22, page 4- -38.
a. Place one thumb on each side of the front of the CD-RW/DVD drive and
your forefingers on the back of the drive.
Removal and Installation Procedures
Hard drive chassis bottom
4- - 37
