Figure 6- 16 Replaceable Parts List
Fig. & index Tektronix part
number number
6- - 16- - 1 211- - 0088- - 00
- - 2 386- - 7293- - 00
- - 3 384- - 1838- - 00
- - 4 391- - 0239- - 00
- - 5 335- - 0370- - 00
- - 6 211- - 0087- - 00
- - 7 380- - 1171- - 00
- - 8 333- - 4476- - 00
- - 9 335- - 1036- - 00
- - 10 015- - 1022- - 01
10 9

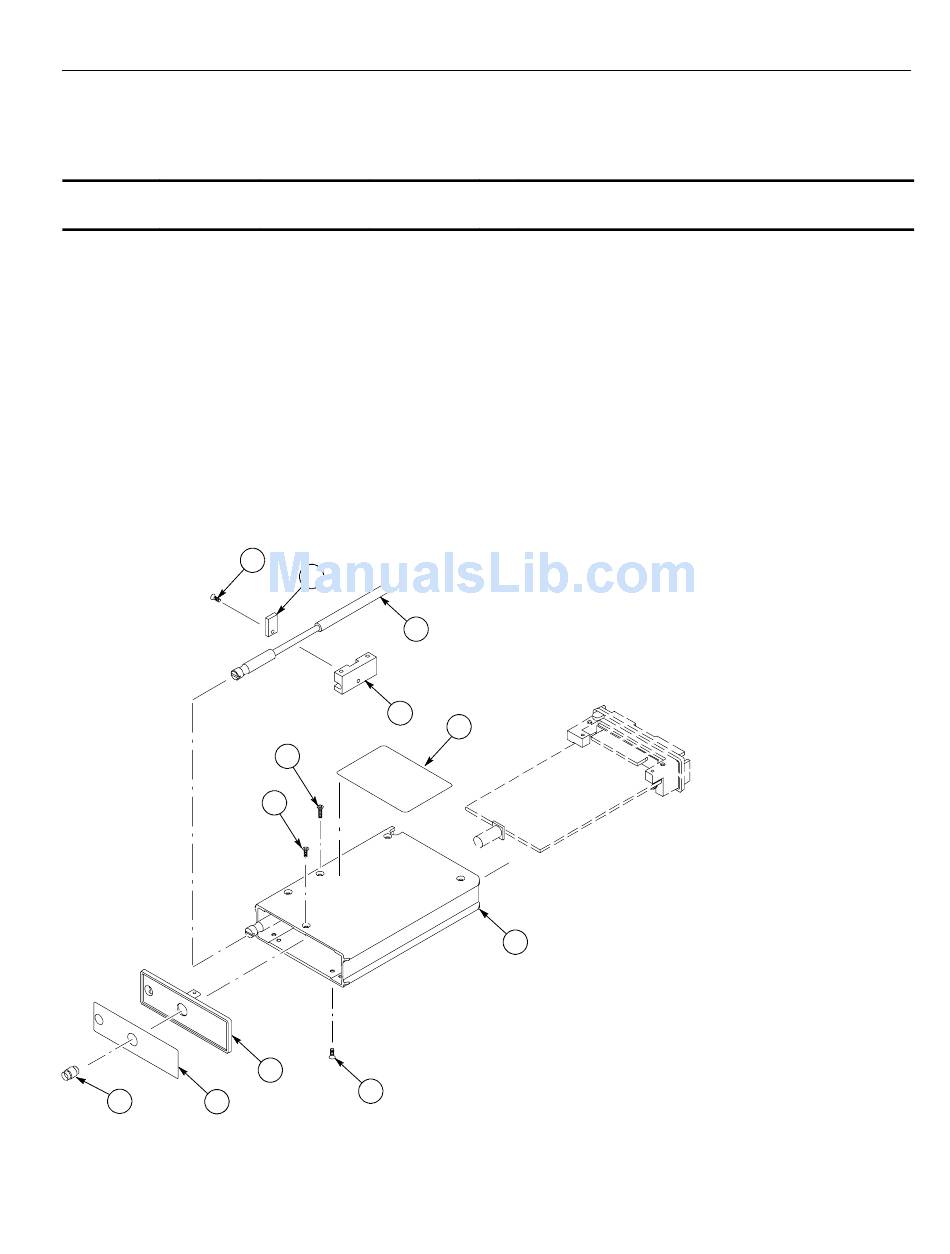

Figure 6- 16: 82A04 module
DSA8200 Digital Serial Analyzer and Modules Service Manual
Serial number Serial number
effective discont'd
1
2
3
4
1
6
8
6
Qty Name & description
8 SCREW,MACHINE:2- - 56 X 0.281,FLH,82 DEG,STL BK OXD,POZ
1 PLATE,FRICTION
1 SHAFT; SCREW LOCKDOWN, 303 SST, R05HDSCR
1 LOCK SCREW:MOUNTING BLOCK
1 MARKER,IDENT:ANTI- - STATIC LABEL,0.005 POLY
3 SCREW,MACHINE:2- - 56 X 0.188,FLH,82 DEG SST,POZ
1 HOUSING:SAMPLING HEAD,ALUMINUM, SAFETY CONTROLLED
1 PANEL,FRONT:PHASE REF MODULE
1 MARKER,IDENT:LABEL,MKD 82A04 PHASE REF MODULE,2.760 X
.810,LEXAN,
1 TERMINATOR:COAXIAL, 50 OHM, 0.5W, SMA
5
7
Replaceable Parts List
6- 29
