Removal and Installation Procedures
4- - 62
CAUTION. Do not interchange the small and large sampling module threaded
posts. The large slot sampling module threaded posts are single threaded posts
and the small slot sampling module posts are double threaded posts. Installing
the double threaded posts into the large module slot could damage the large
module connector.

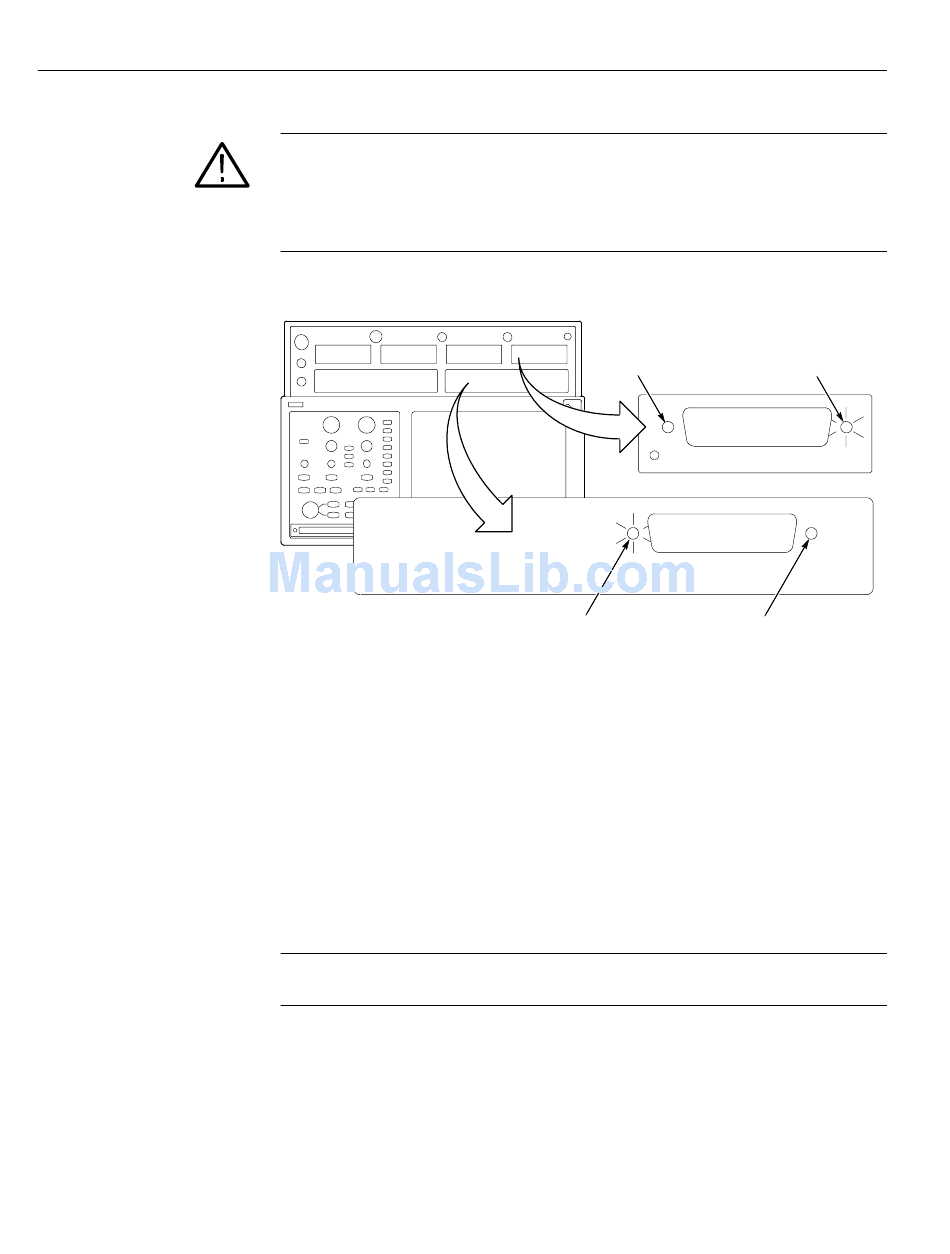

Figure 4- - 37: T-10 screws and threaded posts
g. Remove the four 3/16 inch hex threaded post from each small module
slot.
h. Remove the four T-10 Torxdrive screws from each small module slot.
i. Remove the Torxdrive screw retaining the circuitry thermal cover. Lift
the cover off and remove the 3/16 inch hex threaded post. See
Figure 4- -38, page 4- -63.
NOTE. When reinstalling the thermal cover, make sure that the cover sits in the
holding clips.
DSA8200 Digital Serial Analyzer and Modules Service Manual
T-10 Torxdrive
screw (4)
3
/ Inch hex single
16
threaded post (2)
3
/ Inch hex double
16
threaded post (4)
Small slot
Large slot
T-10 Torxdrive
screw (2)
